Service Data And Specifications (SDS)
›
Final Drive
›
Differential Side Gear Thrust Washers
Differential Side Gear Thrust Washers

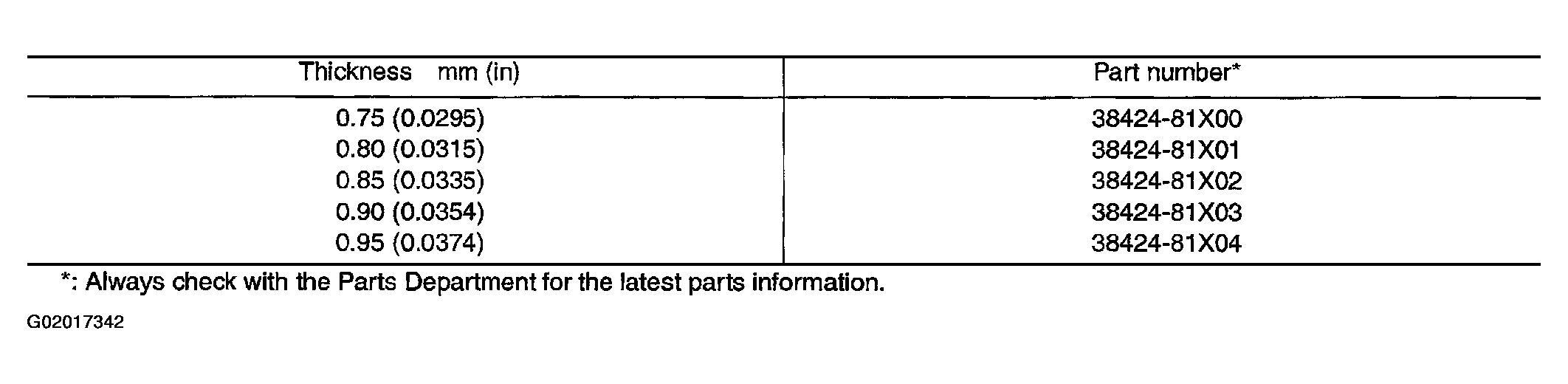

Fig 1: Differential Side Gear Thrust Washers Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
