Automatic Transmission Diagnosis - Re4F04 Series: Identification

Transaxle model number is located on vehicle identification plate in engine compartment area. On Altima and Sentra, transaxle serial number is located on transaxle case. On Maxima, I30 and I35, transaxle serial number is located on converter housing. On Quest, transaxle serial number is located on transaxle side cover. See Fig 1.

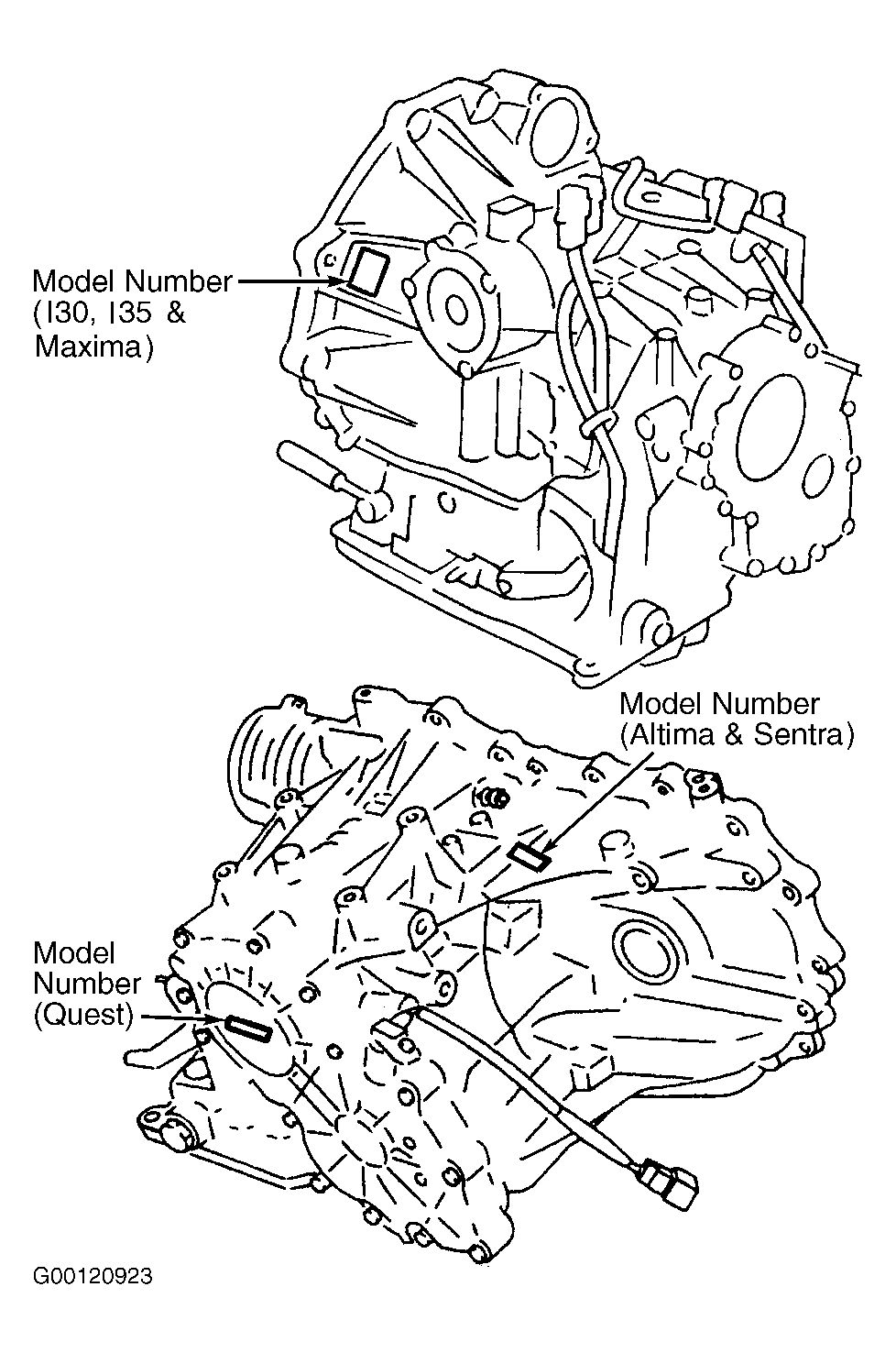

Fig 1: Locating Transaxle Model Number

Courtesy of NISSAN MOTOR CO., U.S.A.
