Section 11 (Automatic Transaxle Re4F03B)
›
Overall System
›
Hydraulic Control Circuit
Hydraulic Control Circuit
WARNING:
This page is about a different variant/trim than selected.

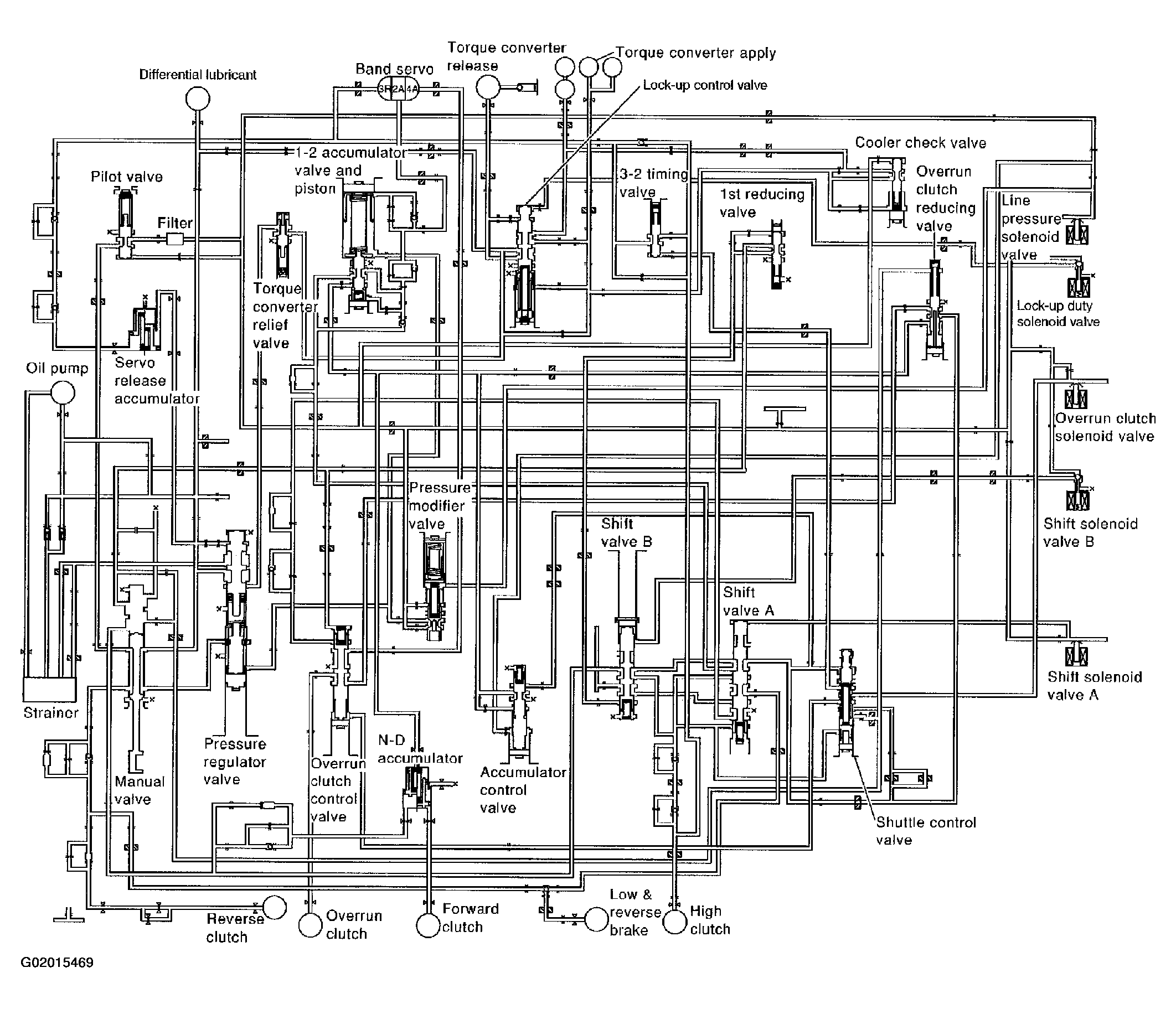

Fig 1: Diagraming RE4F03B Transaxle Hydraulic Control Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
