Front Wheel Bearing

Rotate wheel hub to check that wheel bearings operate smoothly.
Check axial end play.
1. Axial end play: 0.05 mm (0.0020 in) or less
If out of specification or wheel bearing does not turn smoothly, replace wheel bearing assembly.

Refer to " WHEEL HUB AND KNUCKLE ".

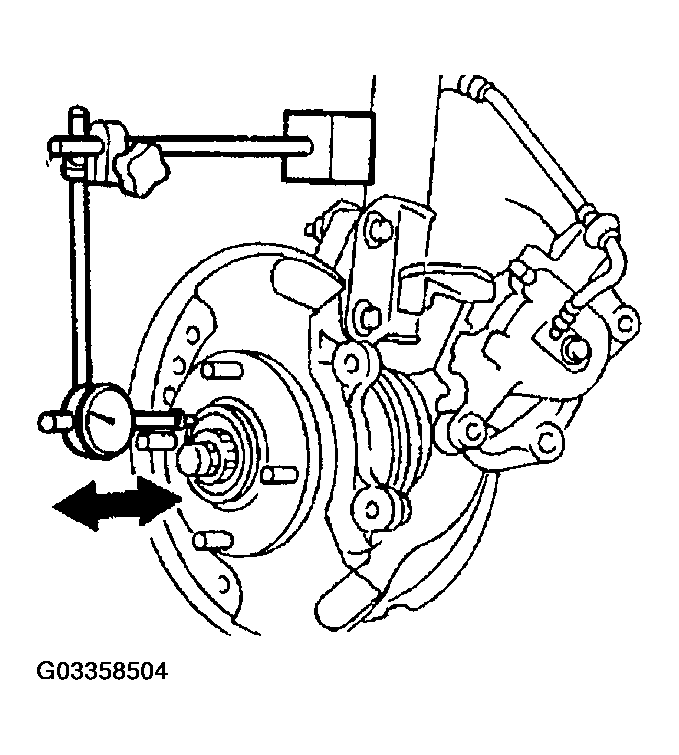

Fig 1: Checking Wheel Bearings Operate
Courtesy of NISSAN MOTOR CO., U.S.A.
