Door Mirror Remote Control Switch Ground Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH (CHANGEOVER SWITCH)

Turn ignition switch OFF.
Disconnect door mirror remote control switch.

Check continuity between door mirror remote control switch as follows.

CONTINUITY CHECK CHART

Terminals		Condition	Continuity
5	7	Changeover switch RIGHT position	Yes
5		Changeover switch neutral position	No
6		Changeover switch LEFT position	Yes
6		Changeover switch neutral position	No

OK or NG

OK: Check the condition of the harness and the connector.
NG: Replace door mirror remote control switch.

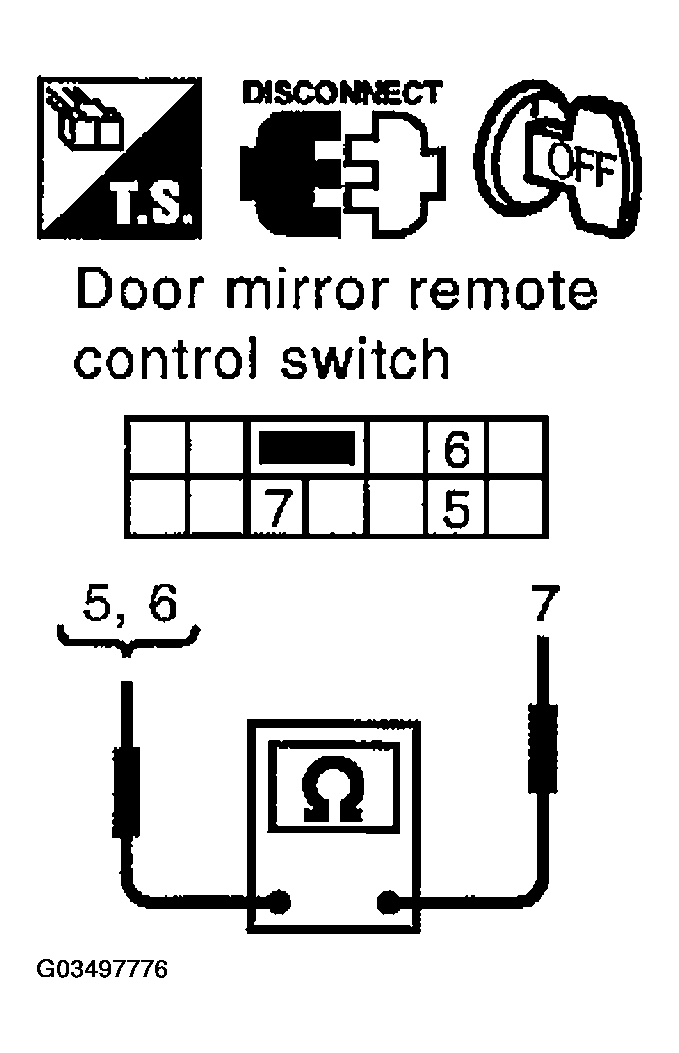

Fig 1: Checking Continuity Between Door Mirror Remote Control Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT
Check continuity between door mirror remote control switch connector M66 terminal 7 (B) and ground.

7 (B) - Ground: Continuity should exist.

OK or NG
1. OK: GO TO 2.
2. NG: Repair or replace harness between door mirror remote control switch and ground.

  Fig 2: Checking Continuity Between Door Mirror Remote Control Switch Connector M66 Terminal 7 (B) And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
