Removal and Installation of GPS Antenna: Removal

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove center console. Refer to "CENTER CONSOLE ASSEMBLY ".
  3. Remove console cover (LH). Refer to "CENTER CONSOLE ASSEMBLY ".
  4. Remove display. Refer to "REMOVAL AND INSTALLATION OF DISPLAY  ".
  5. Disengaged the clips (4) to separate antenna feeder.

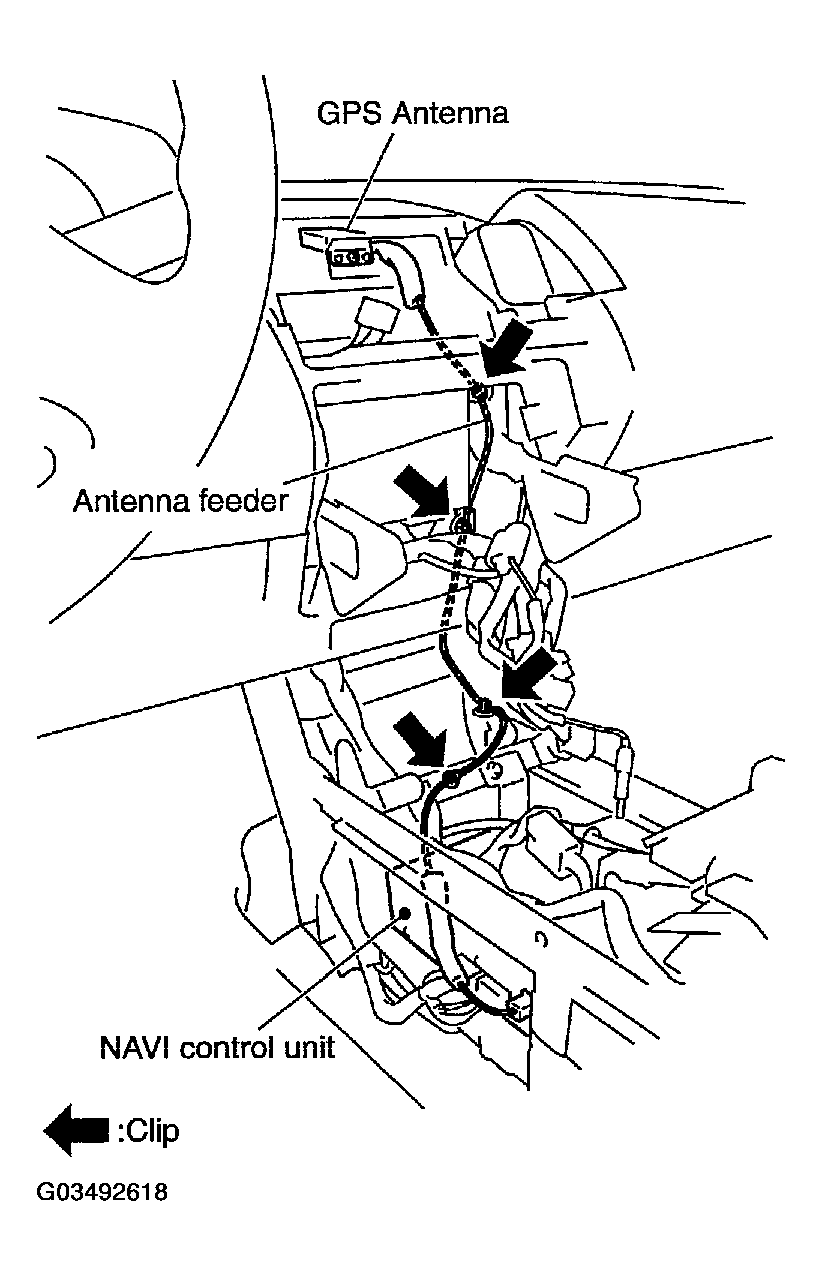

    Fig 1: Identifying Antenna Feeder
    G03492618Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove screw and remove GPS antenna.

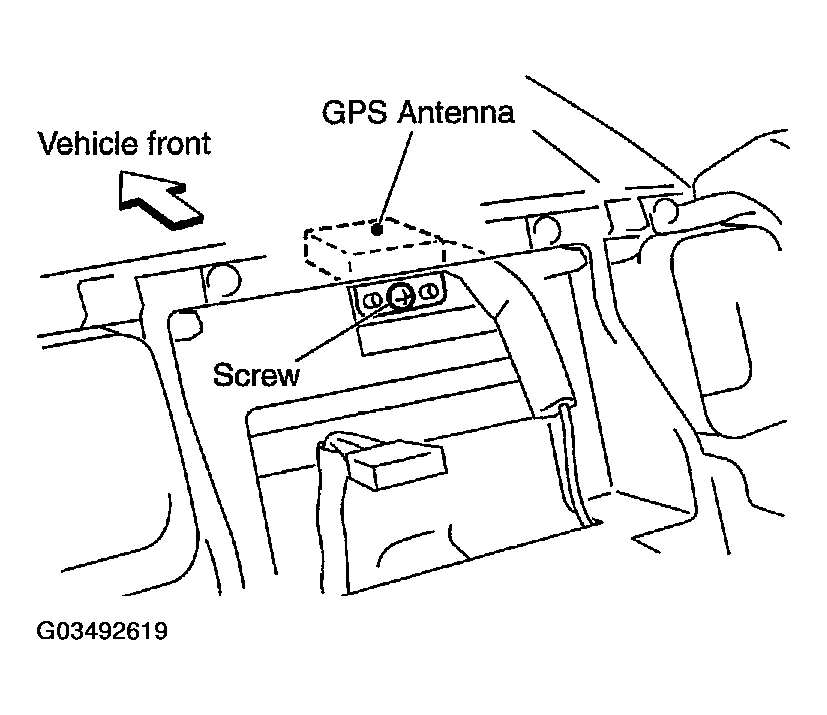

    Fig 2: Identifying GPS Antenna And Screw
    G03492619Courtesy of NISSAN MOTOR CO., U.S.A.
