Removal and Installation: Notes

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

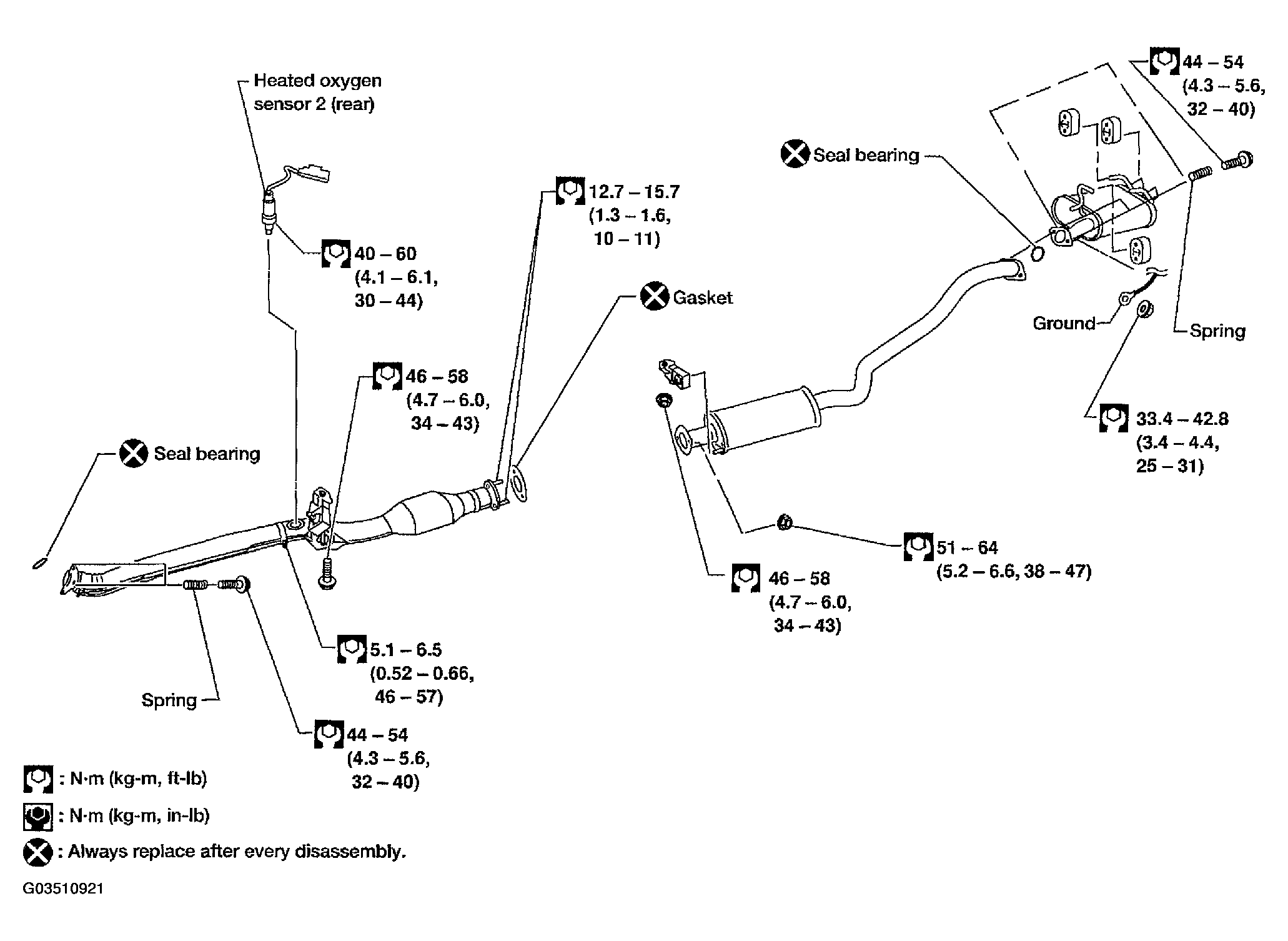

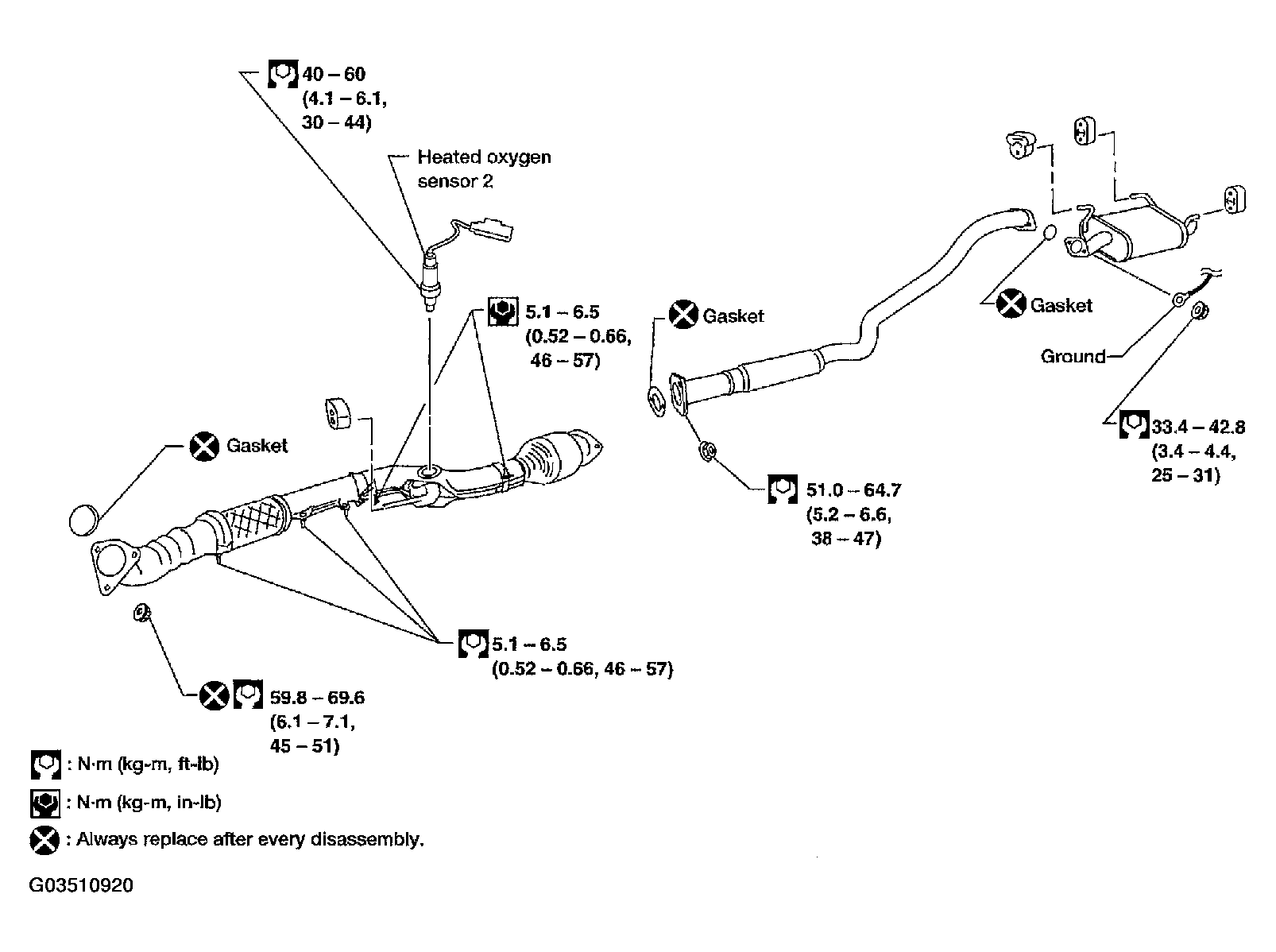

Refer to the following figures. See Figure and Figure .
