Section 1443 (Automatic Transmission): Disassembly: Disassembly

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not disassemble parts behind Drum Support. Refer to " CROSS-SECTIONAL VIEW ".

Drain ATF through drain plug.

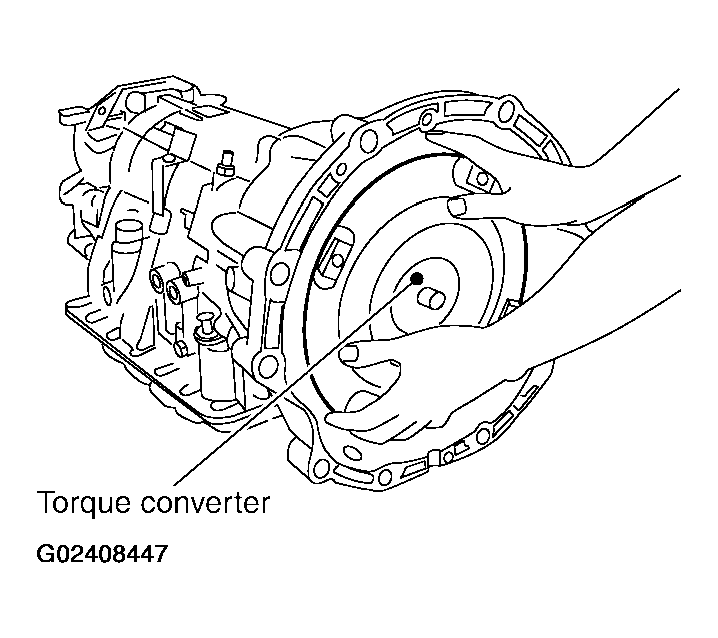

Remove torque converter by holding it firmly and turning while pulling straight out.

Fig 1: Removing Torque Converter
Courtesy of NISSAN MOTOR CO., U.S.A.

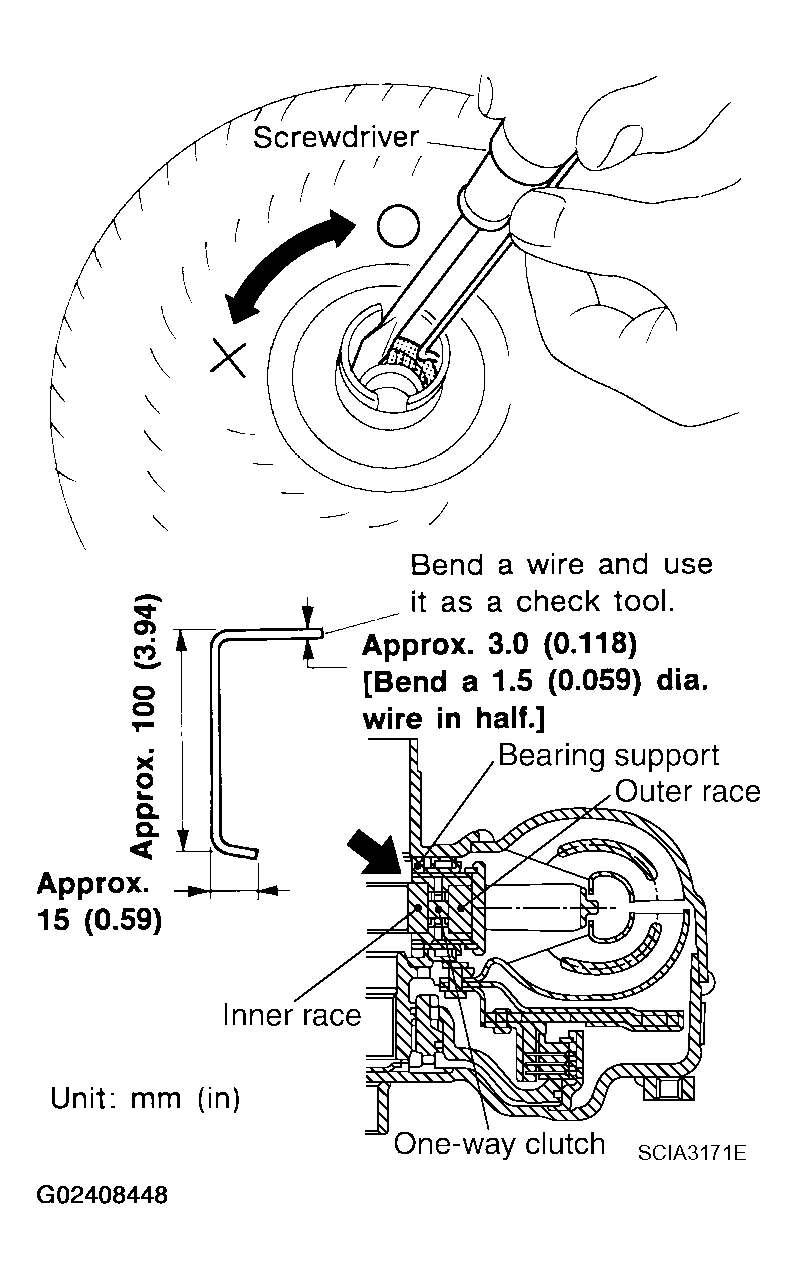

Check torque converter one-way clutch using check tool as shown at figure.
1. Insert check tool into the groove of bearing support built into one-way clutch outer race.
2. When fixing bearing support with check tool, rotate one-way clutch spline using screwdriver.
3. Check that inner race rotates clockwise only. If not, replace torque converter assembly.
Fig 2: Checking Torque Converter One-Way Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove converter housing from transmission case.
CAUTION: Be careful not to scratch converter housing.

Fig 3: Removing Converter Housing From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

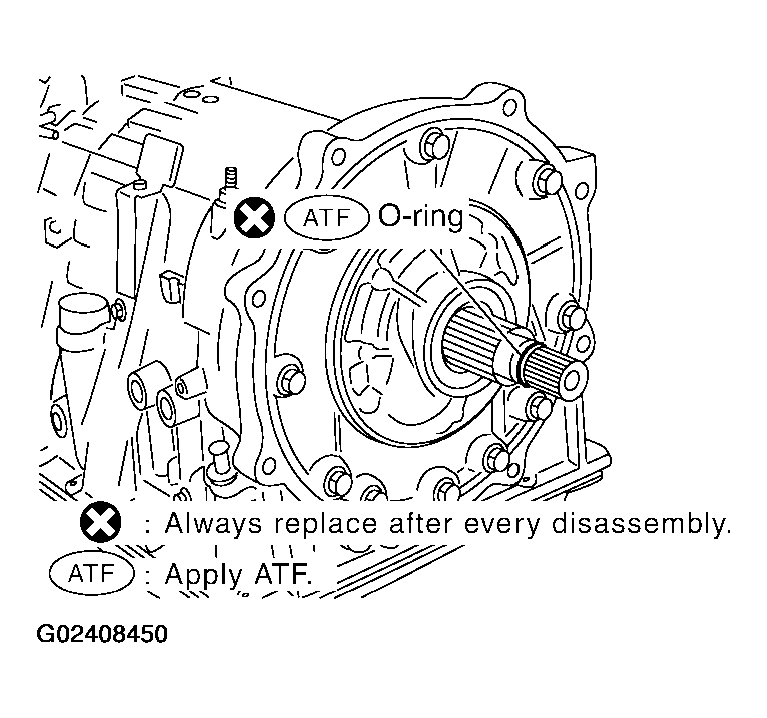

Remove O-ring from input clutch assembly.

Fig 4: Removing O-Ring From Input Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

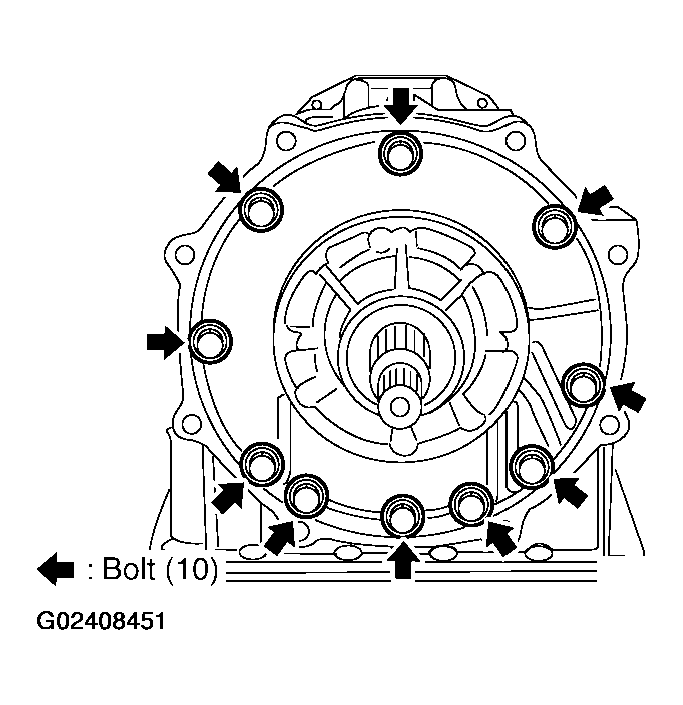

Remove tightening bolts for oil pump assembly and transmission case.

Fig 5: Removing Oil Pump Assembly And Transmission Case Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

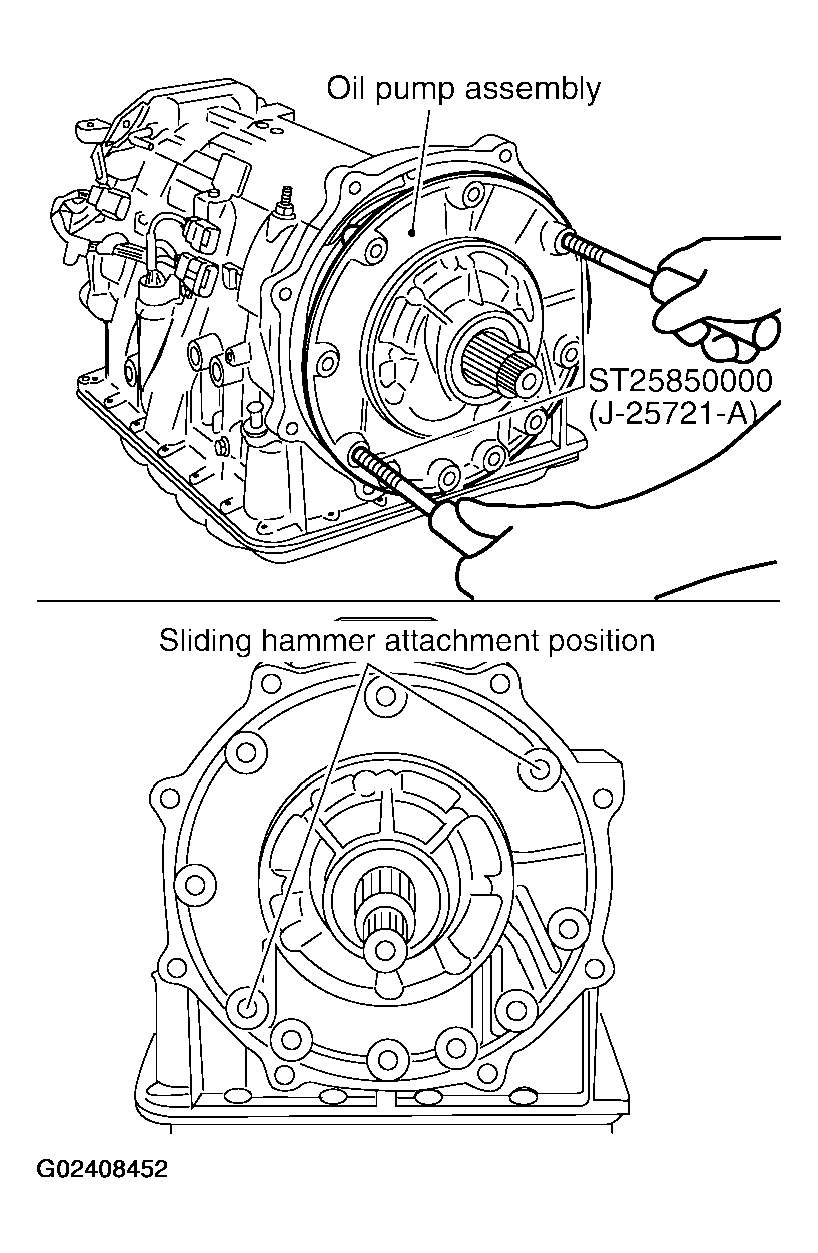

Attach the sliding hammers to oil pump assembly and extract it evenly from transmission case.
CAUTION:
- Fully tighten sliding hammer screw.
- Make sure that bearing race is installed to the oil pump assembly edge surface.
Fig 6: Removing Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

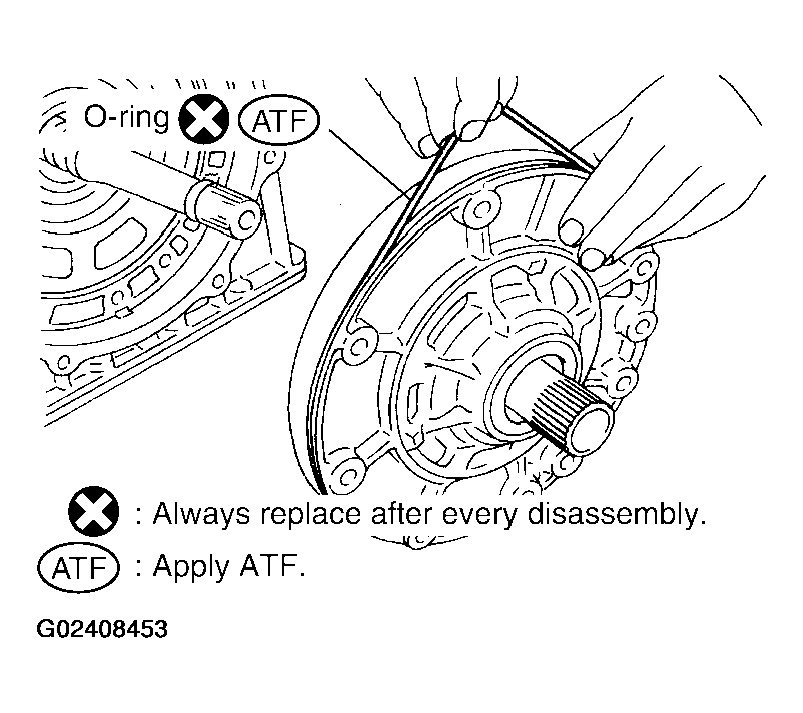

Remove O-ring from oil pump assembly.

Fig 7: Removing O-Ring From Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

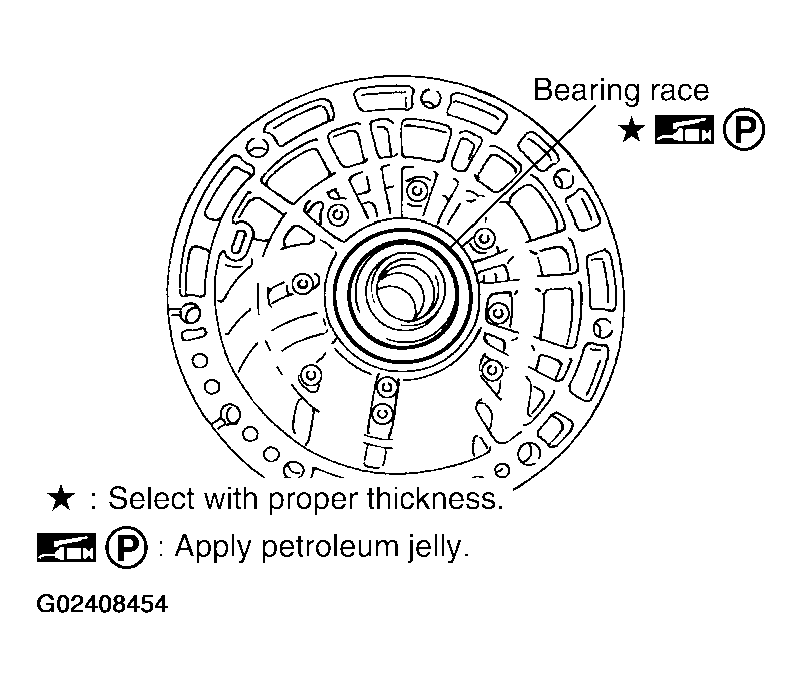

Remove bearing race from oil pump assembly.

Fig 8: Removing Bearing Race From Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from front sun gear.

Fig 9: Removing Needle Bearing From Front Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

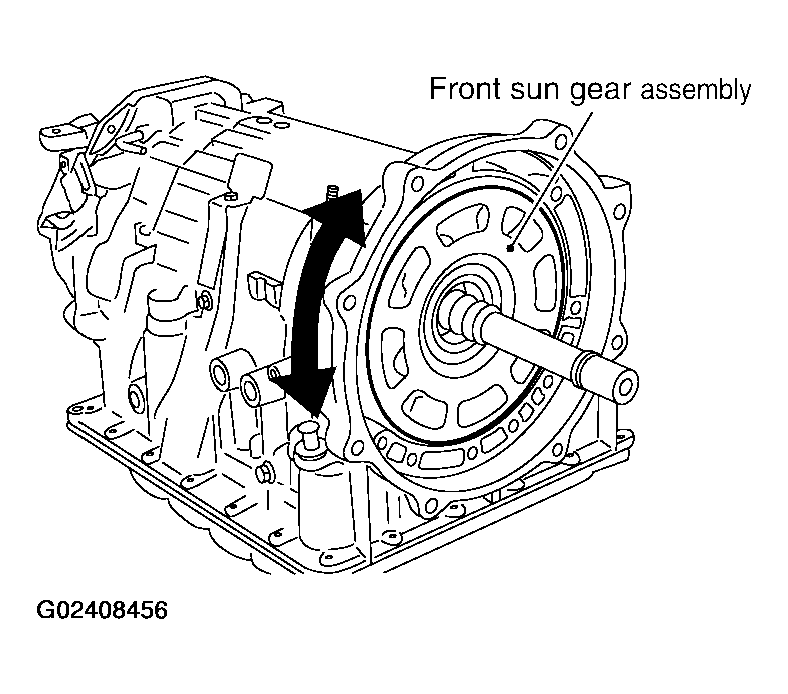

Remove front sun gear assembly from front carrier assembly.
NOTE: Remove front sun gear by rotating left/right.

Fig 10: Removing Front Sun Gear Assembly From Front Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove seal rings from input clutch assembly.

Fig 11: Removing Seal Rings From Input Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

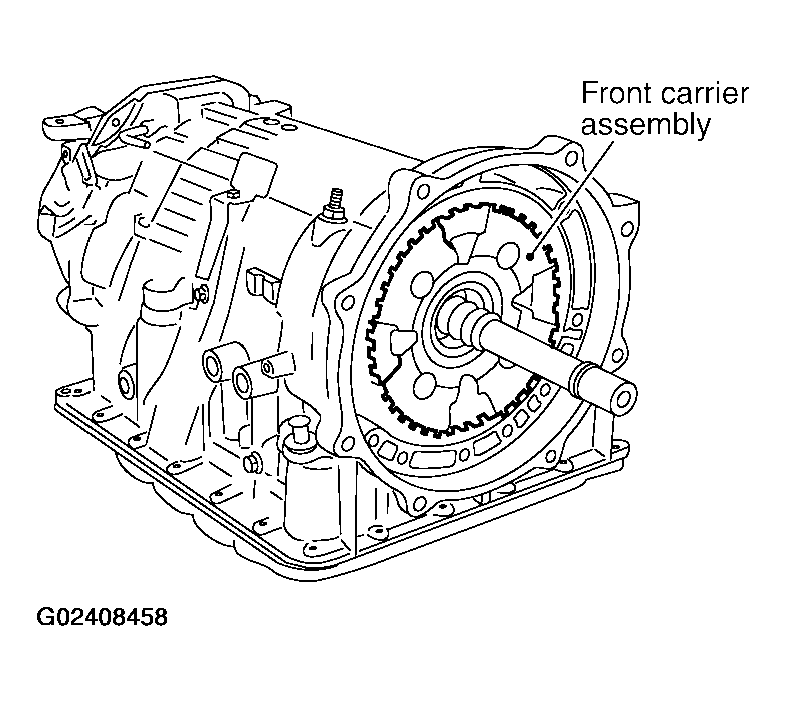

Remove front carrier assembly from rear carrier assembly. (With input clutch assembly and rear internal gear.)
CAUTION: Be careful to remove it with needle bearing.

Fig 12: Removing Front Carrier Assembly From Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

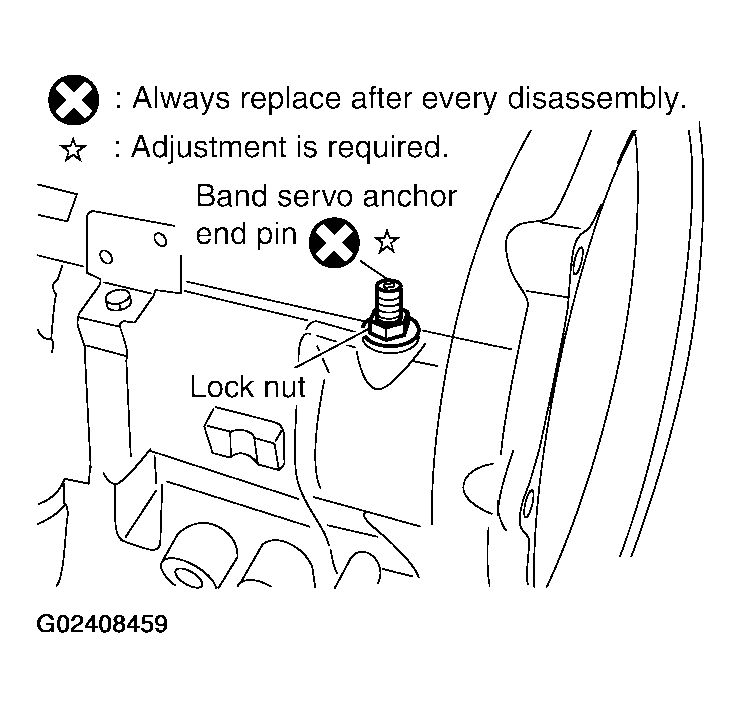

Loosen lock nut and remove band servo anchor end pin from transmission case.

Fig 13: Removing Band Servo Anchor End Pin From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

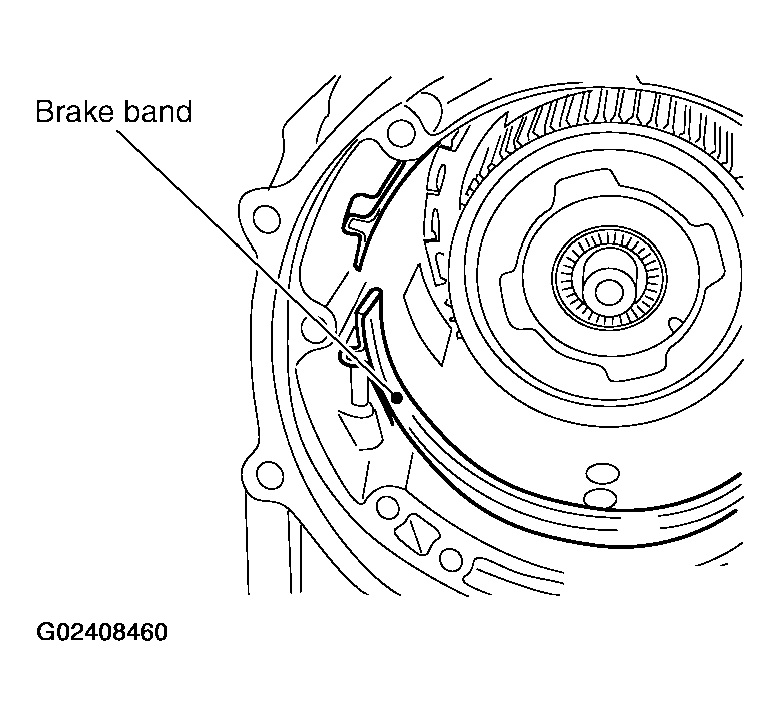

Remove brake band from transmission case.

Fig 14: Removing Brake Band From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
- To prevent brake linings from cracking or peeling, do not stretch the flexible band unnecessarily. When removing the brake band, always secure it with a clip as shown in the figure at right.
  Leave the clip in position after removing the brake band.
- Check brake band facing for damage, cracks, wear or burns.
Fig 15: Securing Brake Band With Clip
Courtesy of NISSAN MOTOR CO., U.S.A.

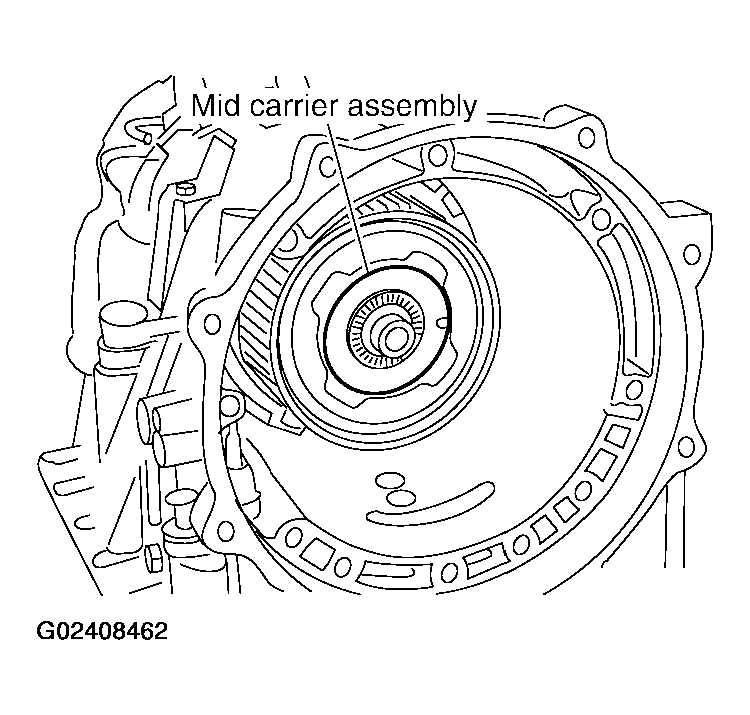

Remove mid carrier assembly and rear carrier assembly as a unit.

Fig 16: Removing Mid Carrier Assembly & Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

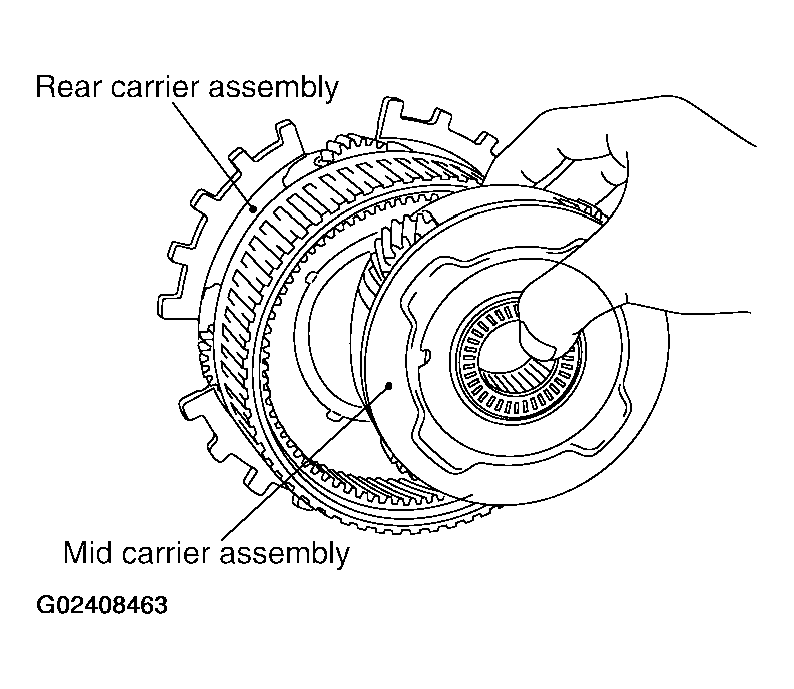

Remove mid carrier assembly from rear carrier assembly.

Fig 17: Removing Mid Carrier Assembly From Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

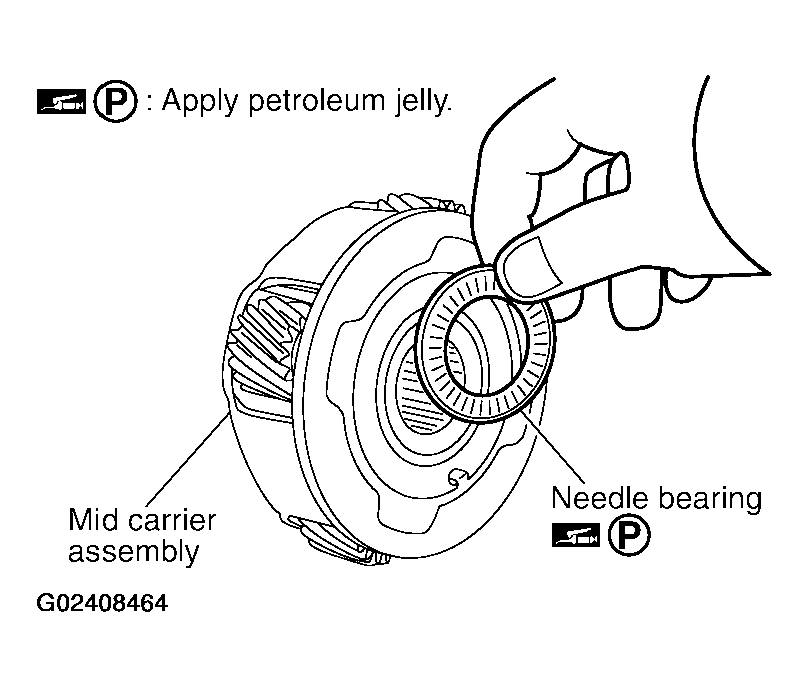

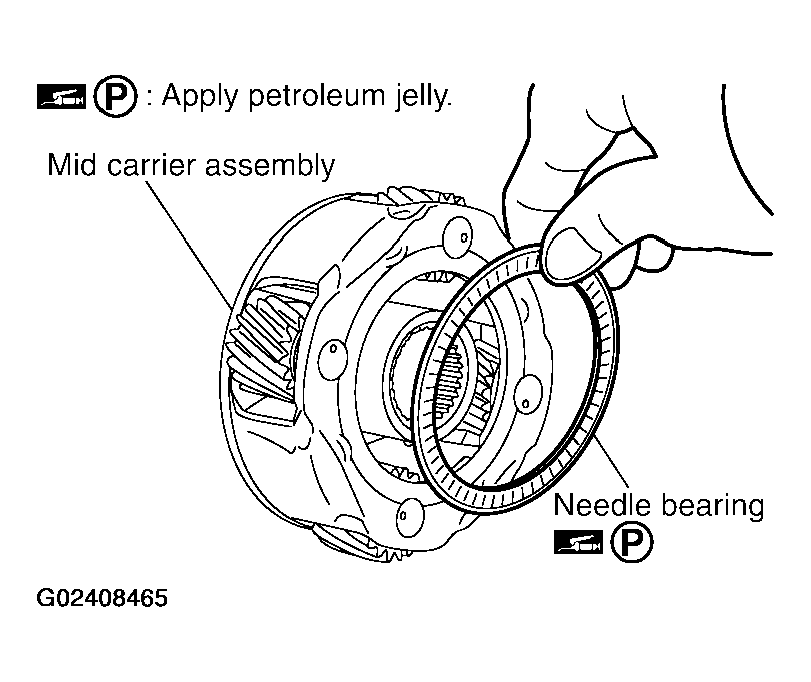

Remove needle bearing (front side) from mid carrier assembly.

Fig 18: Removing Needle Bearing (Front Side) From Mid Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing (rear side) from mid carrier assembly.

Fig 19: Removing Needle Bearing (Rear Side) From Mid Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

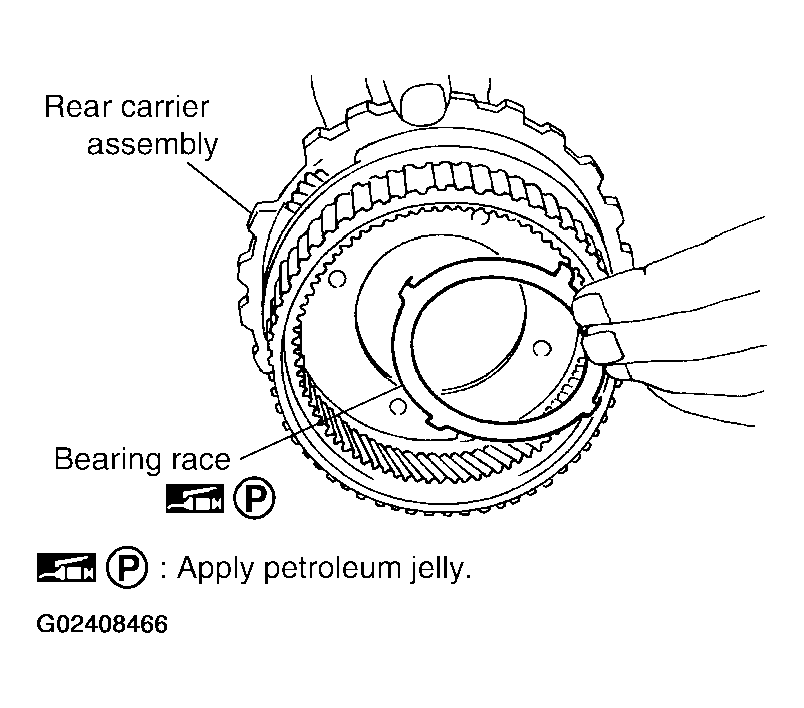

Remove bearing race from rear carrier assembly.

Fig 20: Removing Bearing Race From Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

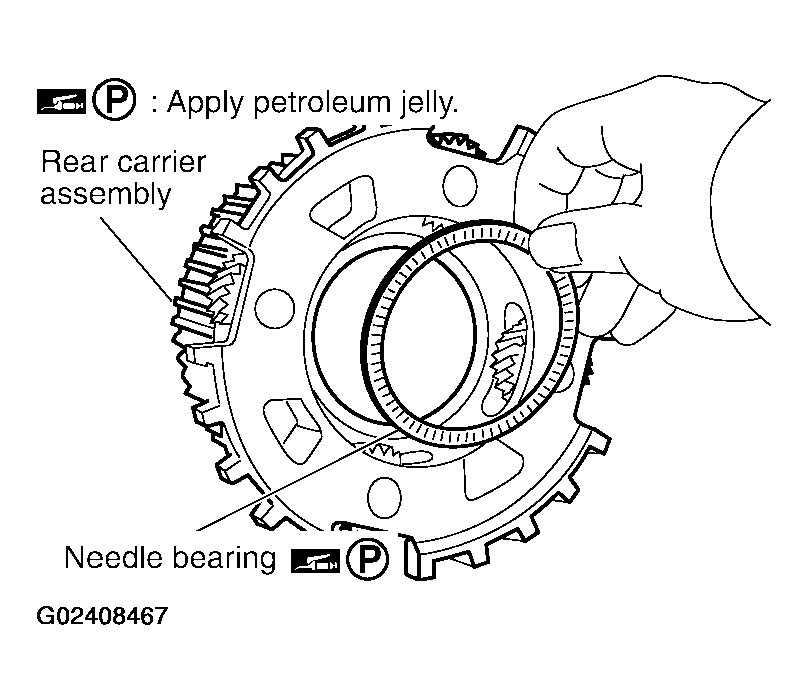

Remove needle bearing from rear carrier assembly.

Fig 21: Removing Needle Bearing From Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

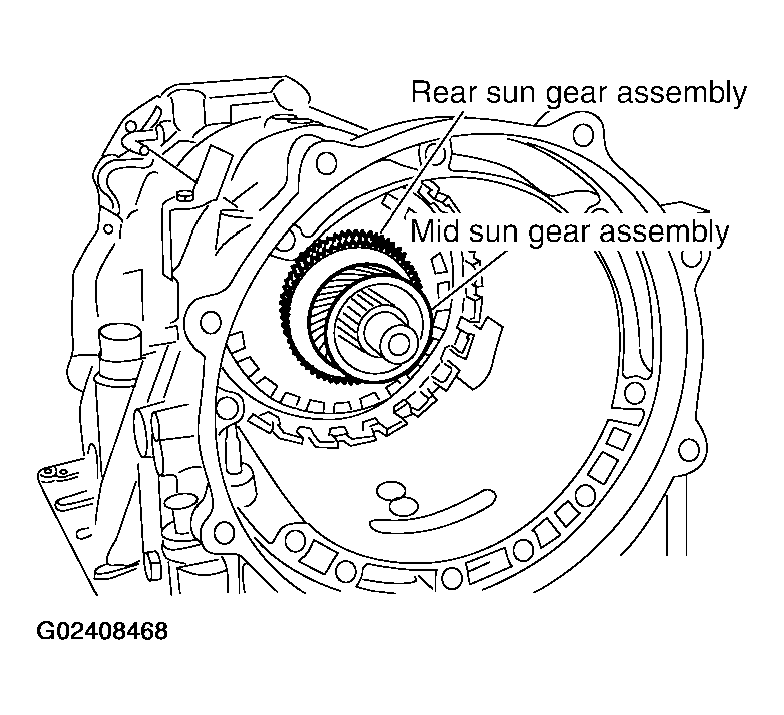

Remove mid sun gear assembly, rear sun gear assembly and high and low reverse clutch hub as a unit.
CAUTION: Be careful to remove then with bearing race and needle bearing.

Fig 22: Removing Mid Sun Gear Assembly, Rear Sun Gear Assembly And High & Low Reverse Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.

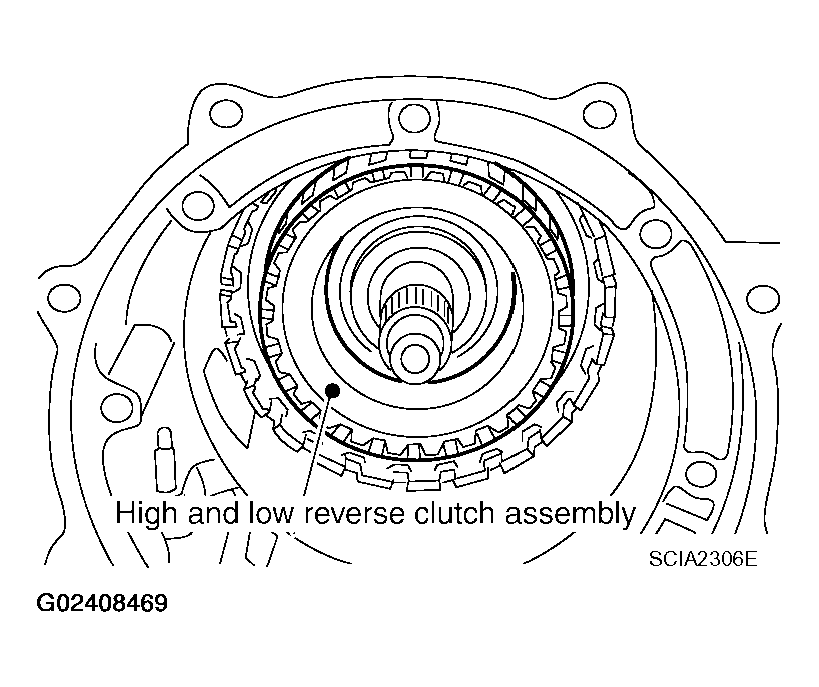

Remove high and low reverse clutch assembly from direct clutch assembly.
CAUTION: Make sure that needle bearing is installed to the high and low reverse clutch assembly edge surface.

Fig 23: Removing High & Low Reverse Clutch Assembly From Direct Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

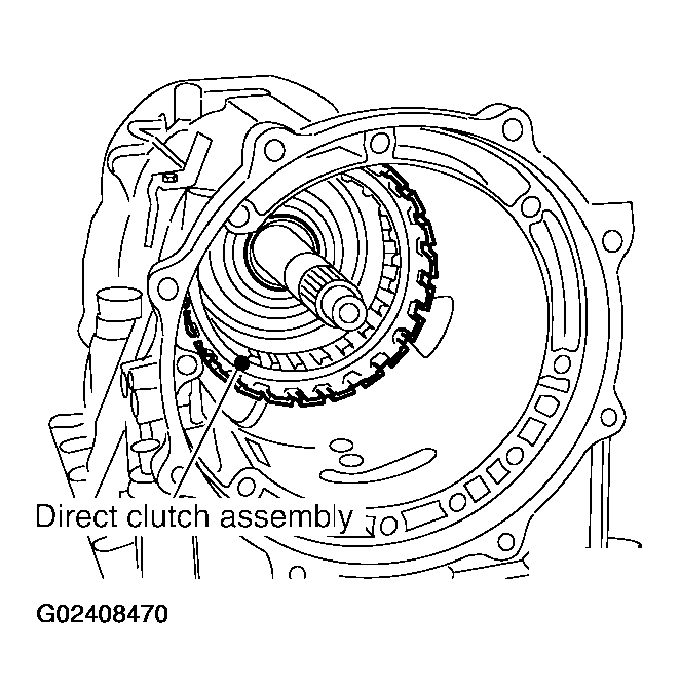

Remove direct clutch assembly from reverse brake.

Fig 24: Removing Direct Clutch Assembly From Reverse Brake
Courtesy of NISSAN MOTOR CO., U.S.A.

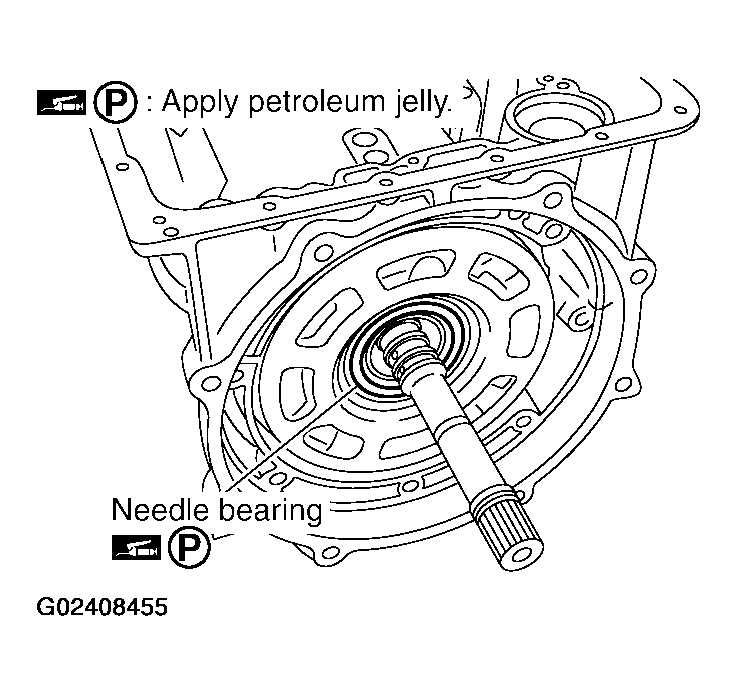

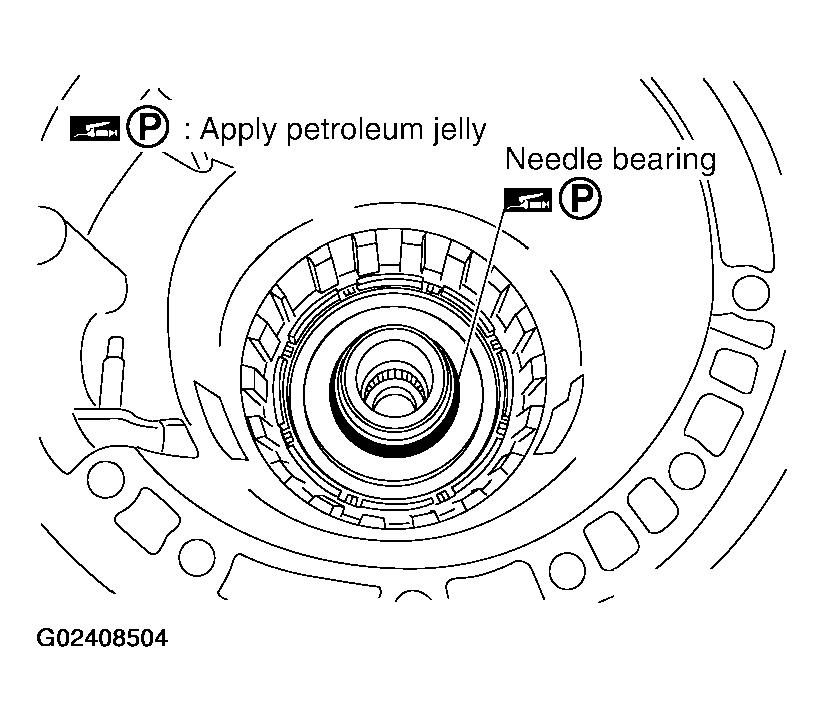

Remove needle bearing from drum support.

Fig 25: Removing Needle Bearing From Drum Support
Courtesy of NISSAN MOTOR CO., U.S.A.

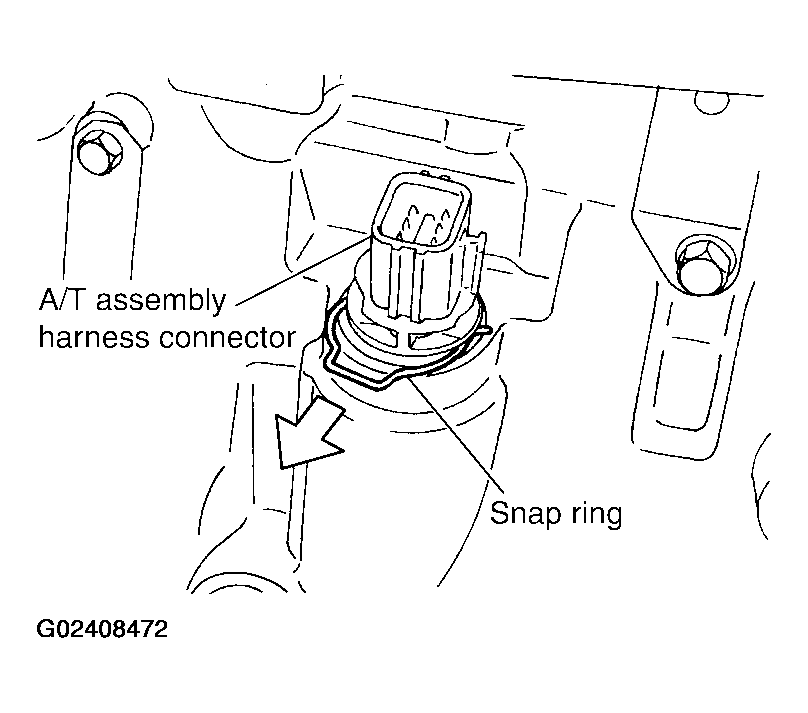

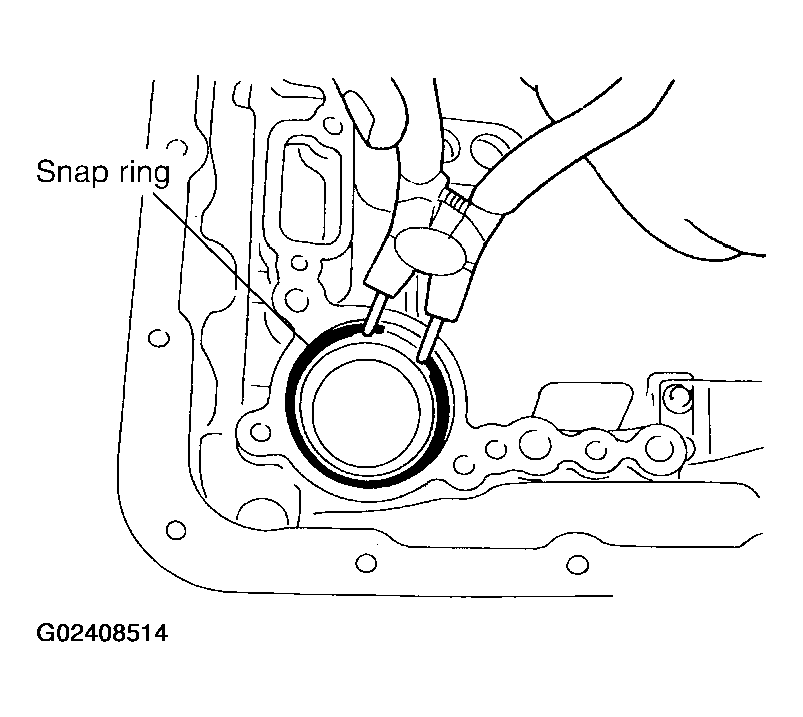

Remove snap ring from A/T assembly harness connector.

Fig 26: Removing Snap Ring From A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Push A/T assembly harness connector.
CAUTION: Be careful not to damage connector.

Fig 27: Pushing A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pan and oil pan gasket.

Fig 28: Removing Oil Pan & Oil Pan Gasket
Courtesy of NISSAN MOTOR CO., U.S.A.
Check foreign materials in oil pan to help determine causes of malfunction. If the A/T fluid is very dark, smells burned, or contains foreign particles, the frictional material (clutches, band) may need replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves, servo, and clutches to stick and can inhibit pump pressure.
- If frictional material is detected, perform A/T fluid cooler cleaning. Refer to " A/T FLUID COOLER CLEANING ".
Fig 29: Removing Foreign Materials In Oil Pan
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove magnets from oil pan.

Fig 30: Removing Magnets From Oil Pan
Courtesy of NISSAN MOTOR CO., U.S.A.

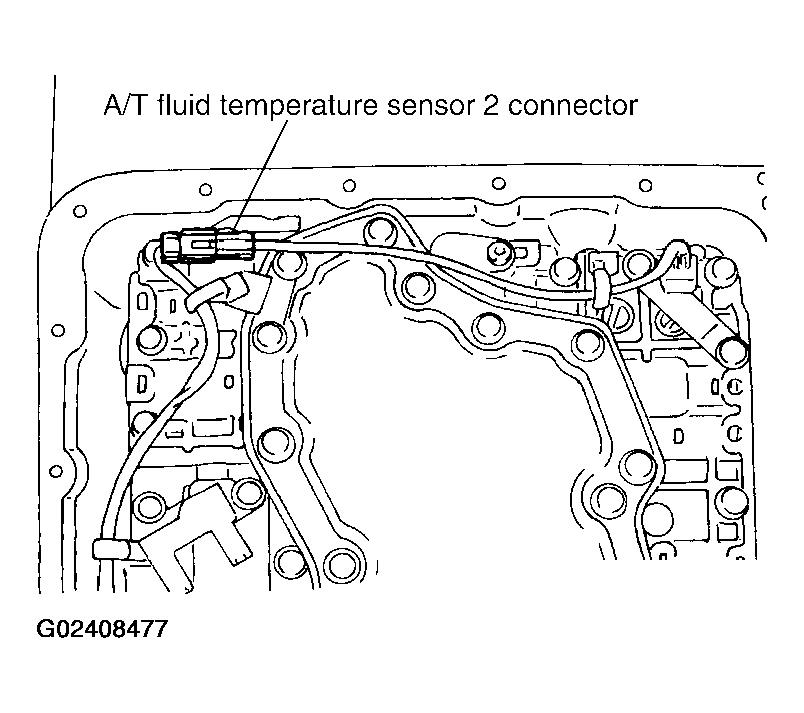

Disconnect A/T fluid temperature sensor 2 connector.
CAUTION: Be careful not to damage connector.

Fig 31: Disconnecting A/T Fluid Temperature Sensor 2 Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

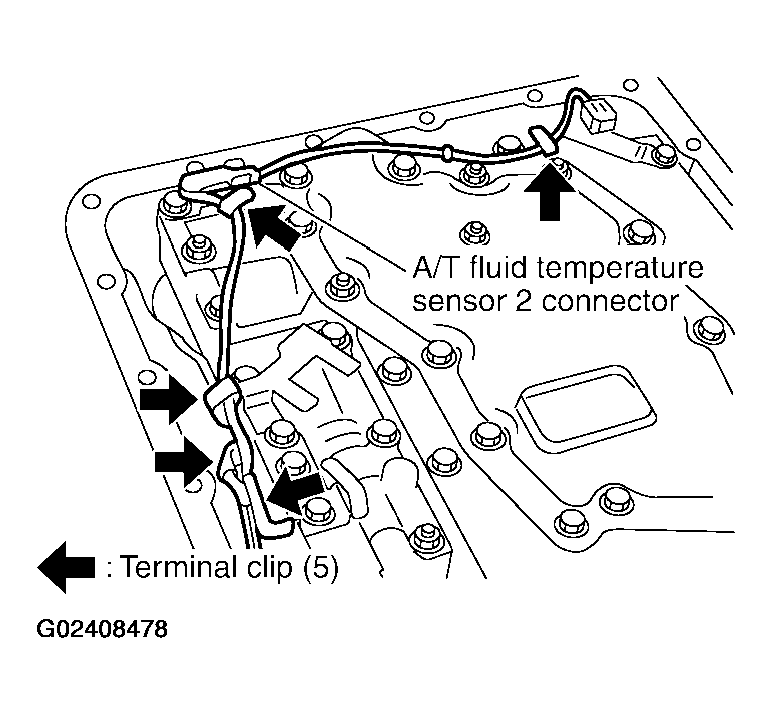

Straighten terminal clips to free terminal cord assembly and A/T fluid temperature sensor 2 harness.

Fig 32: Removing Terminal Cord Assembly & A/T Fluid Temperature Sensor 2 Harness
Courtesy of NISSAN MOTOR CO., U.S.A.

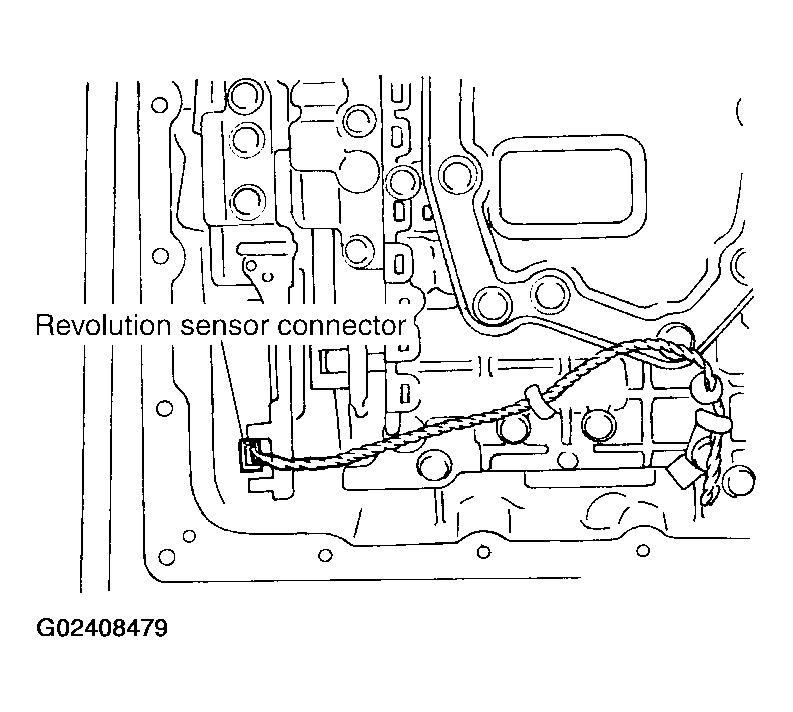

Disconnect revolution sensor connector.
CAUTION: Be careful not to damage connector.

Fig 33: Disconnecting Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

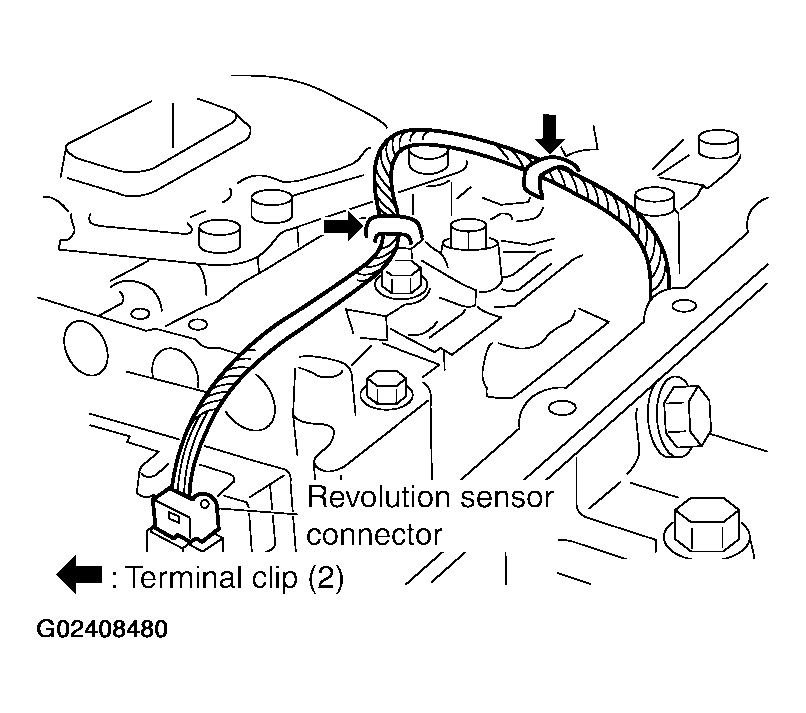

Straighten terminal clips to free revolution sensor harness.

Fig 34: Disconnecting Revolution Sensor Harness
Courtesy of NISSAN MOTOR CO., U.S.A.

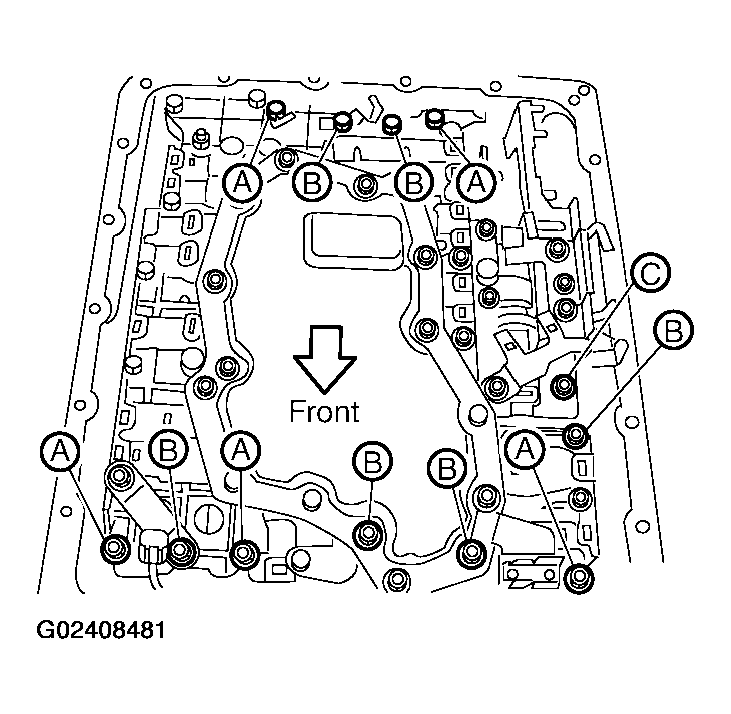

Remove bolts A, B and C from control valve with TCM.

BOLT SYMBOL AND LENGTH SPECIFICATION

Bolt symbol	Length mm (in)	Number of bolts
A	42 (1.65)	5
B	55 (2.17)	6
C	40 (1.57)	1

Fig 35: Removing Bolts From Control Valve With TCM

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove control valve with TCM from transmission case.
CAUTION: When removing, be careful with the manual valve notch and manual plate height. Remove it vertically.

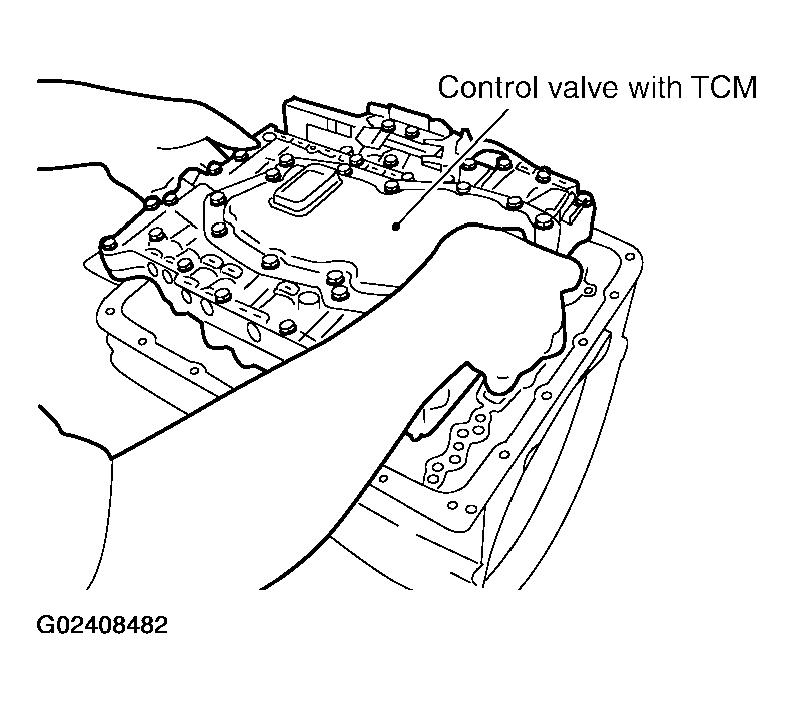

Fig 36: Removing Control Valve With TCM From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

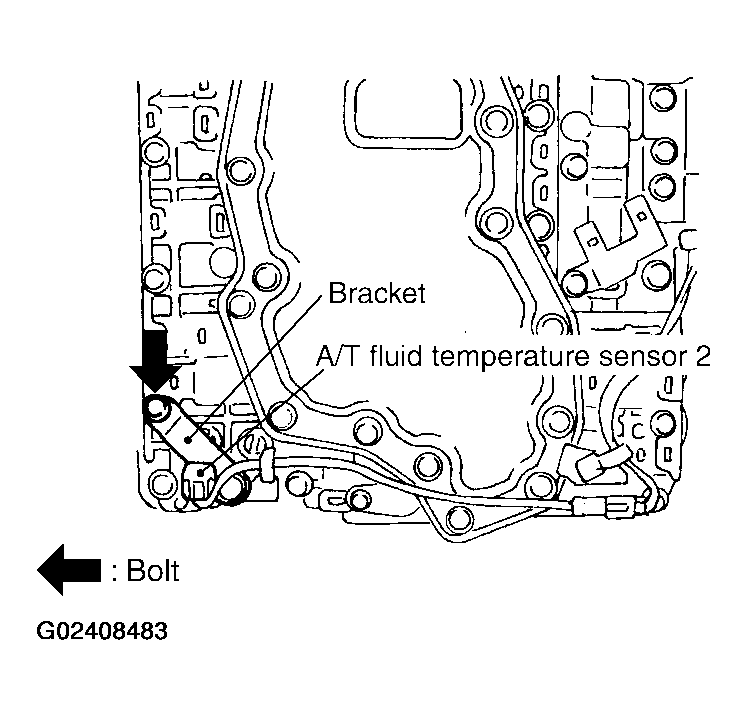

Remove A/T fluid temperature sensor 2 with bracket from control valve with TCM.

Fig 37: Removing A/T Fluid Temperature Sensor 2 With Bracket From Control Valve With TCM
Courtesy of NISSAN MOTOR CO., U.S.A.

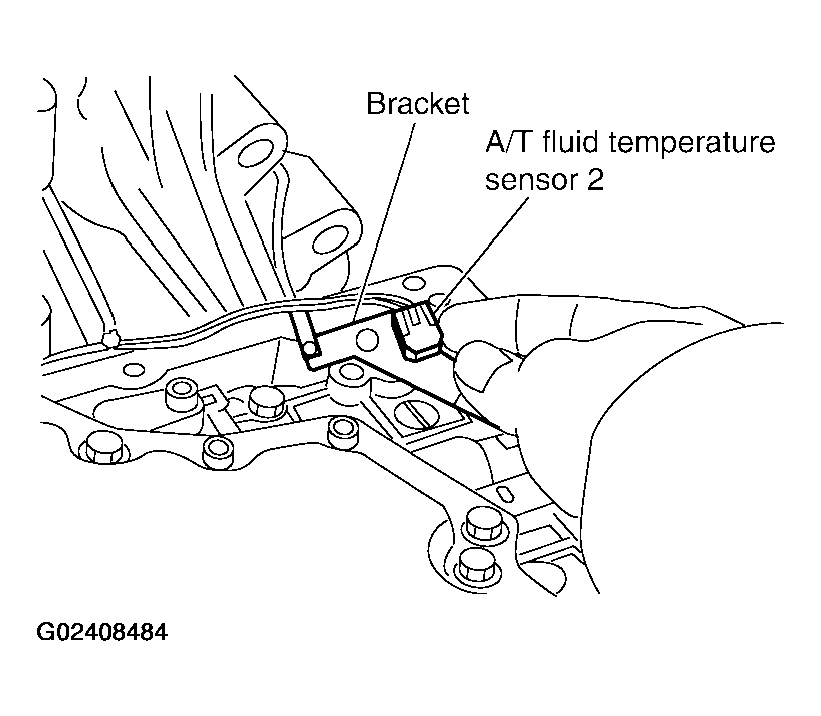

Remove bracket from A/T fluid temperature sensor 2.

Fig 38: Removing Bracket From A/T Fluid Temperature Sensor 2
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-ring from A/T assembly harness connector.

Fig 39: Removing O-Ring From A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect TCM connectors.
CAUTION: Be careful not to damage connectors.

Fig 40: Disconnecting TCM Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.

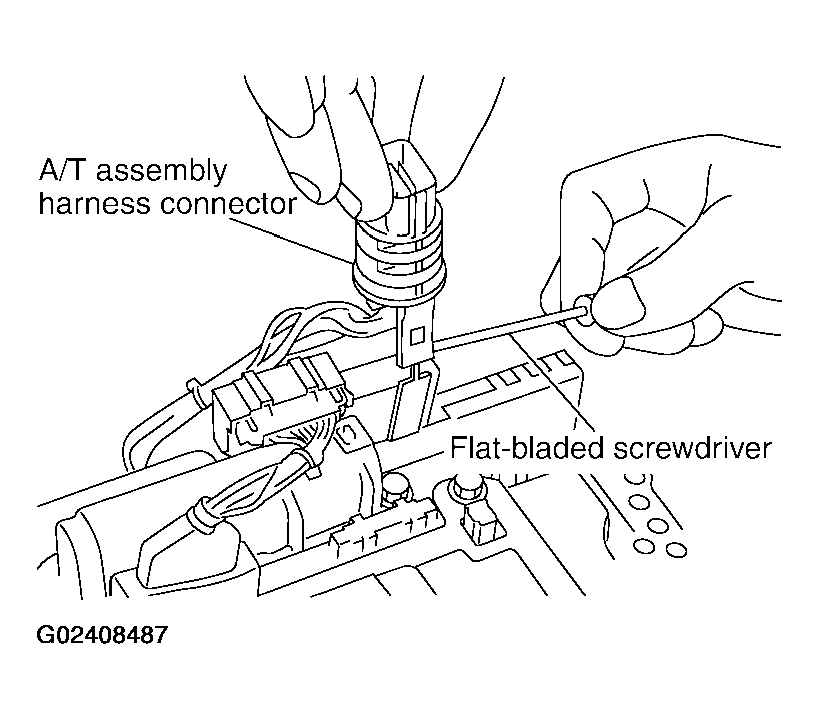

Remove A/T assembly harness connector from control valve with TCM using a flat-bladed screwdriver.

Fig 41: Removing A/T Assembly Harness Connector From Control Valve With TCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect TCM connector and park/neutral position switch connector.
CAUTION: Be careful not to damage connectors.

Fig 42: Disconnecting TCM Connector & Park/Neutral Position Switch Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

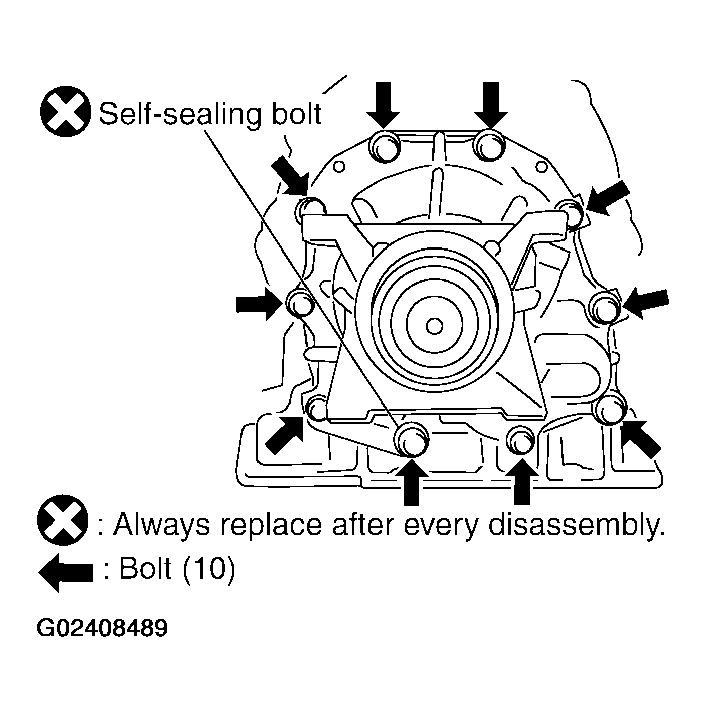

Remove tightening bolts for rear extension assembly and transmission case.

Fig 43: Remove Tightening Bolts For Rear Extension Assembly And Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

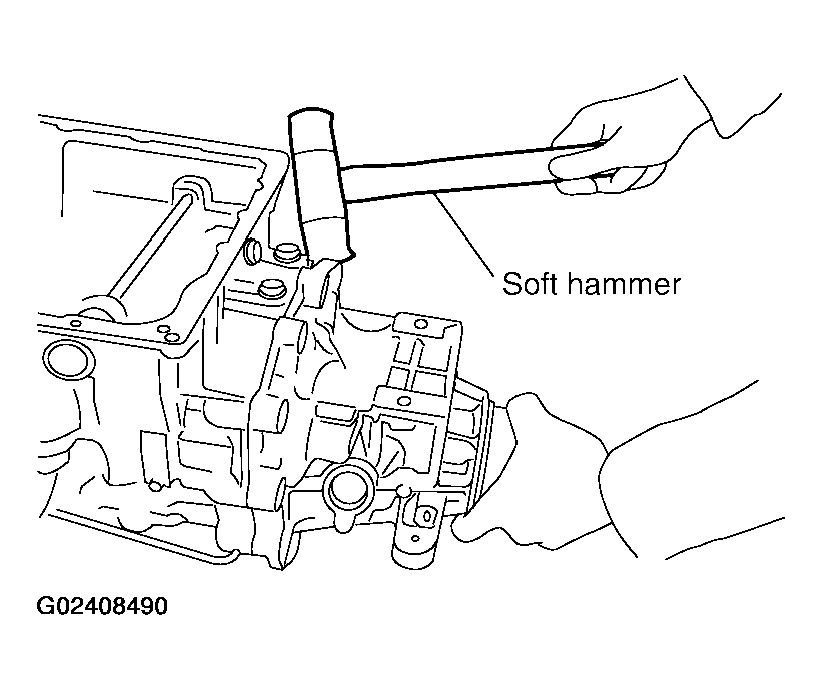

Tap rear extension assembly with soft hammer.

Fig 44: Taping Rear Extension Assembly With Soft Hammer
Courtesy of NISSAN MOTOR CO., U.S.A.

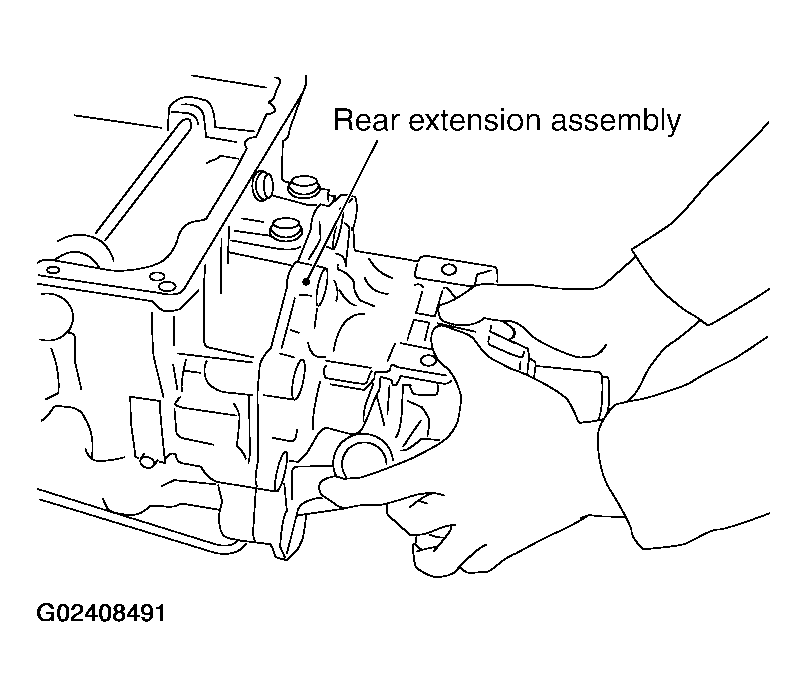

Remove rear extension assembly from transmission case. (With needle bearing)

Fig 45: Removing Rear Extension Assembly From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

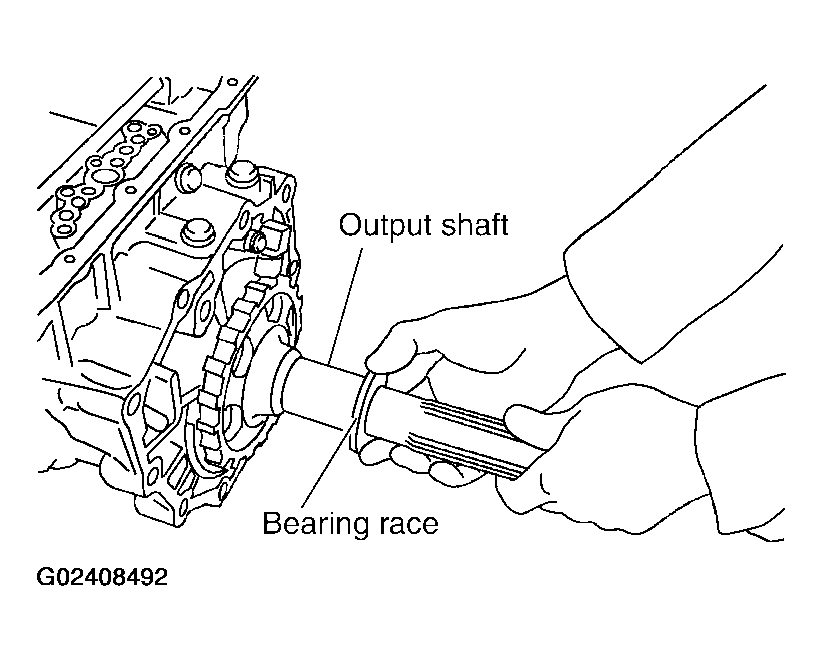

Remove bearing race from output shaft.

Fig 46: Removing Bearing Race From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

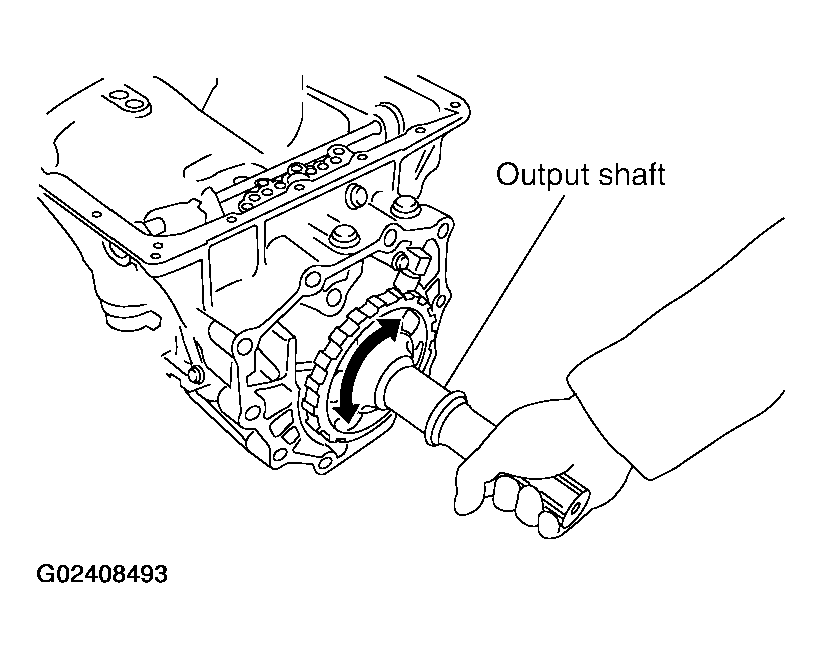

Remove output shaft from transmission case by rotating left/right.

Fig 47: Removing Output Shaft From Transmission Case By Rotating Left/Right
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking gear from output shaft.

Fig 48: Removing Parking Gear From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

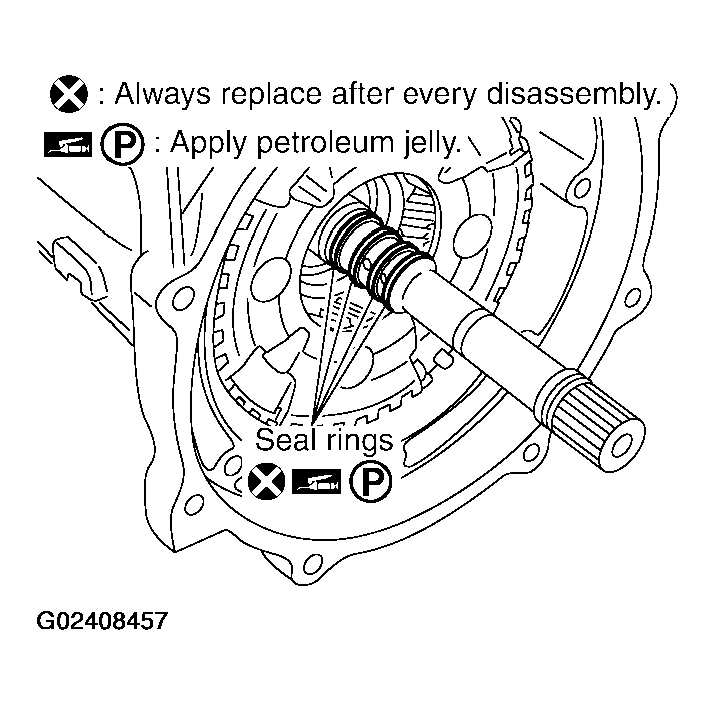

Remove seal rings from output shaft.

Fig 49: Removing Seal Rings From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

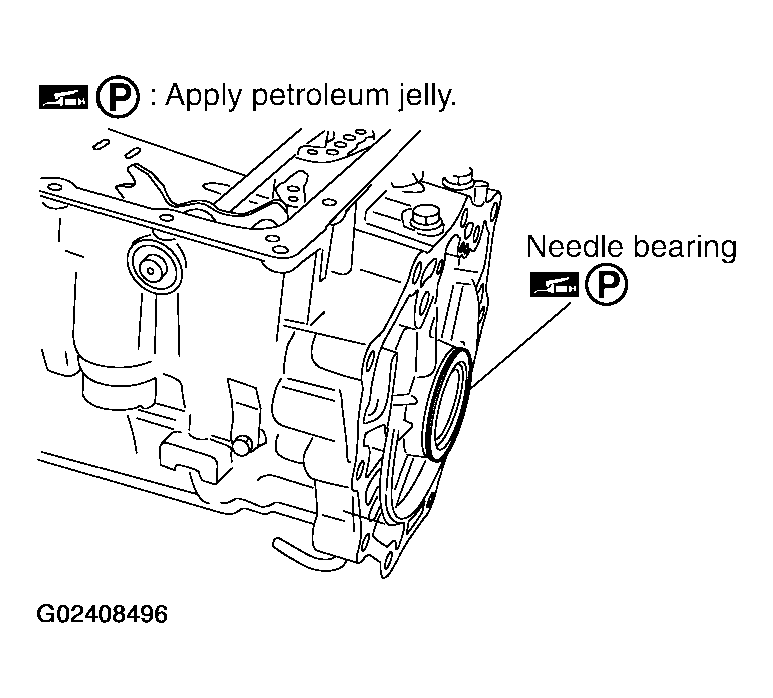

Remove needle bearing from transmission case.

Fig 50: Removing Needle Bearing From Transmission Case

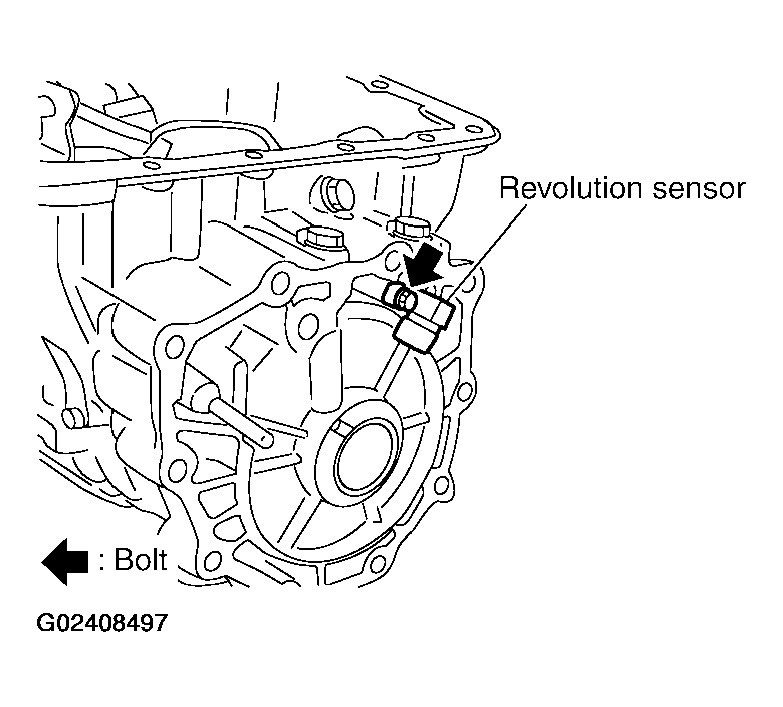

Courtesy of NISSAN MOTOR CO., U.S.A.
Remove revolution sensor from transmission case.
CAUTION:
- Do not subject it to impact by dropping or hitting it.
- Do not disassemble.
- Do not allow metal filings, etc., to get on the sensor's front edge magnetic area.
- Do not place in an area affected by magnetism.
Fig 51: Removing Revolution Sensor From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

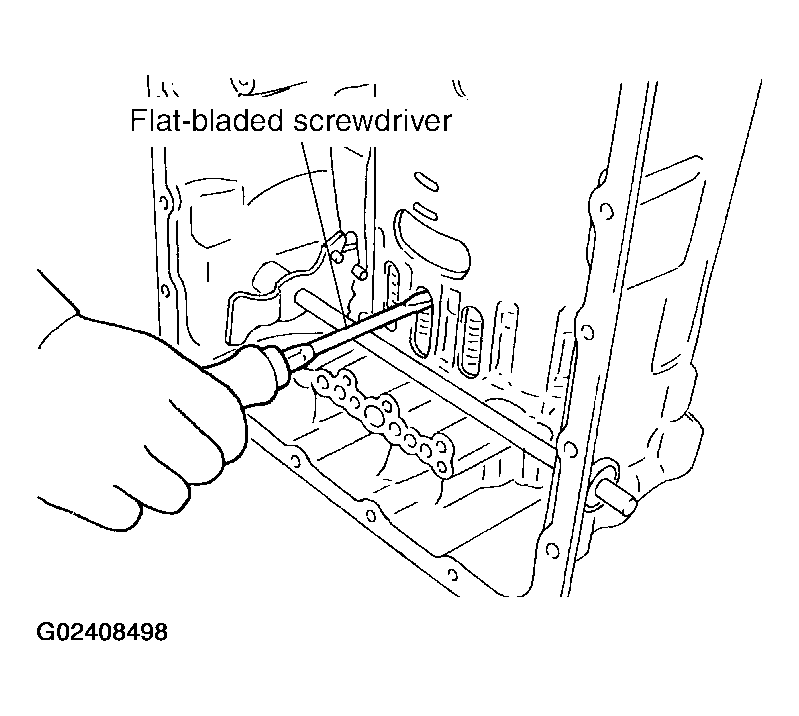

Remove reverse brake snap ring (fixing plate) using 2 flat-bladed screwdrivers.
NOTE: Press out snap ring from the transmission case oil pan side gap using a flat-bladed screwdriver, and remove it using another screwdriver.
Remove reverse brake retaining plate from transmission case.
- Check facing for burns, cracks or damage. If necessary, replace the plat.
Fig 52: Remove Reverse Brake Snap Ring (Fixing Plate) Using 2 Flat-Bladed Screwdrivers
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove N-spring from transmission case.

Fig 53: Removing N-Spring From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

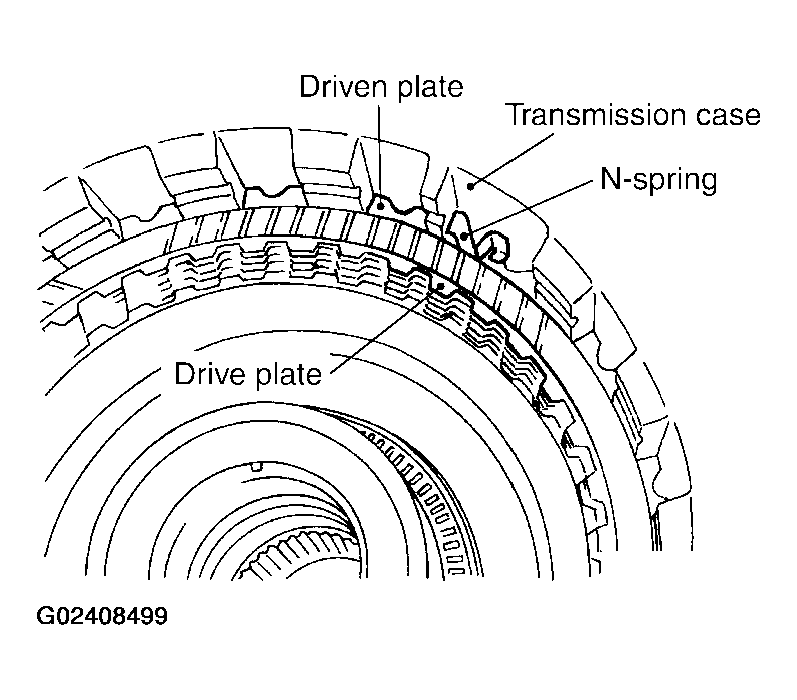

Remove reverse brake drive plates, driven plates and dish plate from transmission case.
CAUTION: Be careful to remove it with N-spring.

Fig 54: Removing Reverse Brake Drive Plates, Driven Plates & Dish Plate From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

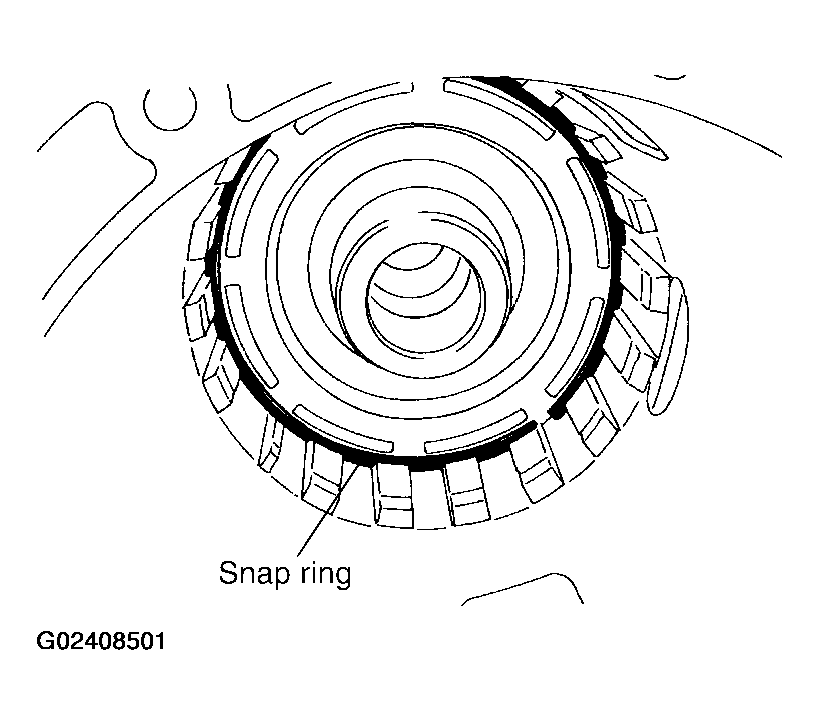

Remove snap ring (fixing spring retainer) using a flat-bladed screwdriver.

Fig 55: Removing Snap Ring (Fixing Spring Retainer)
Courtesy of NISSAN MOTOR CO., U.S.A.

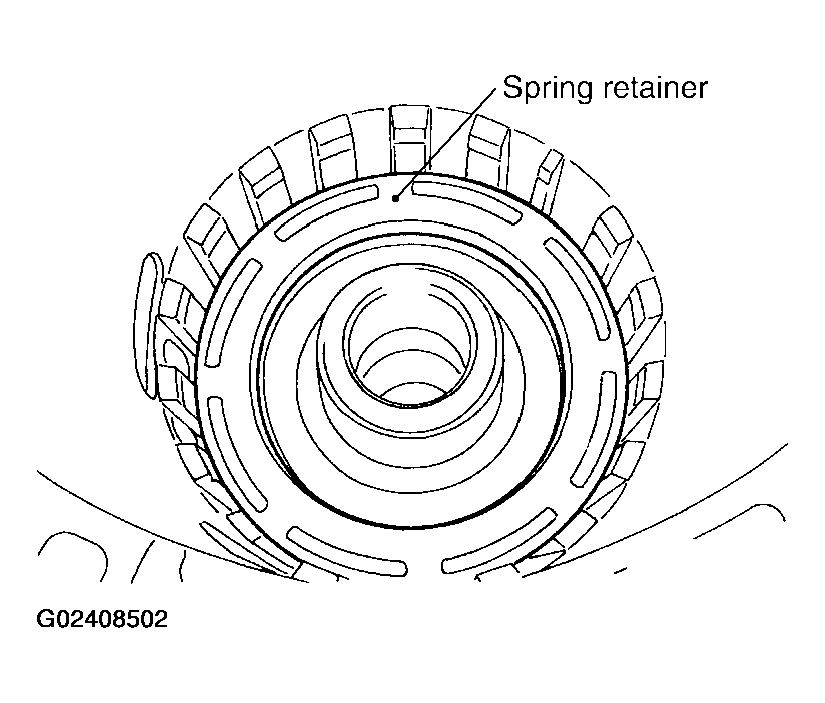

Remove spring retainer and return spring from transmission case.

Fig 56: Removing Spring Retainer & Return Spring From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

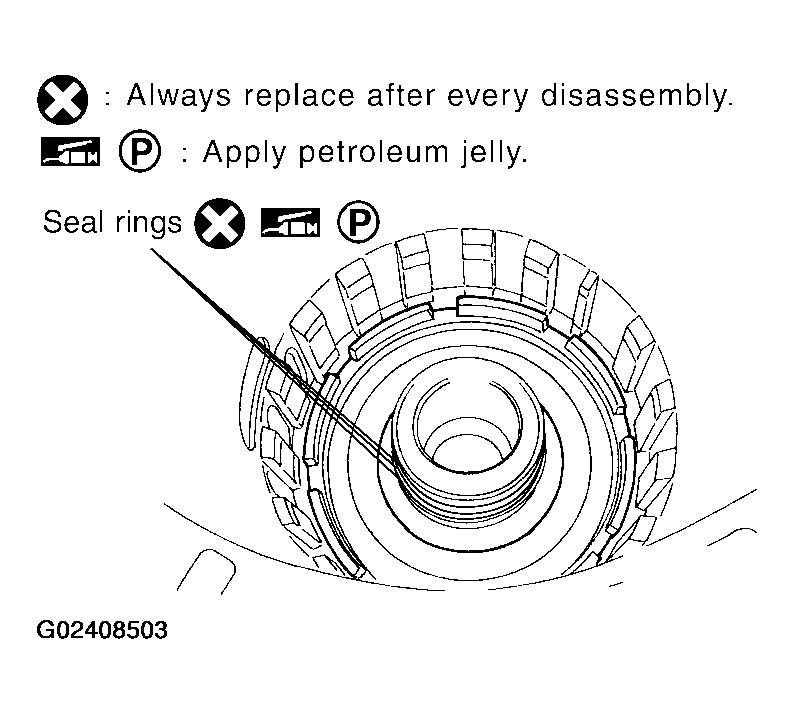

Remove seal rings from drum support.

Fig 57: Removing Seal Rings From Drum Support
Courtesy of NISSAN MOTOR CO., U.S.A.

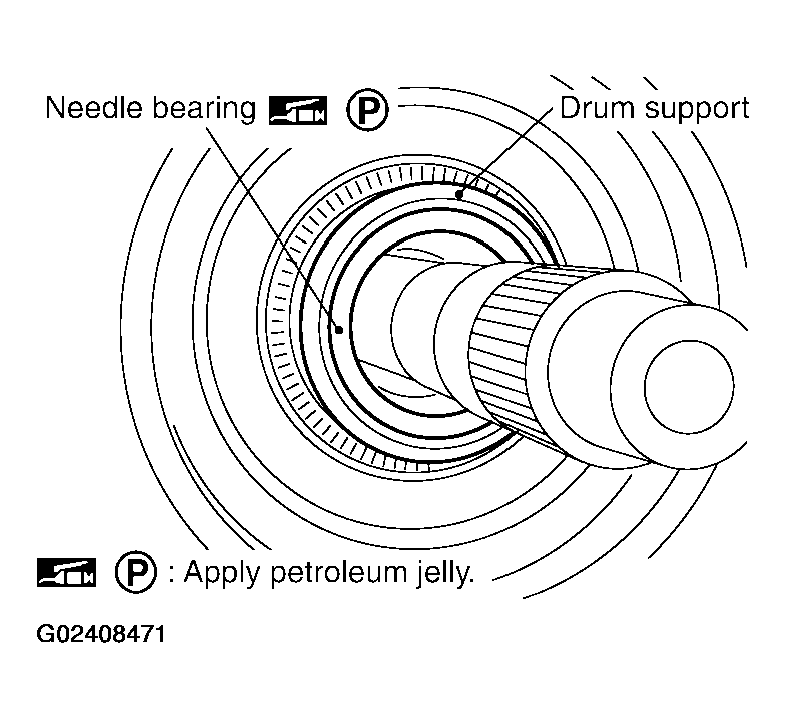

Remove needle bearing from drum support edge surface.

Fig 58: Removing Needle Bearing From Drum Support Edge Surface
Courtesy of NISSAN MOTOR CO., U.S.A.

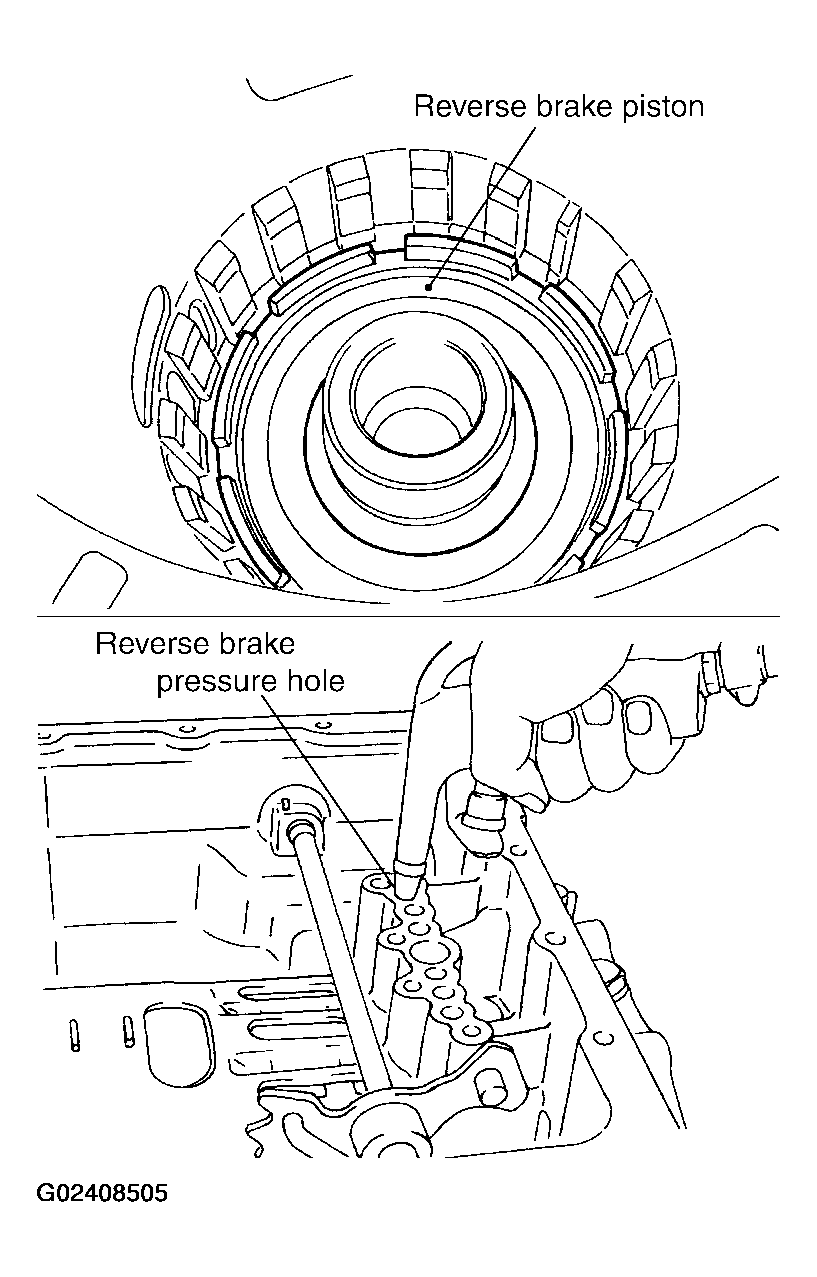

Remove reverse brake piston from transmission case with compressed air. Refer to "OIL CHANNEL ".
CAUTION: Care should be taken not to abruptly blow air. It makes pistons incline, as the result, it becomes hard to disassemble the pistons.

Fig 59: Removing Reverse Brake Piston From Transmission Case With Compressed Air
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove D-rings from reverse brake piston.

Fig 60: Removing D-Rings From Reverse Brake Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

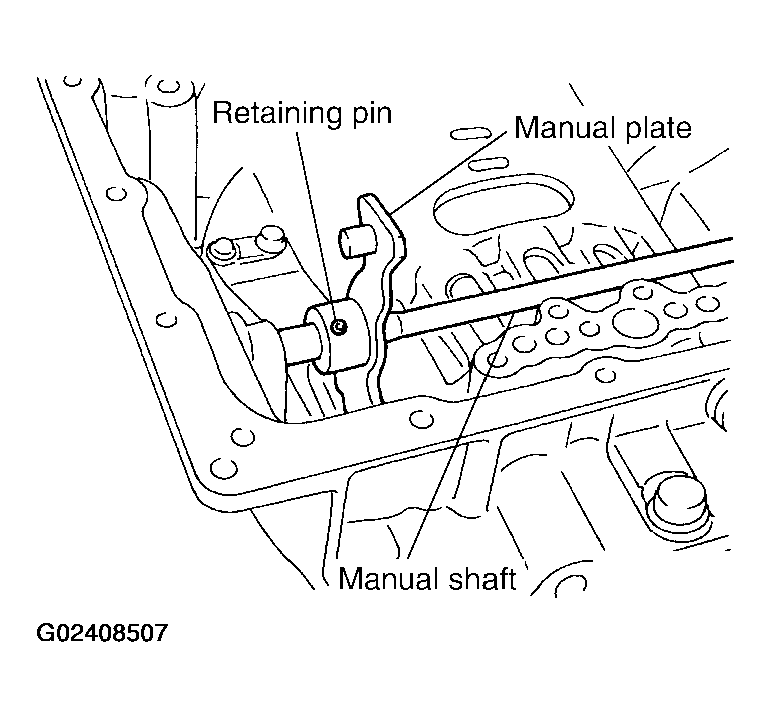

Use a pin punch (4mm dia. commercial service tool) to knock out retaining pin.

Fig 61: Removing Retaining Pin
Courtesy of NISSAN MOTOR CO., U.S.A.

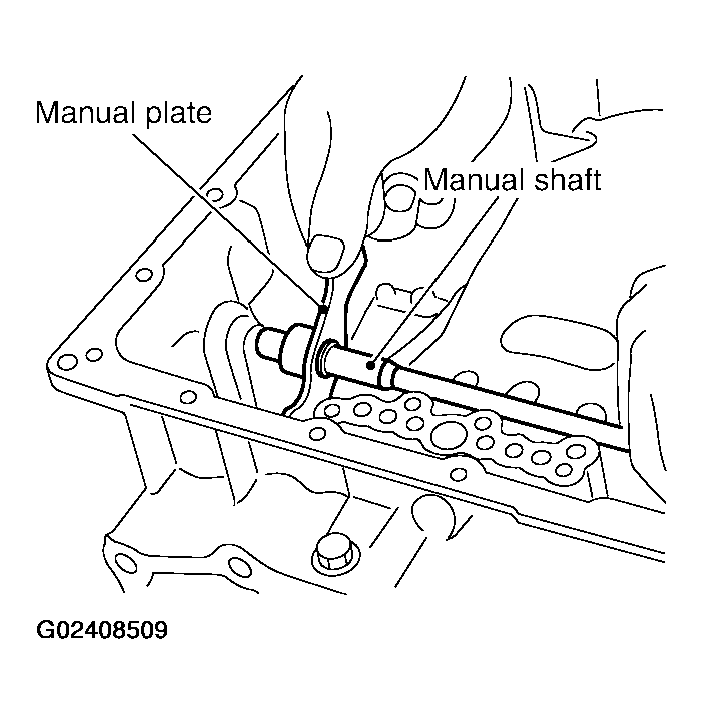

Remove manual shaft retaining pin with nippers.

Fig 62: Removing Manual Shaft Retaining Pin With Nippers
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual plate (with parking rod) from manual shaft.

Fig 63: Removing Manual Plate (With Parking Rod) From Manual Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking rod from manual plate.

Fig 64: Removing Parking Rod From Manual Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual shaft from transmission case.

Fig 65: Removing Manual Shaft From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual shaft oil seals using a flat-bladed screwdriver.
CAUTION: Be careful not to scratch transmission case.

Fig 66: Removing Manual Shaft Oil Seals
Courtesy of NISSAN MOTOR CO., U.S.A.

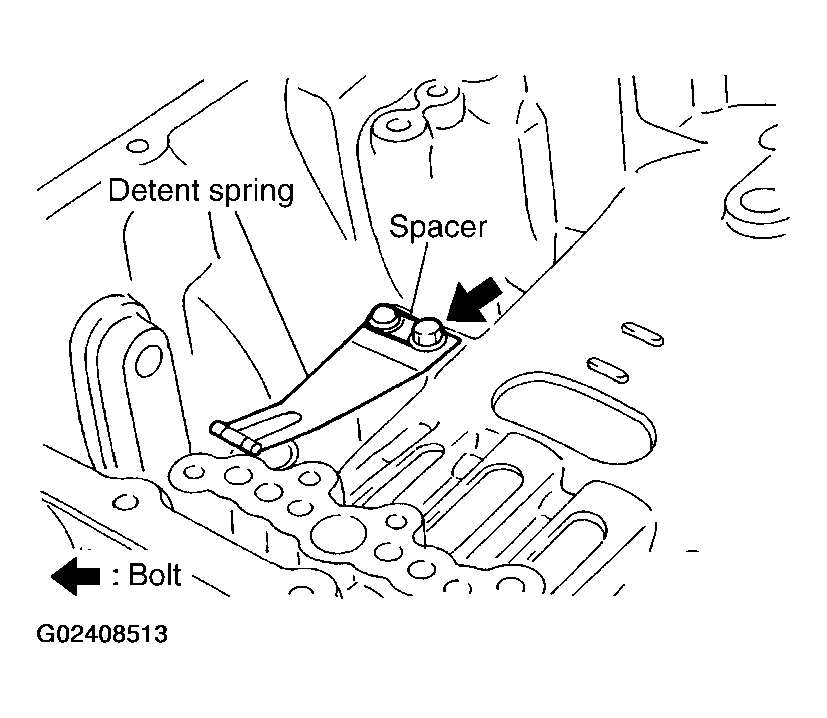

Remove detent spring and spacer from transmission case.

Fig 67: Removing Detent Spring & Spacer From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Using snap ring pliers, remove snap ring from transmission case.

Fig 68: Removing Snap Ring From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove servo assembly (with return spring) from transmission case.

Fig 69: Removing Servo Assembly (With Return Spring) From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove return spring from servo assembly.

Fig 70: Removing Return Spring From Servo Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

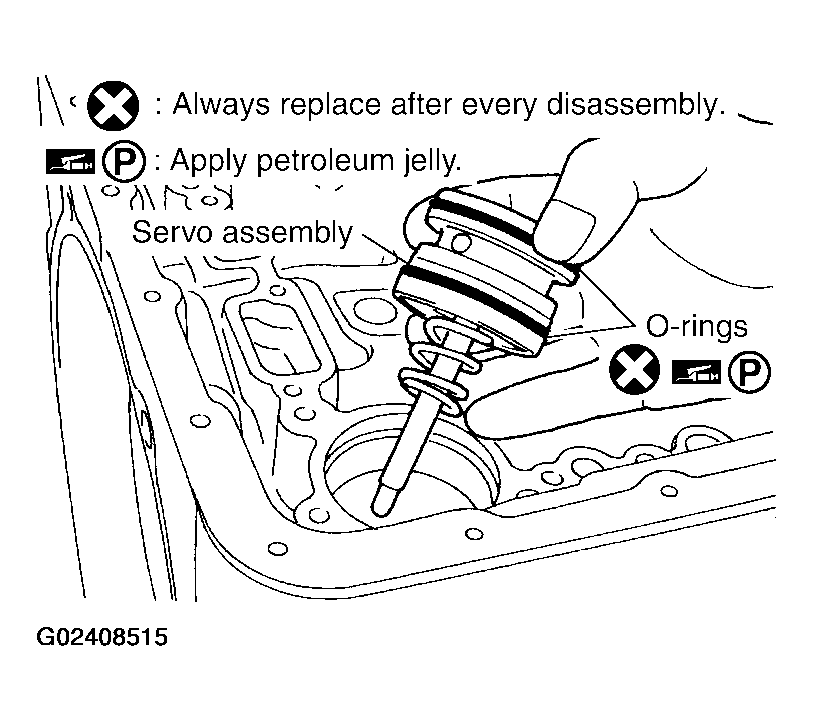

Remove O-rings from servo assembly.

Fig 71: Removing O-Rings From Servo Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking actuator support from rear extension.

Fig 72: Removing Parking Actuator Support From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking pawl (with return spring) and pawl shaft from rear extension.

Fig 73: Removing Parking Pawl (With Return Spring) & Pawl Shaft From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove return spring from parking pawl.

Fig 74: Removing Return Spring From Parking Pawl
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from rear extension.
Remove rear oil seal from rear extension.
CAUTION: Be careful not to scratch rear extension.

Fig 75: Removing Rear Oil Seal From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
