Section 1464 (Lighting System)
›
Interior Room Lamp
›
CONSULT-II Functions (BCM)
›
Notes
CONSULT-II Functions (BCM): Notes
WARNING:
This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.

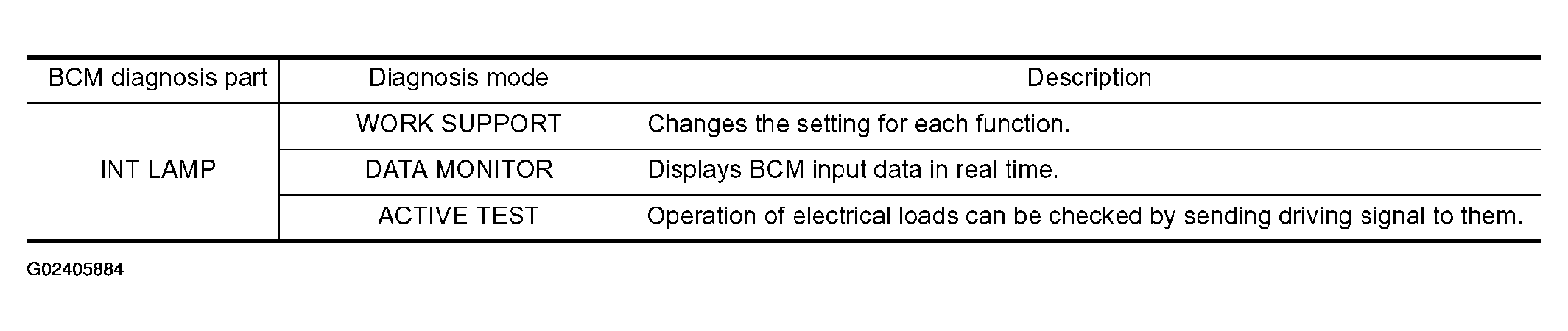

Fig 1: Consult-II Functions (BCM) Description
Courtesy of NISSAN MOTOR CO., U.S.A.
