Work Flow

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

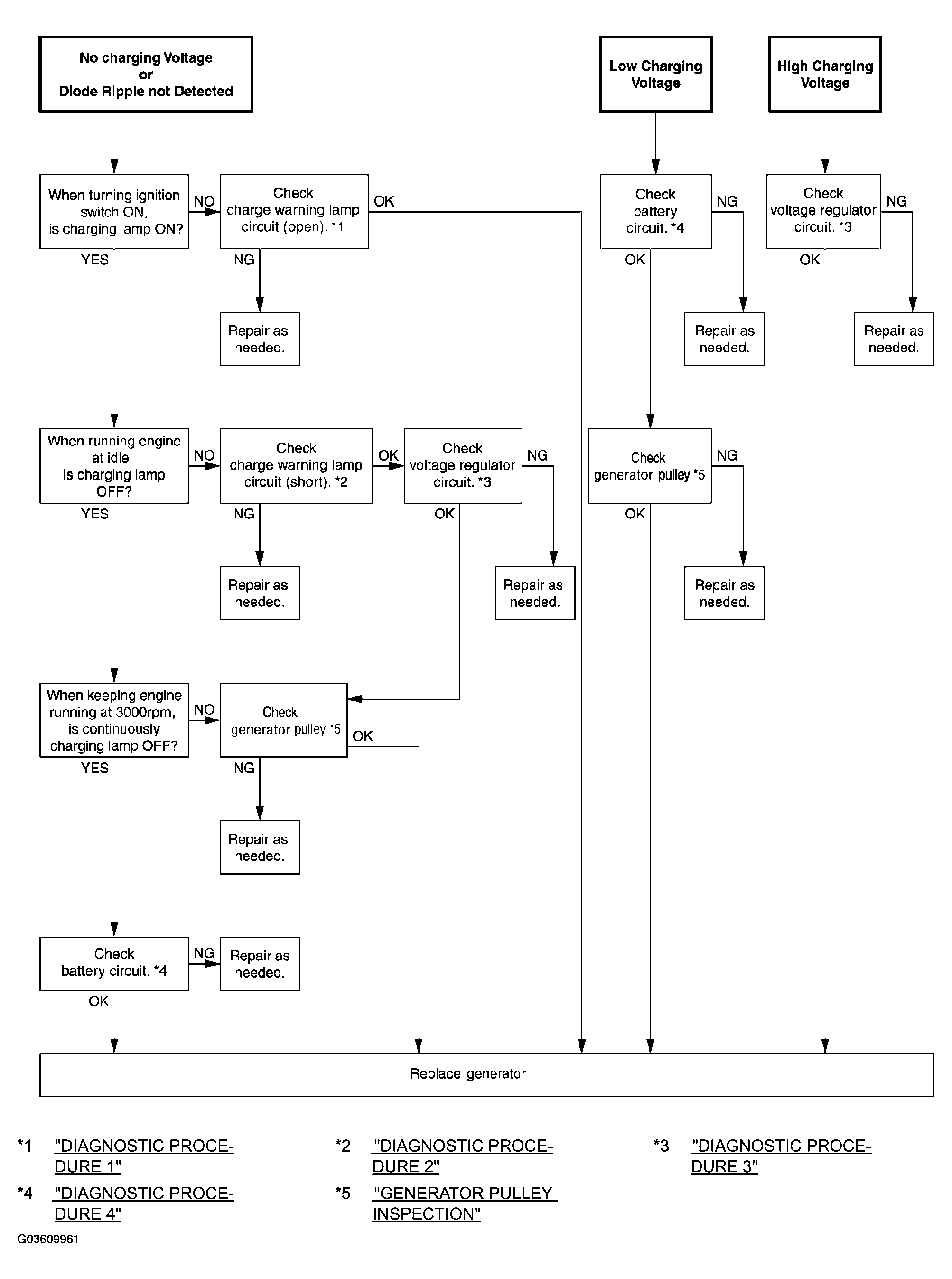

Fig 1: Work Flow Chart
G03609961Courtesy of NISSAN MOTOR CO., U.S.A.
  1. *1 "DIAGNOSTIC PROCEDURE 1 "
  2. *2 "DIAGNOSTIC PROCEDURE 2 "
  3. *3 "DIAGNOSTIC PROCEDURE 3 "
  4. *4 "DIAGNOSTIC PROCEDURE 4 "
  5. *5 "GENERATOR PULLEY INSPECTION "
