Mirror Motor RH Circuit Check

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR RH MECHANISM
Check the following items.

Operation malfunction caused by a foreign object caught in door mirror face edge.

OK or NG
- OK : GO TO 2.
- NG : Repair the malfunctioning parts, and check the symptom again.

CHECK FUNCTION

With CONSULT-II

Check the operation with "MIRROR MOTOR RH" in the ACTIVE TEST.

Fig 1: Identifying Display Screen And Touch MIRROR MOTOR RH

Courtesy of NISSAN MOTOR CO., U.S.A.

MIRROR MOTOR RH TEST ITEM SPECIFICATION

Test item	Description
MIRROR MOTOR RH	The mirror motor RH moves the mirror UP/DOWN and LEFT/ RIGHT by receiving the drive signal.

Without CONSULT-II

GO TO 3.

OK or NG

OK : Mirror motor RH circuit is OK.
NG : GO TO 3.

CHECK DOOR MIRROR RH CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror RH.
3. Check continuity between automatic drive positioner control unit connector M33 terminals 14, 15, 30 and door mirror RH connector D107 terminals 1, 2, 3.
  14 (GR/R) - 1 (GR/R) : Continuity should exist .

  15 (V/R) - 2 (V/R) : Continuity should exist .

  30 (Y) - 3 (Y) : Continuity should exist .
4. Check continuity between automatic drive positioner control unit connector M33 terminals 14, 15, 30 and ground.
  14 (GR/R) - Ground : Continuity should not exist .

  15 (V/R) - Ground : Continuity should not exist .

  30 (Y) - Ground : Continuity should not exist .

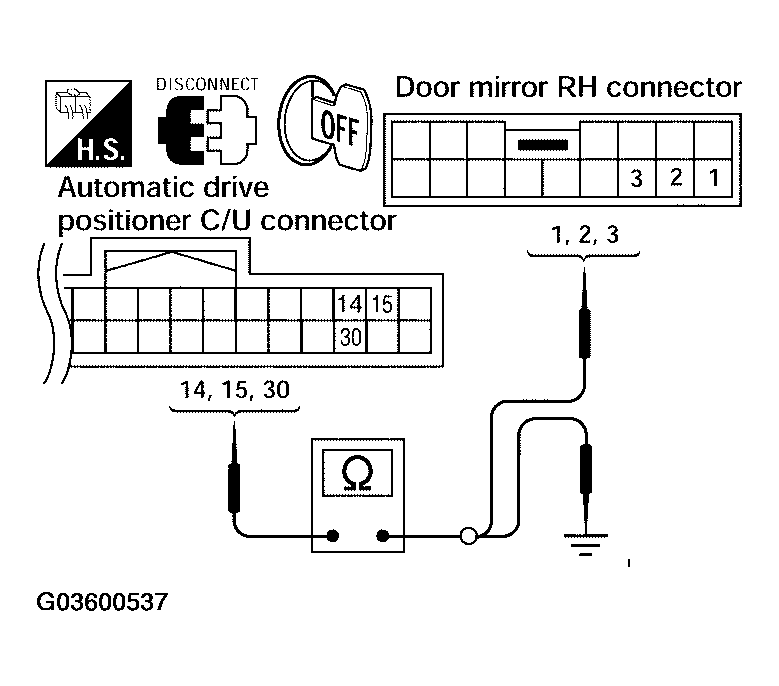

Fig 2: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M33 Terminals 14, 15, 30 And Door Mirror RH Connector D107 Terminals 1, 2, 3 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK : GO TO 4.
- NG : Repair or replace harness.

CHECK MIRROR MOTOR SIGNAL

Turn ignition switch to ACC.

Check voltage between door mirror RH connector and ground.

Fig 3: Checking Voltage Between Door Mirror RH Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

VOLTAGE BETWEEN DOOR MIRROR RH CONNECTOR AND GROUND REFERENCE

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
D107	1 (GR/R)	Ground	Mirror motor is operated UP	1.5 - Battery voltage
	1 (GR/R)		Other than above	0
	2 (V/R)		Mirror motor is operated LEFT	1.5 - Battery voltage
	2 (V/R)		Other than above	0
	3 (Y)		Mirror motor is operated DOWN or RIGHT	1.5 - Battery voltage
	3 (Y)		Other than above	0

OK or NG

OK : Replace door mirror RH. Refer to "DOOR MIRROR ASSEMBLY ".
NG : Repair or replace harness.
