Removal and Installation: Installation
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
- If necessary, install the stud bolts.
Stud bolts : 10.8 N.m (1.1 kg-m, 96 in-lb)

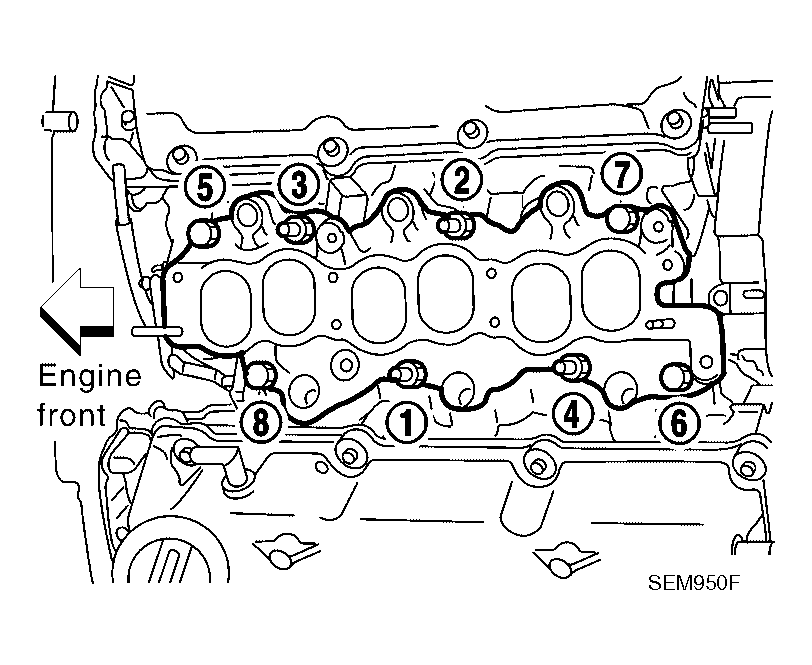

- Install intake manifold nuts and bolts in two steps in the order as shown.
Step 1 : 7.4 N.m (0.75 kg-m, 65 in-lb)
Step 2 : 29 N.m (3.0 kg-m, 21 ft-lb)
