Center Pillar

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

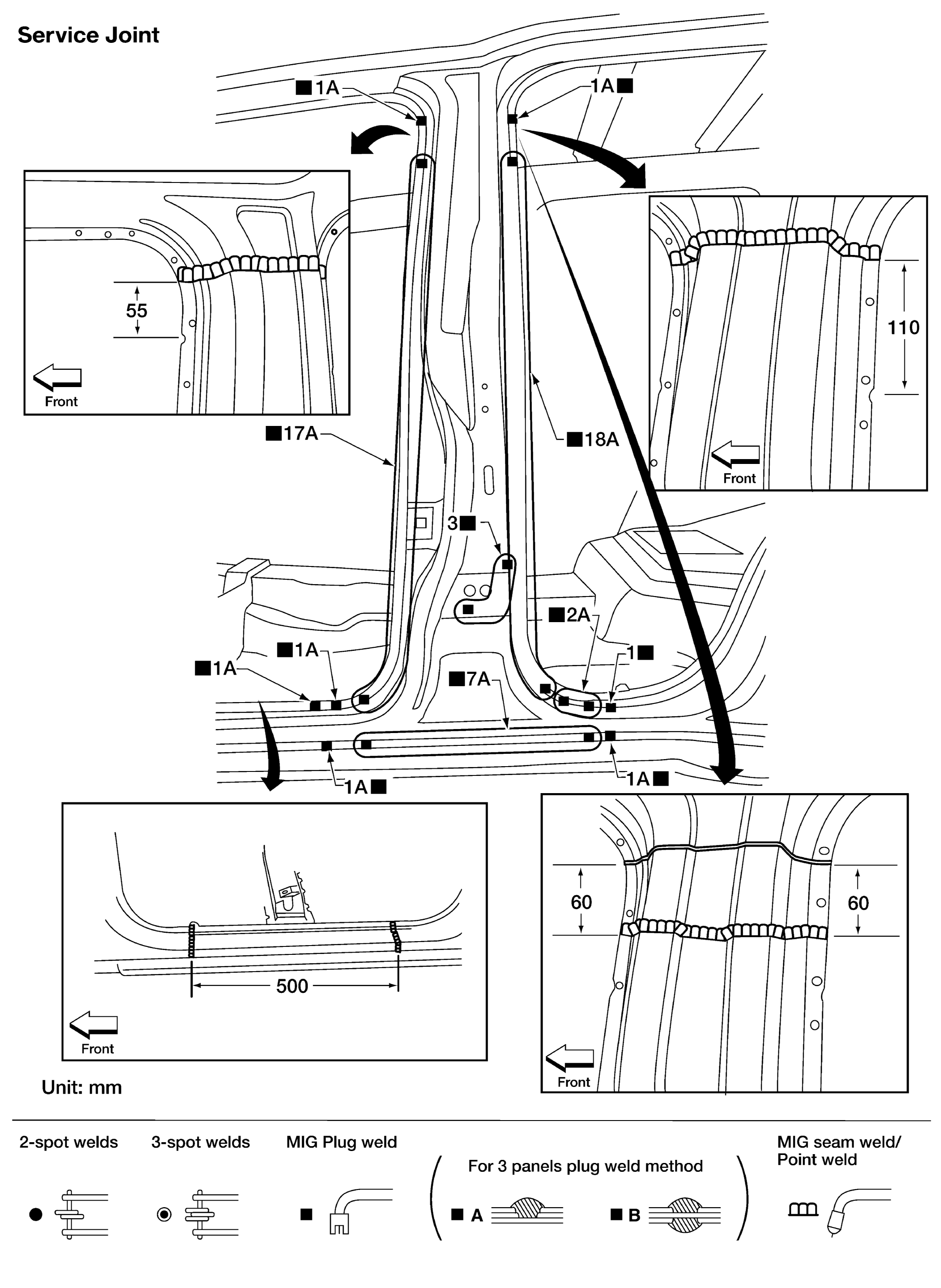

Fig 1: Locating Center Pillar

Courtesy of NISSAN MOTOR CO., U.S.A.

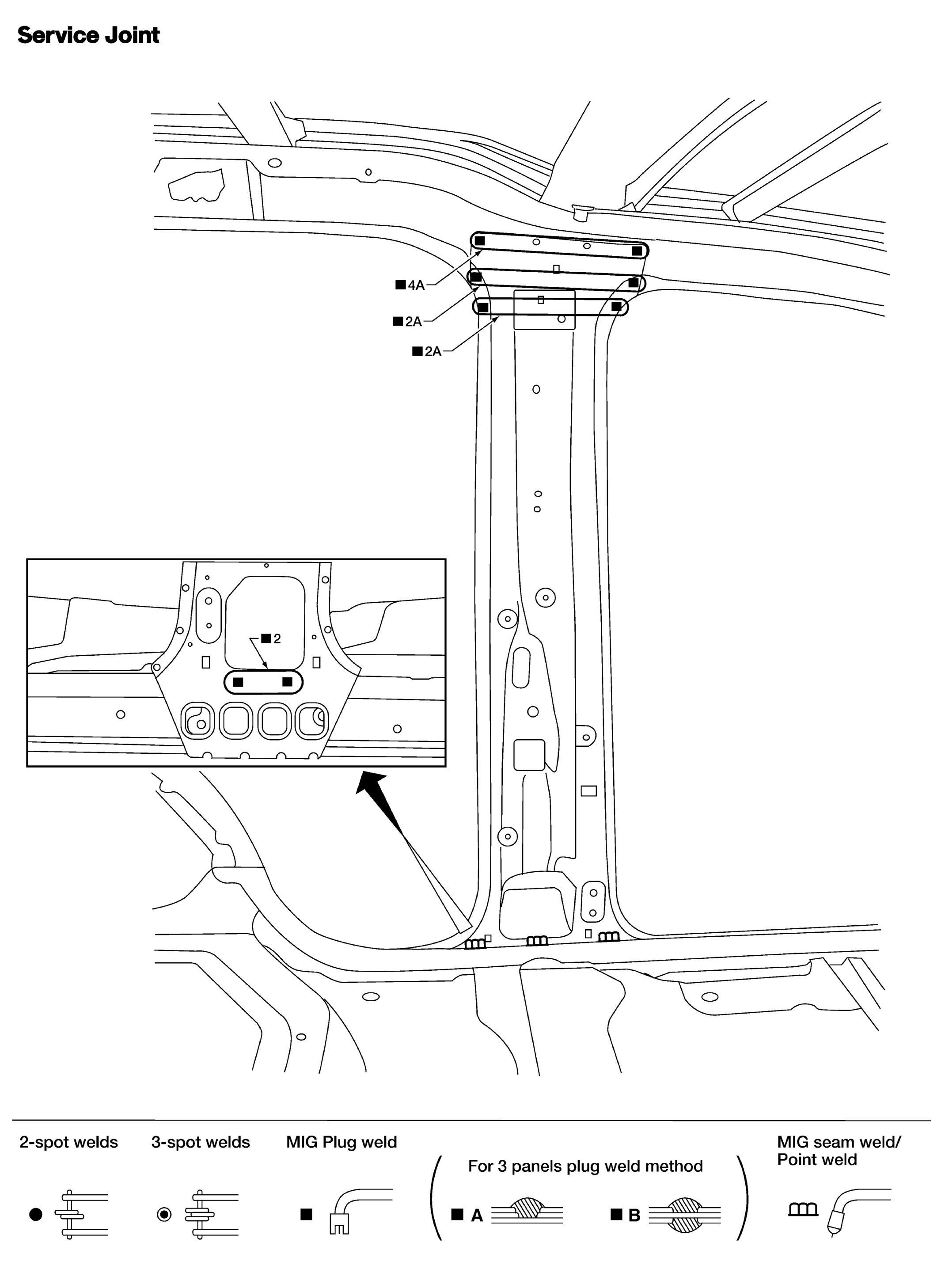

Fig 2: Identifying Service Point

Courtesy of NISSAN MOTOR CO., U.S.A.
