Center Console: Removal

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

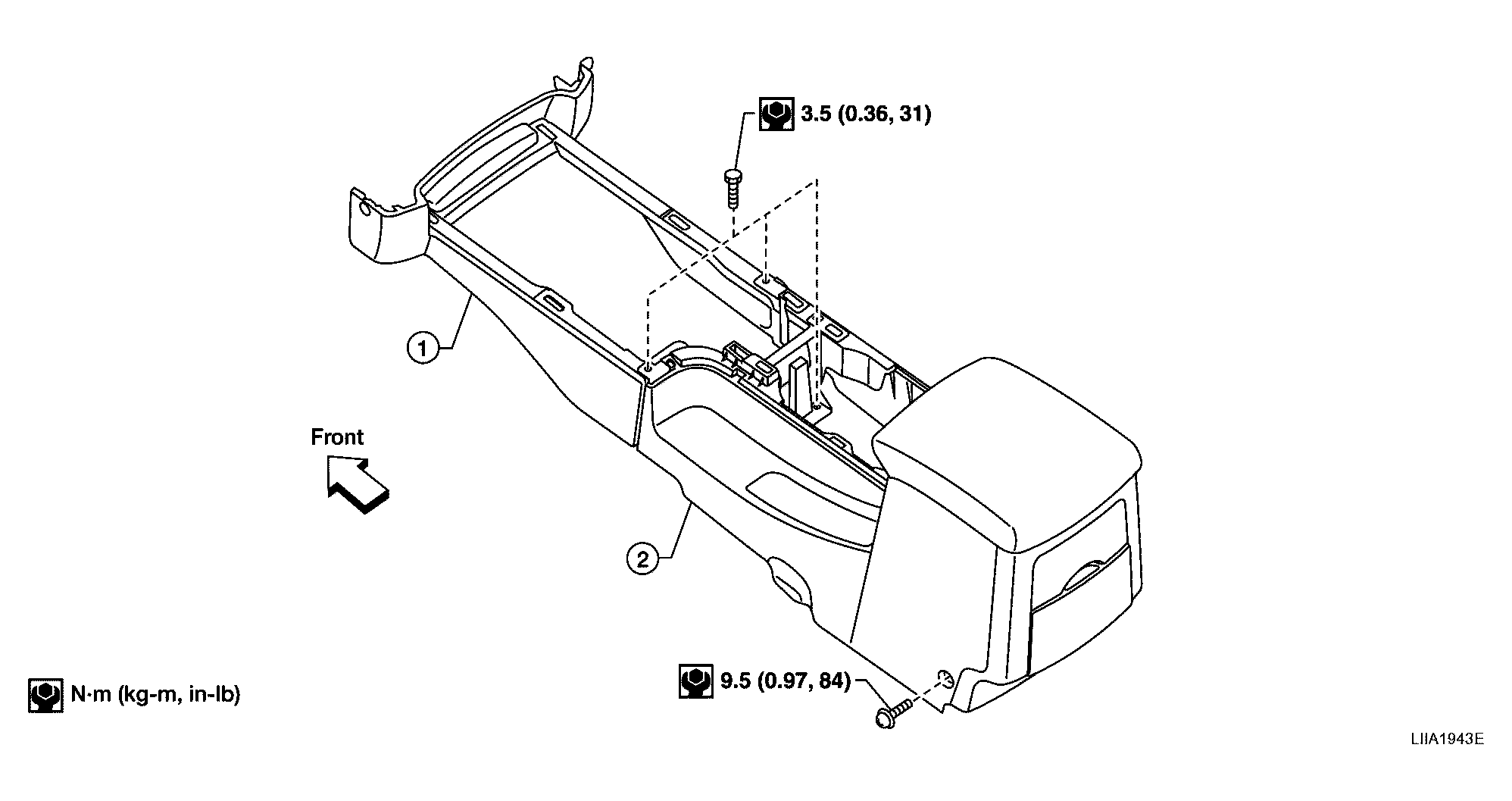

Fig 1: View Of Center Console With Torque Specifications
G04205792Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove lower instrument panel RH. Refer to "LOWER INSTRUMENT PANEL RH AND LOWER GLOVE BOX ".
  2. Remove cluster lid C.
  3. Remove A/T or M/T finisher. Refer to "A/T FINISHER " or "M/T FINISHER ".
  4. Remove center console screws.
  5. Disconnect electrical connectors and remove center console.
  6. Remove center console screws.
  7. Disconnect electrical connectors and remove center console.
