Removal and Installation of BCM: Removal
WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to
"CONFIGURATION ".
- Disconnect negative battery cable.
- Remove the parking brake pedal assembly. Refer to "PARKING BRAKE CONTROL ".

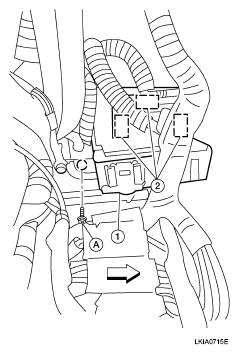

- Remove the BCM (1) by removing the screw (A) and disconnecting the harness connectors (2).
- <== : Front
