Intelligent Key System: Schematic

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: CAN Communication Schematic (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

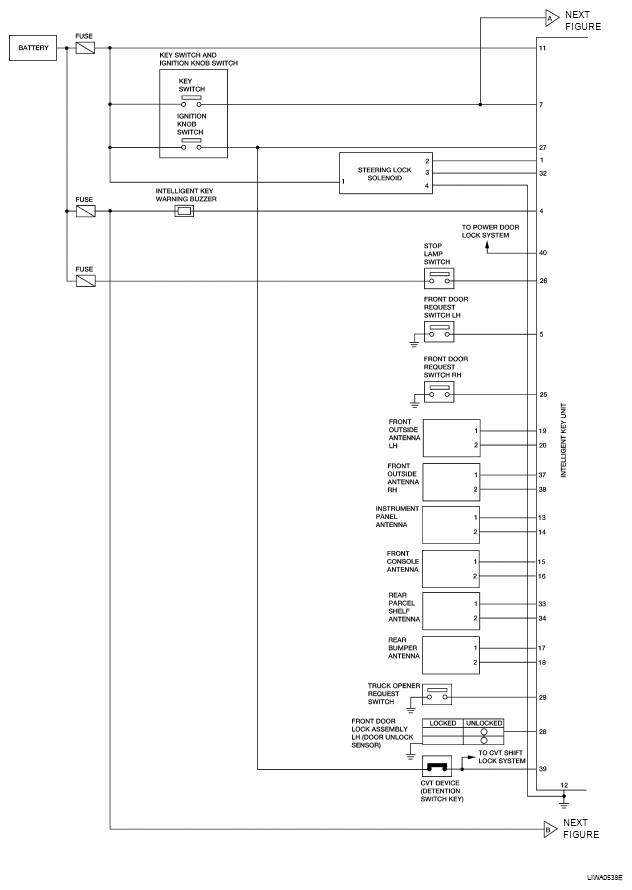

Fig 2: CAN Communication Schematic (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
