Work Flow

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

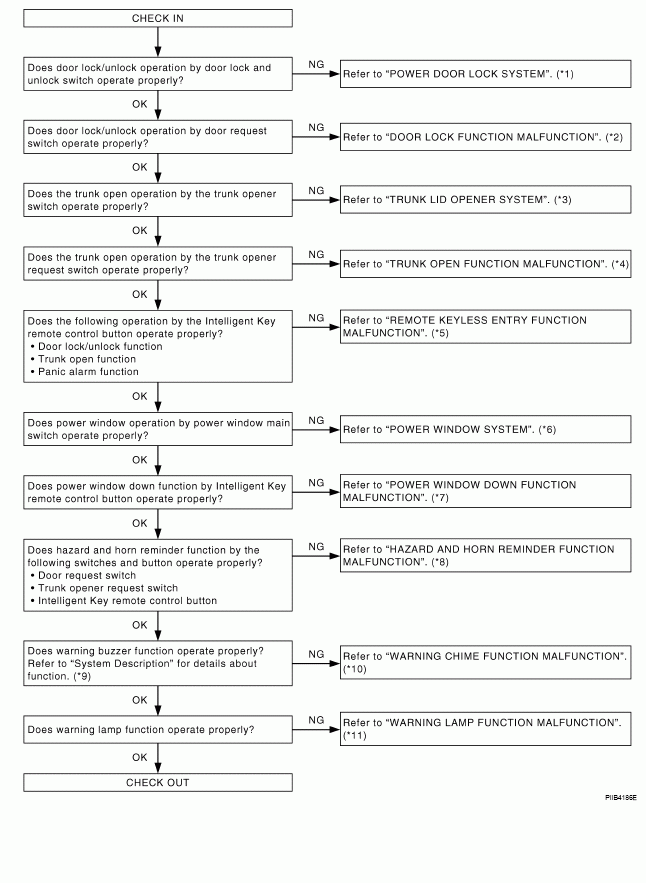

Fig 1: Intelligent Key Flow Diagram

G04916796

Courtesy of NISSAN MOTOR CO., U.S.A.

*1: POWER DOOR LOCK SYSTEM

*2: DOOR LOCK/UNLOCK FUNCTION MALFUNCTION

*3: TRUNK LID AND FUEL FILLER LID OPENER

*4: TRUNK OPEN FUNCTION MALFUNCTION

*5: REMOTE KEYLESS ENTRY FUNCTION MALFUNCTION

*6: POWER WINDOW SYSTEM

*7: POWER WINDOW DOWN FUNCTION MALFUNCTION

*8: HAZARD AND HORN REMINDER FUNCTION MALFUNCTION

*9: WARNING CHIME/BUZZER/LAMPS FUNCTION

*10: WARNING CHIME FUNCTION MALFUNCTION

*11: WARNING LAMP FUNCTION MALFUNCTION
