Removal and Installation: Notes

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

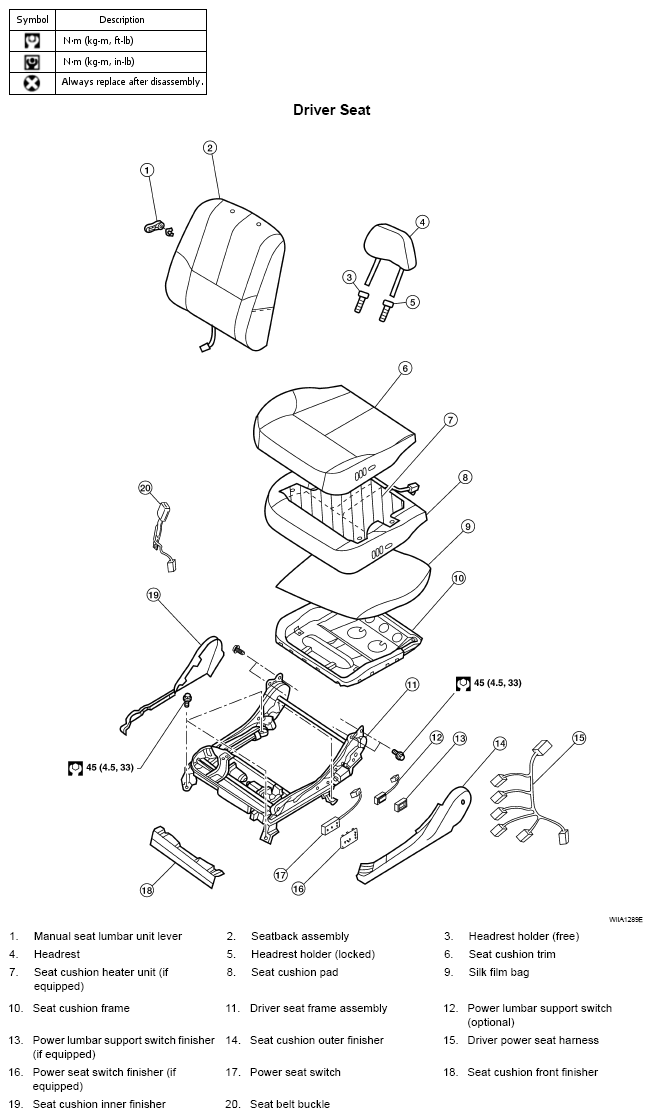

Fig 1: Front Seat Replacement Components With Torque Specifications (Driver Seat)
G04917478Courtesy of NISSAN MOTOR CO., U.S.A.

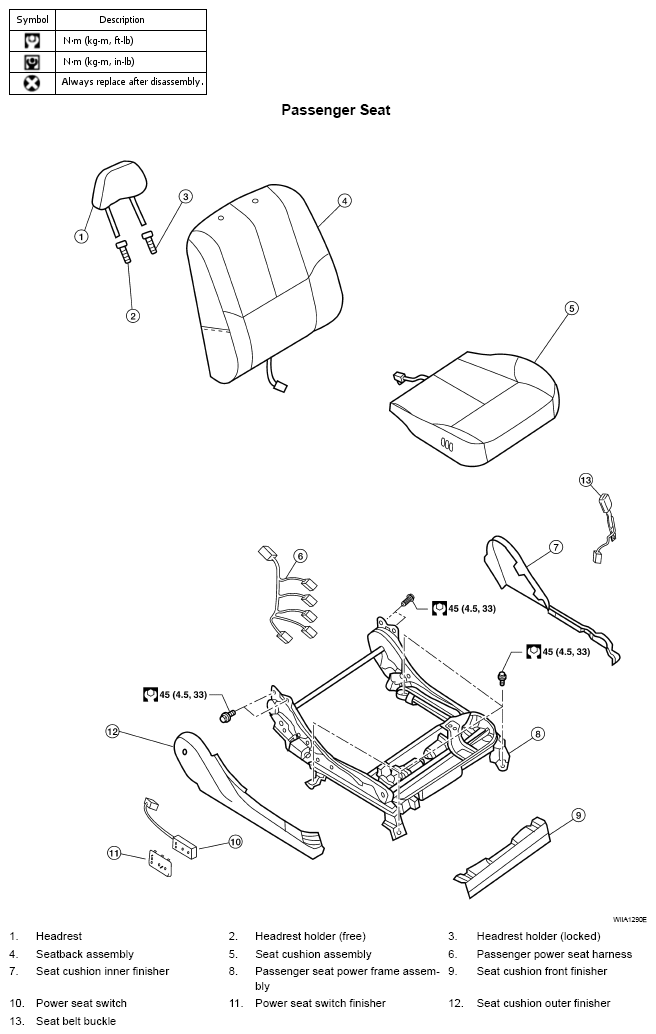

Fig 2: Front Seat Replacement Components With Torque Specifications (Passenger Seat)
G04917479Courtesy of NISSAN MOTOR CO., U.S.A.
