Sliding Door Lock Assembly

WARNING: This page is about a different car, the 2008 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

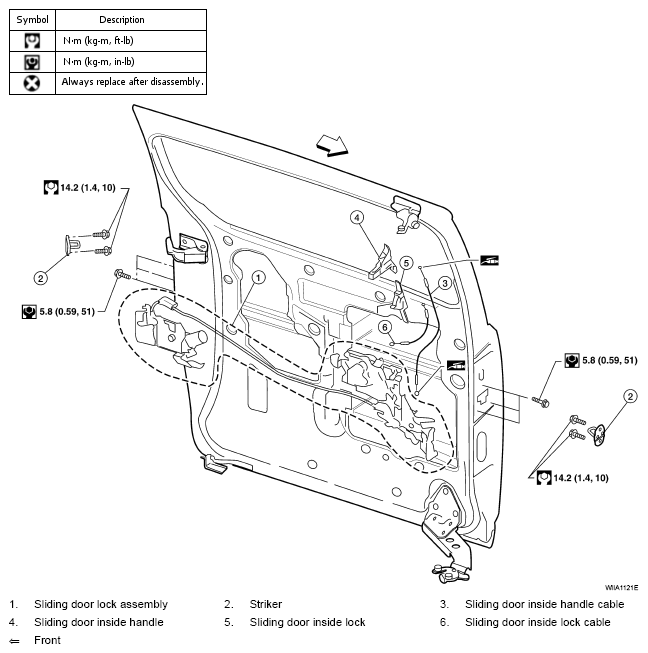

Fig 1: Sliding Door Lock Assembly Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove sliding door finisher. Refer to "SLIDING DOOR ".
Remove exterior door handle. Refer to "OUTSIDE HANDLE ".
Disconnect sliding door lock assembly electrical connectors.
Remove sliding door lock assembly.
- Remove screws from front and rear latches.

Installation is in the reverse order of removal.
