Front Seat: Component

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

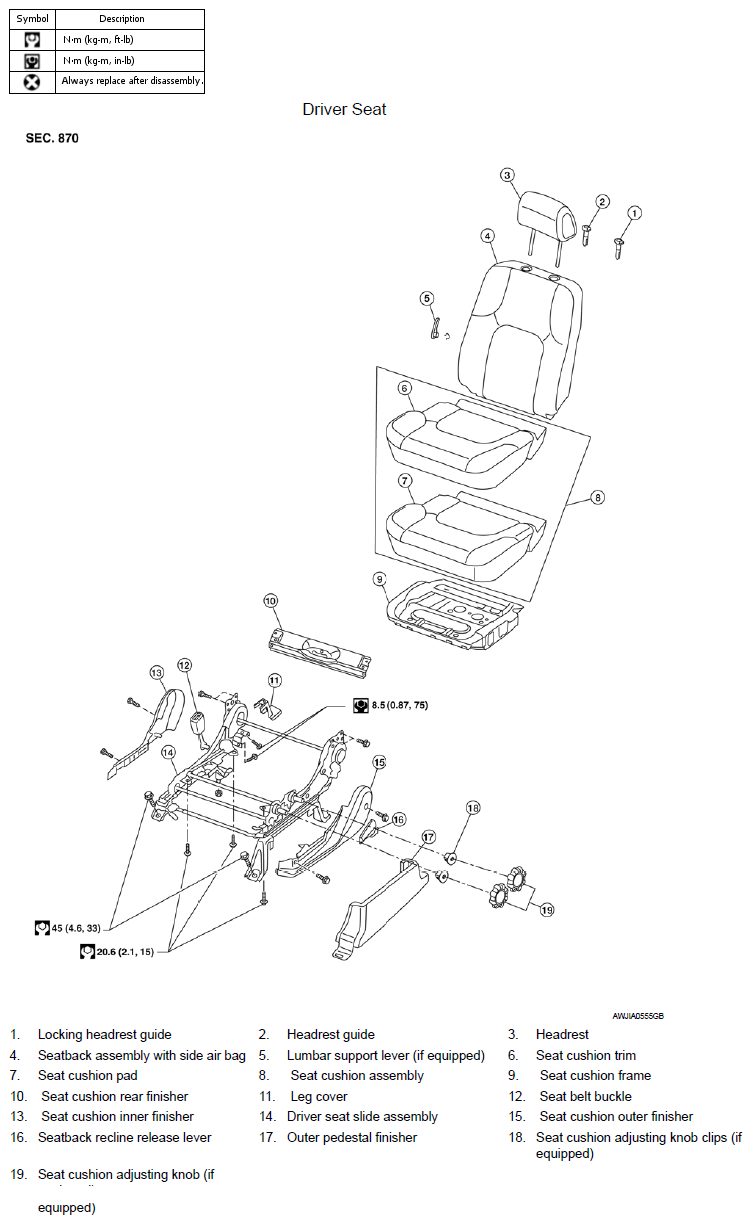

Fig 1: Exploded View Of Driver Seat With Torque Specifications
G07156005

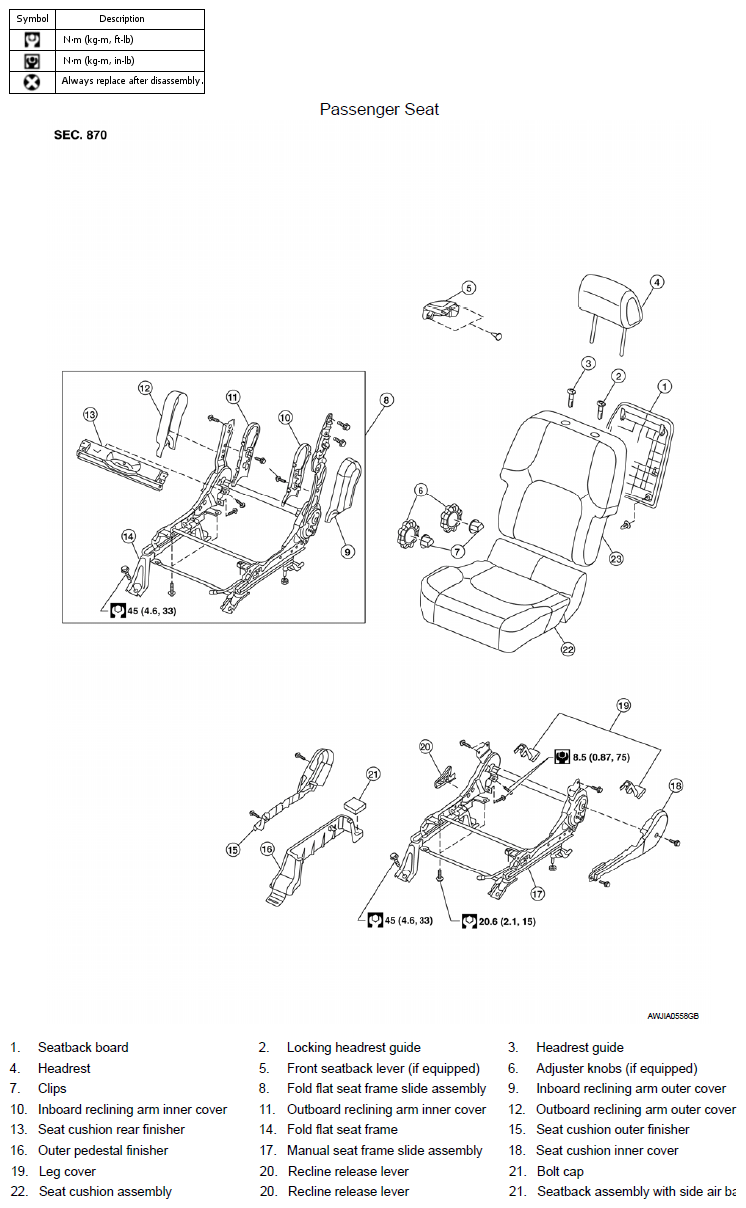

Fig 2: Exploded View Of Passenger Seat With Torque Specifications
G07156006
