Snow Mode Switch

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check snow mode switch continuity between terminals 1 and 4 under the following condition.

SNOW MODE SWITCH CONDITION AND CONTINUITY

CONDITION	CONTINUITY
Snow mode switch is ON	Should exist
Snow mode switch is OFF	Should not exist

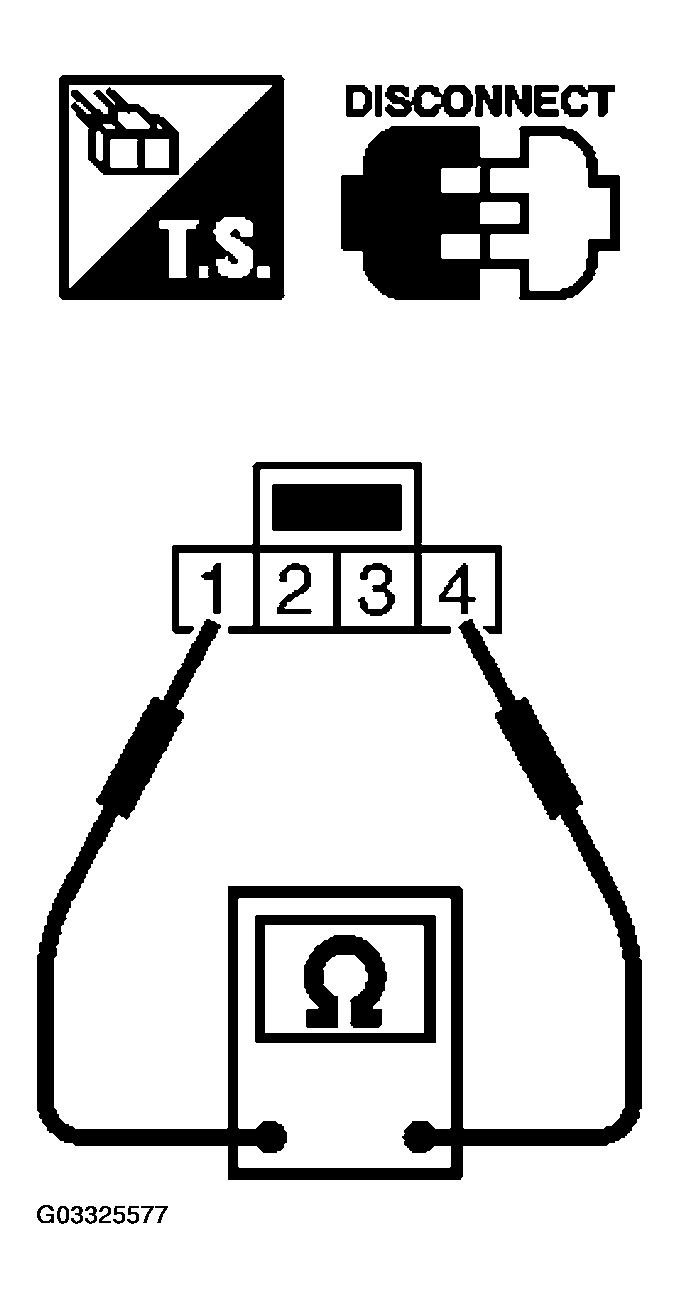

Fig 1: Checking Snow Mode Switch Continuity Between Terminals 1 & 4

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace snow mode switch.
