Fuse Block

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Fuse block is located under left side of instrument panel. To identify components on fuse block, see Fig 1.

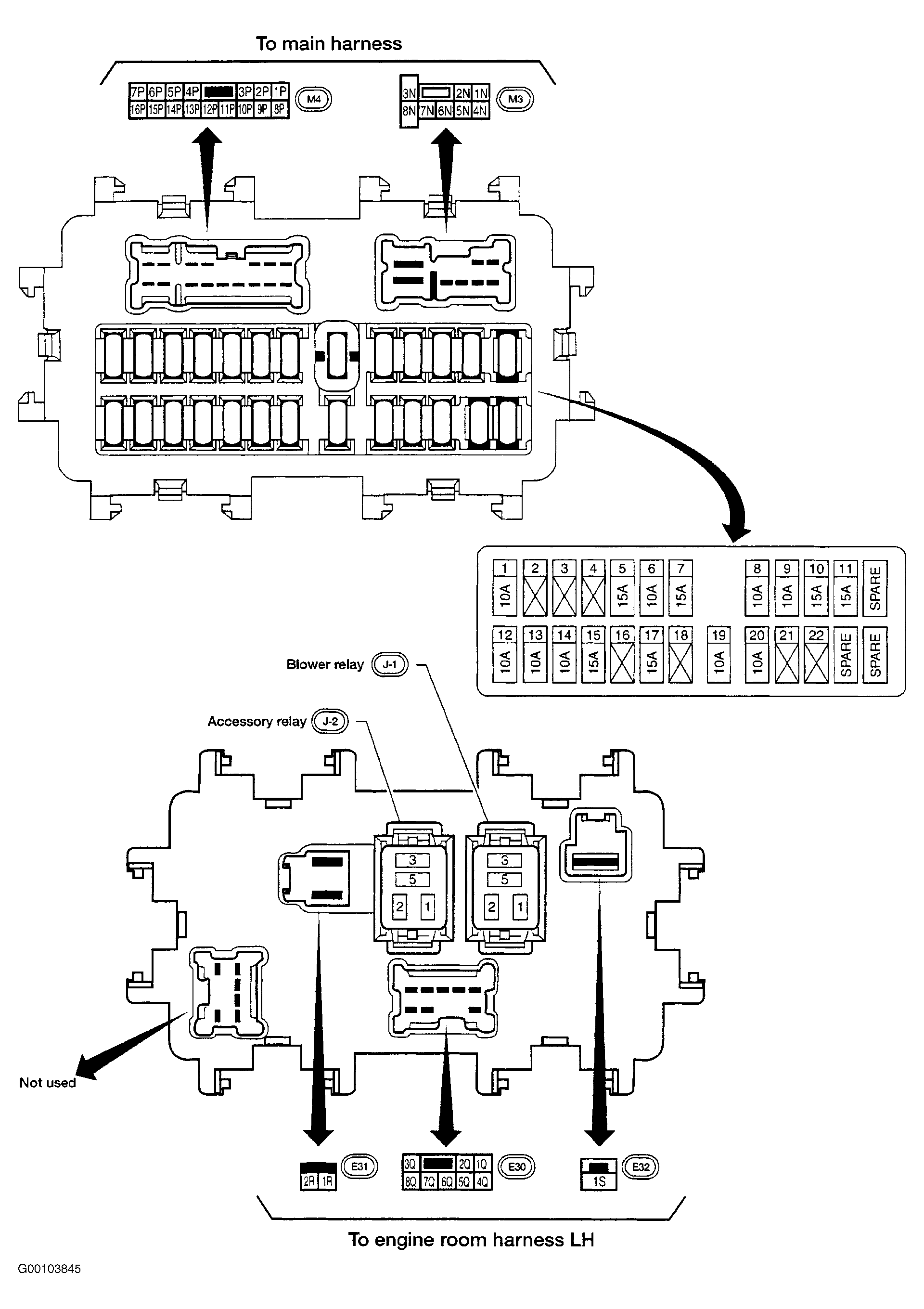

Fig 1: Identifying Fuse Block Fuses, Relays & Connectors
G00103845Courtesy of NISSAN MOTOR CO., U.S.A.
