Fuel Pump
WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect "fuel level sensor unit and fuel pump" harness connector.

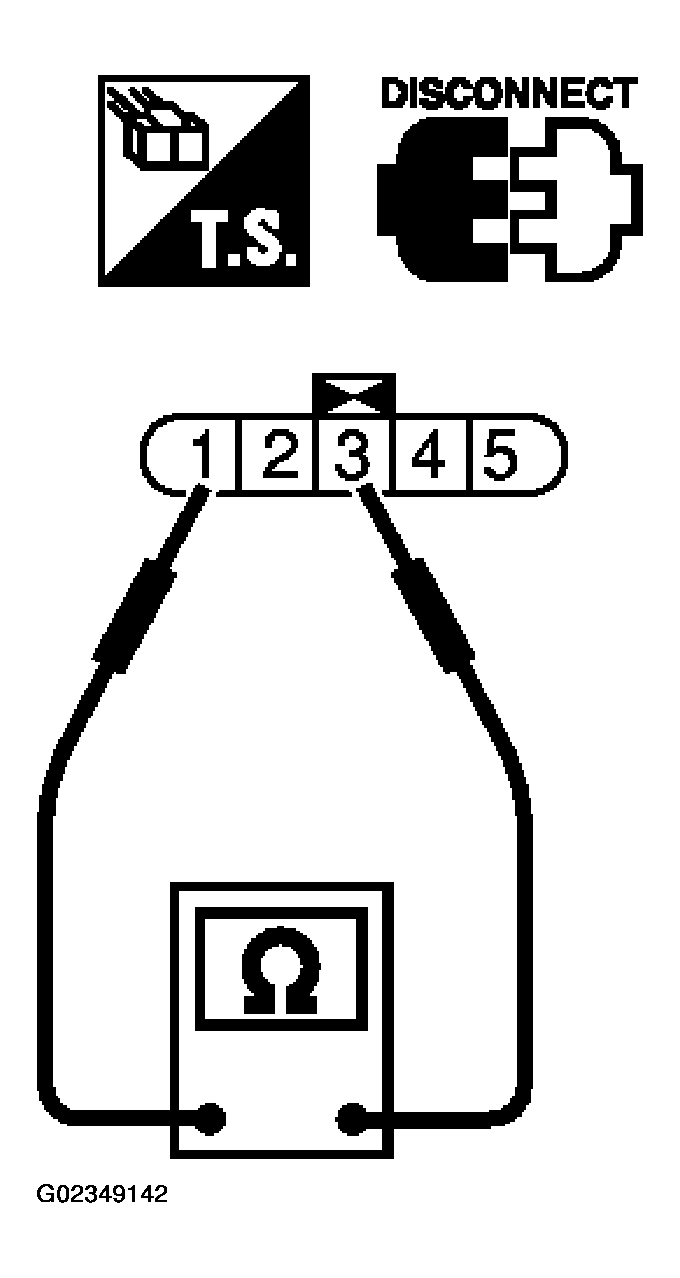

- Check resistance between "fuel level sensor unit and fuel pump" terminals 1 and 3.
Resistance: 0.2 - 5.0Ω [at 25°C (77°F)]
