Air Conditioning Unit: Components

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

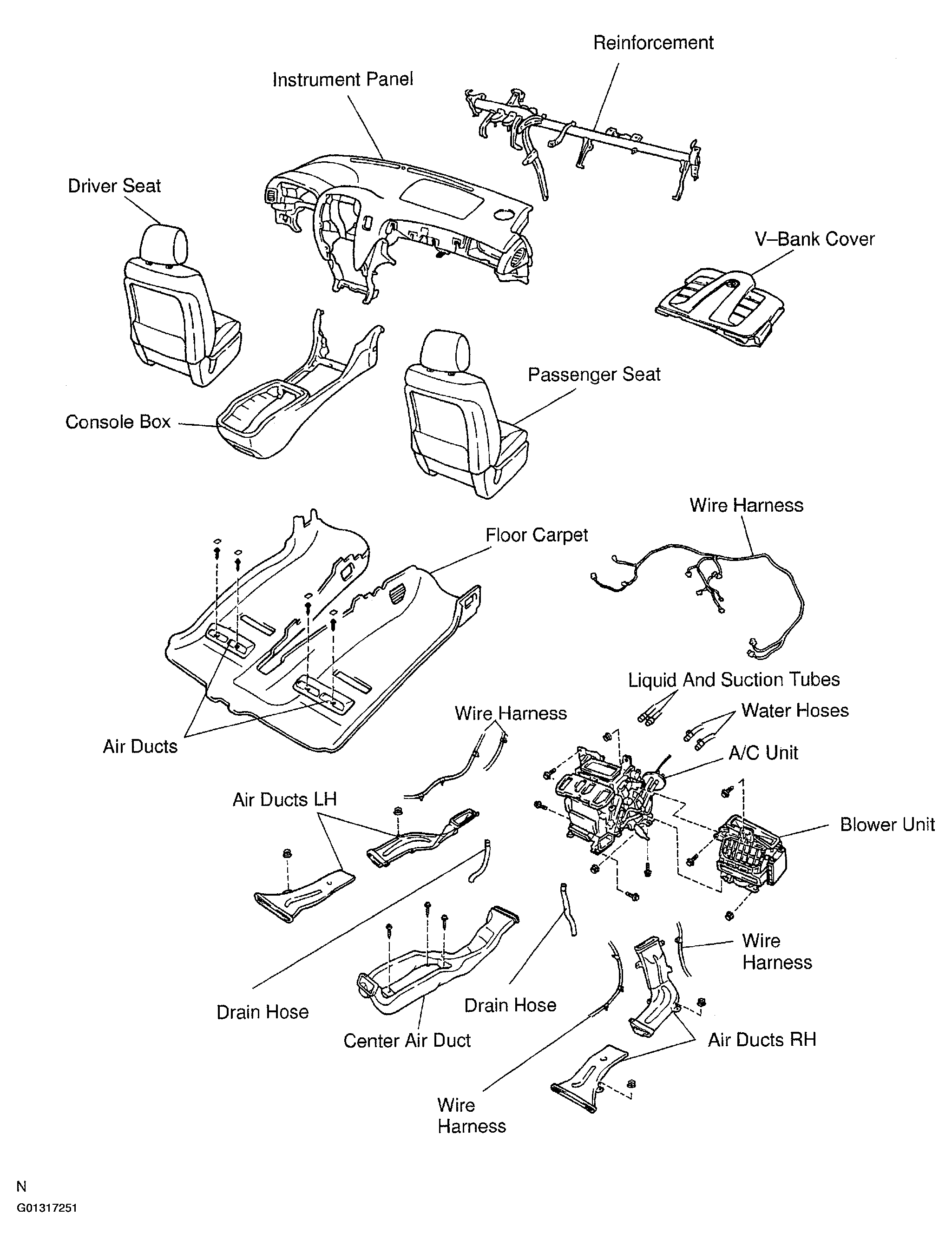

Fig 1: Exploded View Of Air Conditioning Unit Components (1 Of 2)
G01317251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

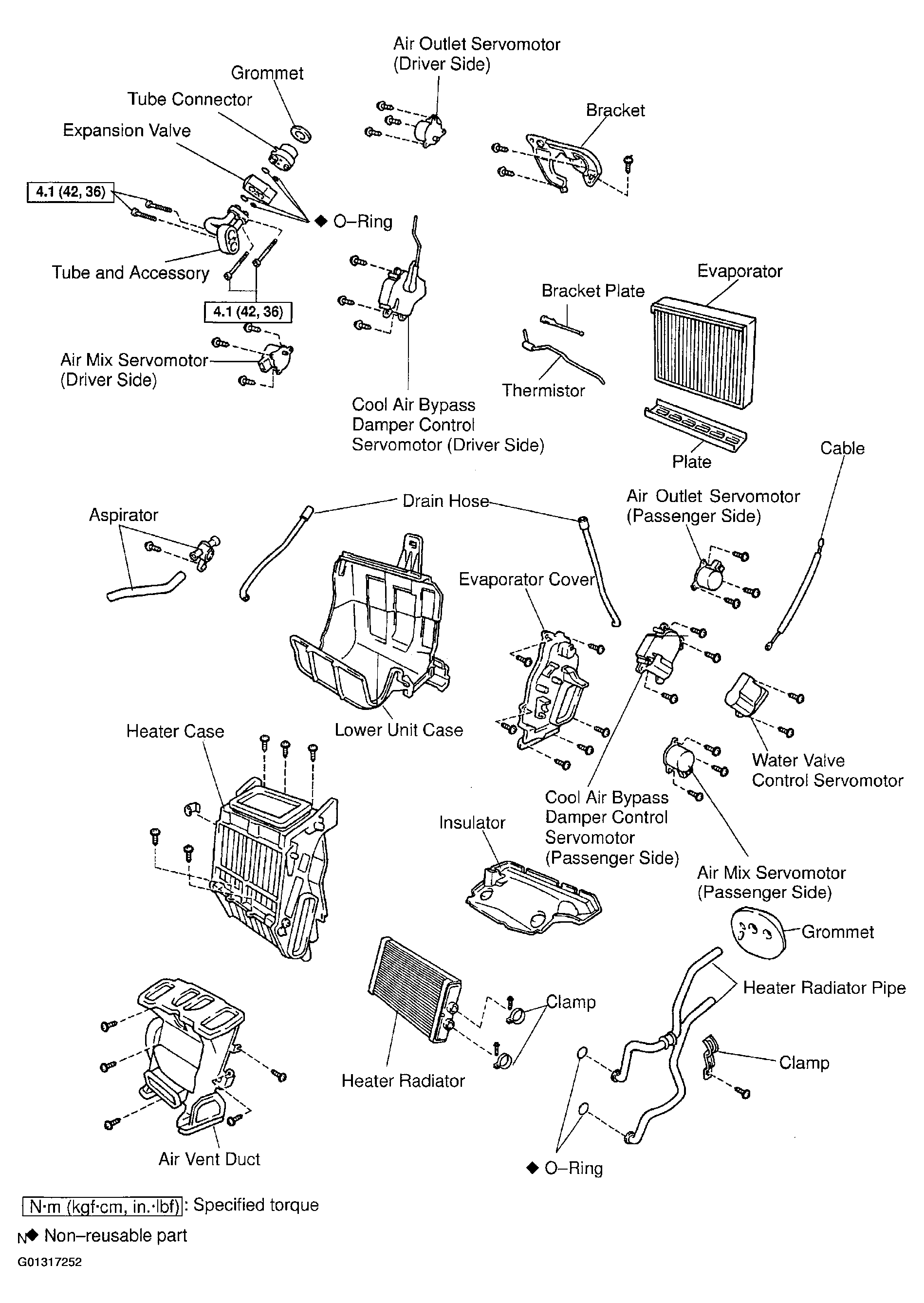

Fig 2: Exploded View Of Air Conditioning Unit Components (2 Of 2)
G01317252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
