Section 890 (Steering Column)
›
Steering Column ASSY
›
Components
Steering Column ASSY: Components
WARNING:
This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

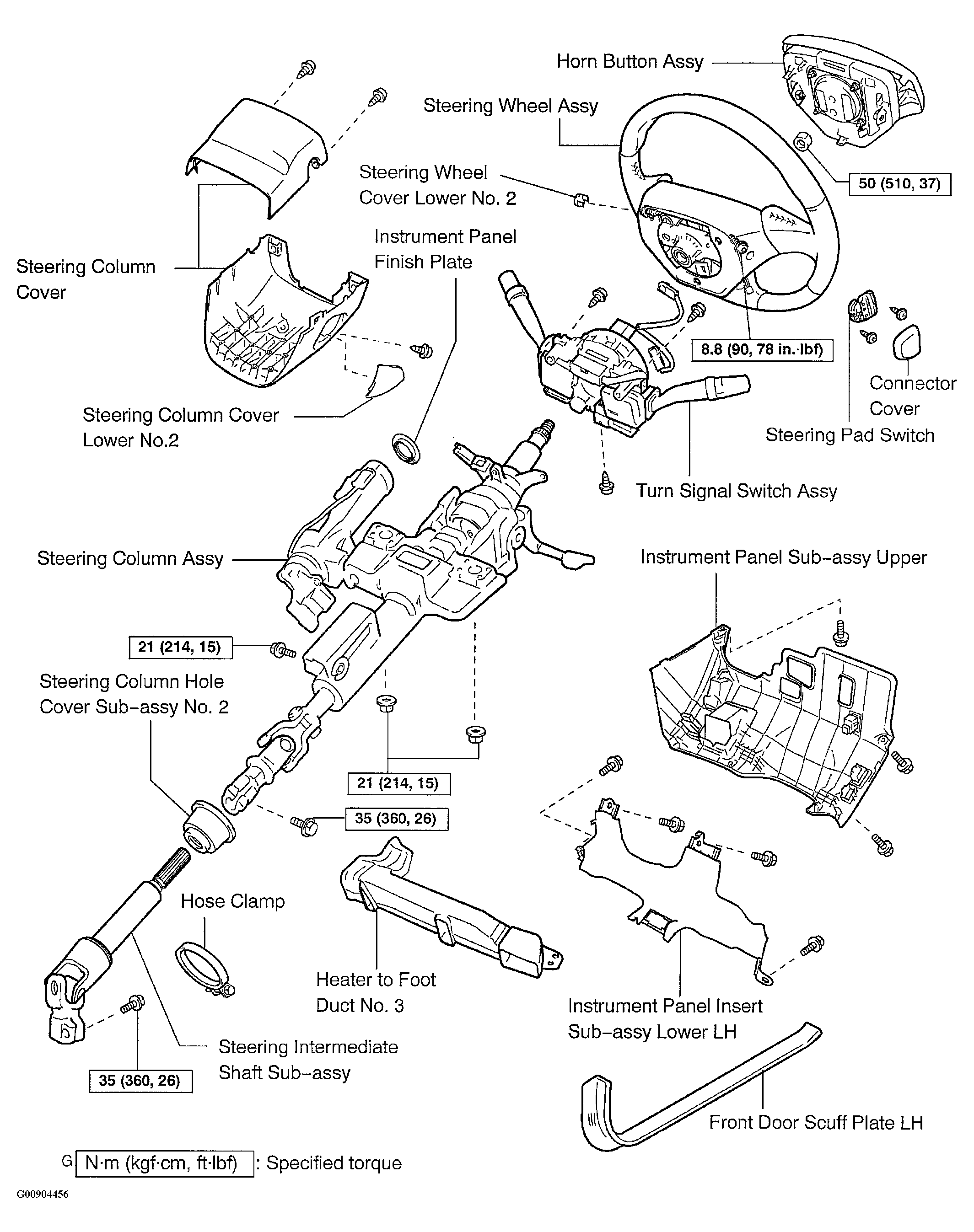

Fig 1: Identifying Steering Column Assy Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

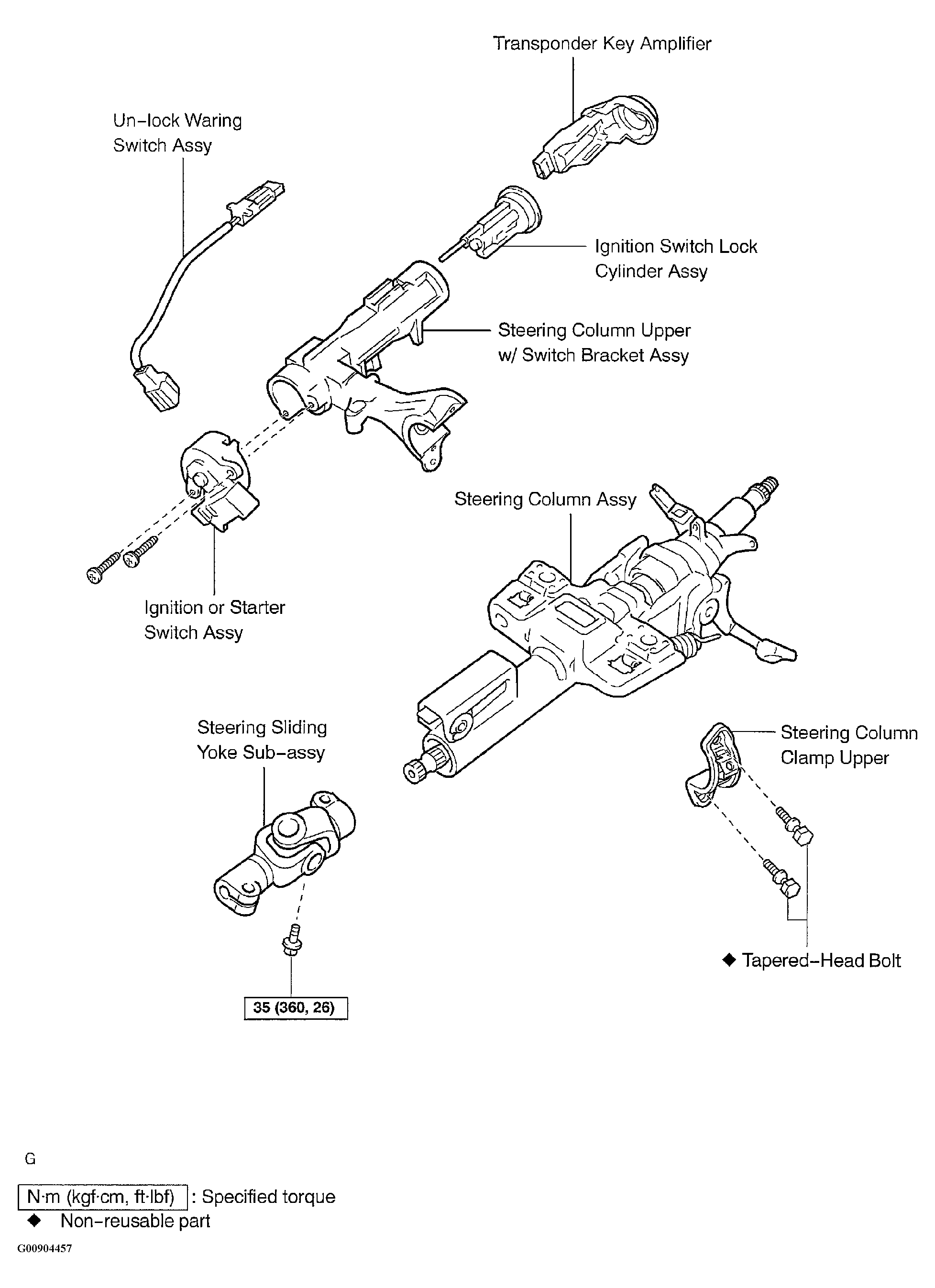

Fig 2: Identifying Steering Column Assy Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
