"Retained PWR"

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Connect "CONSULT-II" to the data link connector.

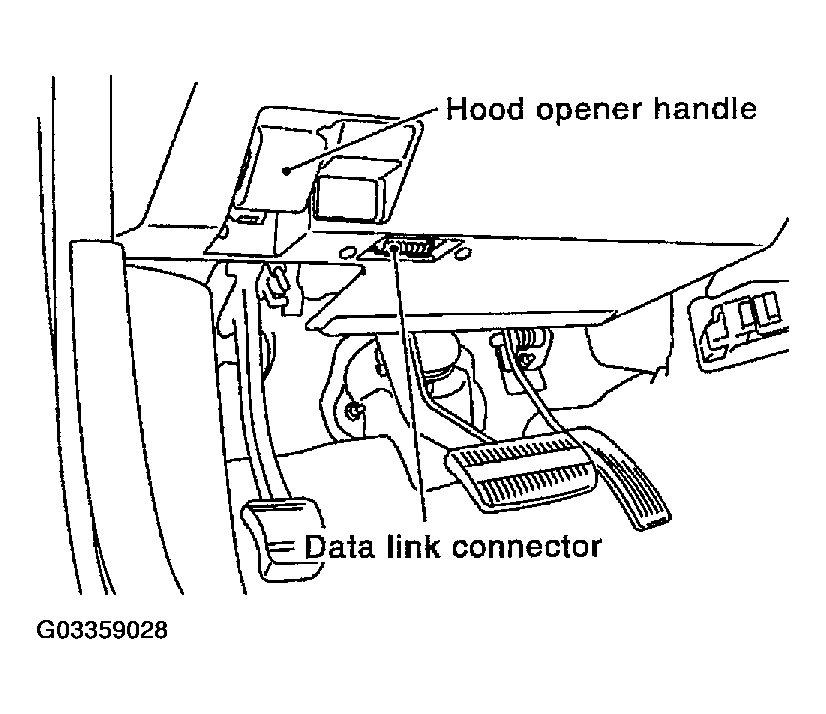

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: Displaying START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, go to Refer to, CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: Displaying BCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR".

Fig 4: Displaying RETAINED PWR
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode. "DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

Fig 5: Displaying DATA MONITOR, ACTIVE TEST And WORK SUPPORT
Courtesy of NISSAN MOTOR CO., U.S.A.
