Removal and Installation of Control Device and Cable

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Note that the select side lock plate for securing the control cable is different from the one on the shift side.
After assembly, make sure selector lever automatically returns to Neutral when it is moved to 1st, 2nd, or Reverse.

Refer to Fig 1 for removal and installation procedure.

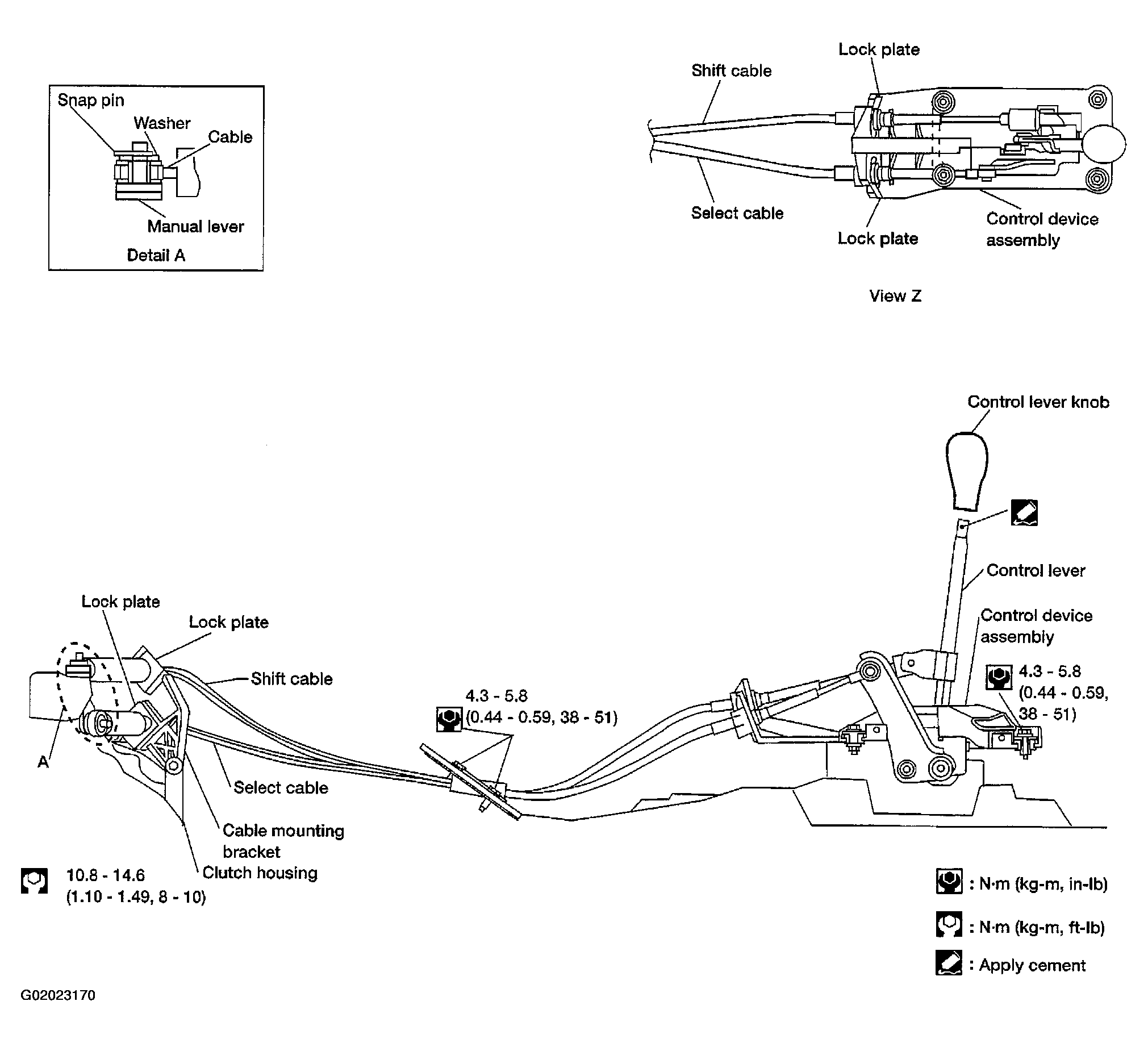

Fig 1: Exploded View Of Transaxle Control Linkage

Courtesy of NISSAN MOTOR CO., U.S.A.
