Special Service Tools

WARNING: This page is about a different variant/trim than selected.

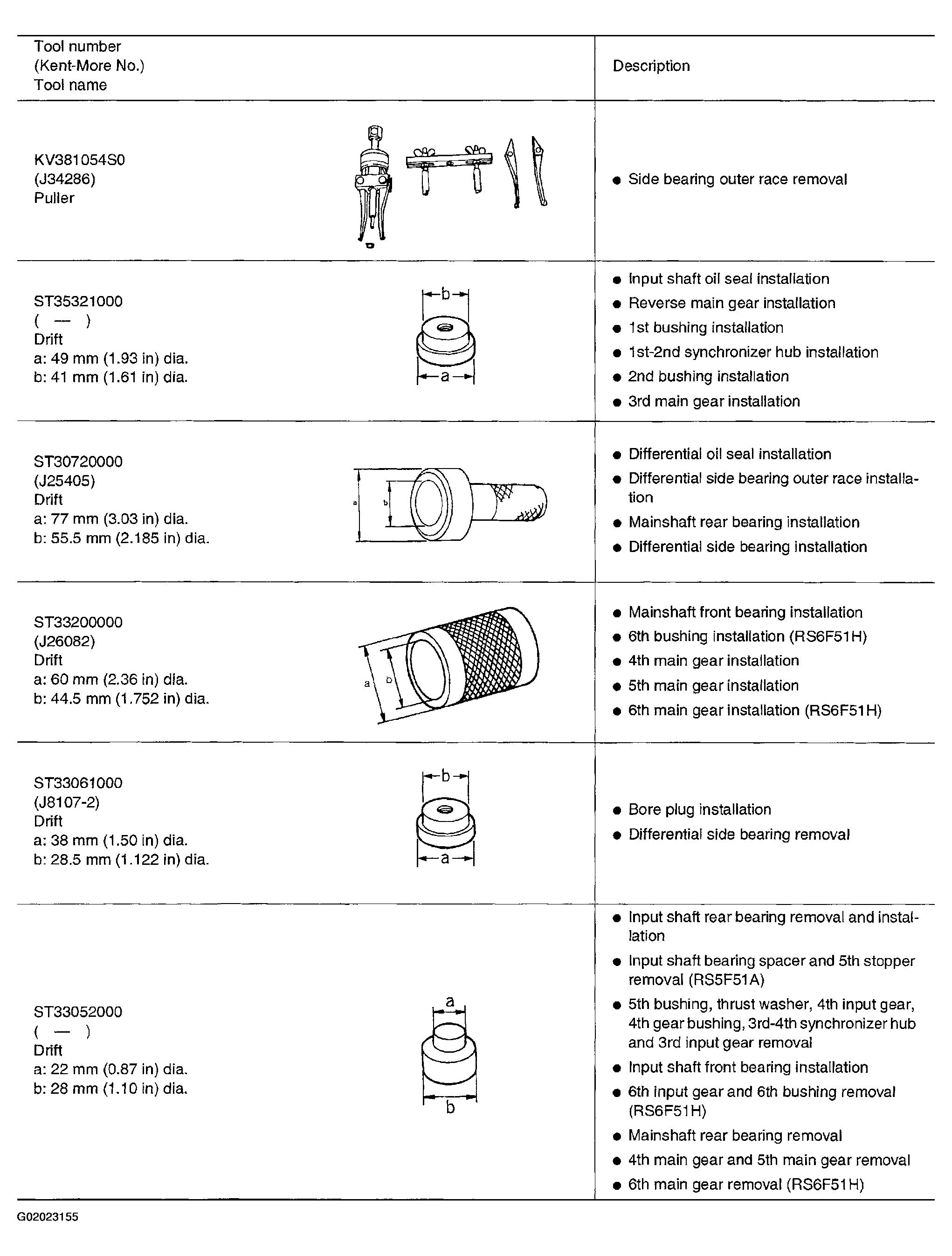

Fig 1: Identifying Special Service Tools (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

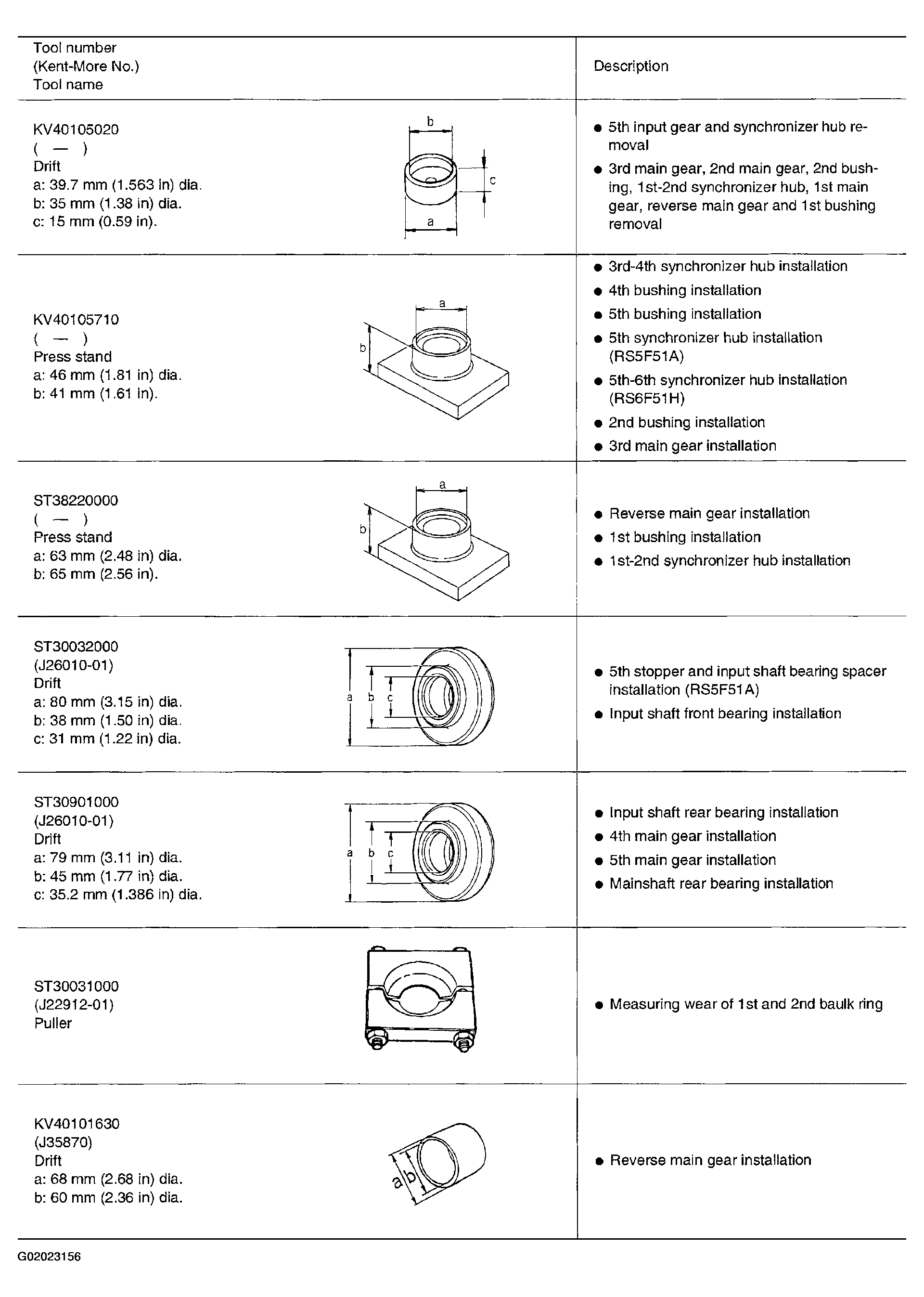

Fig 2: Identifying Special Service Tools (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

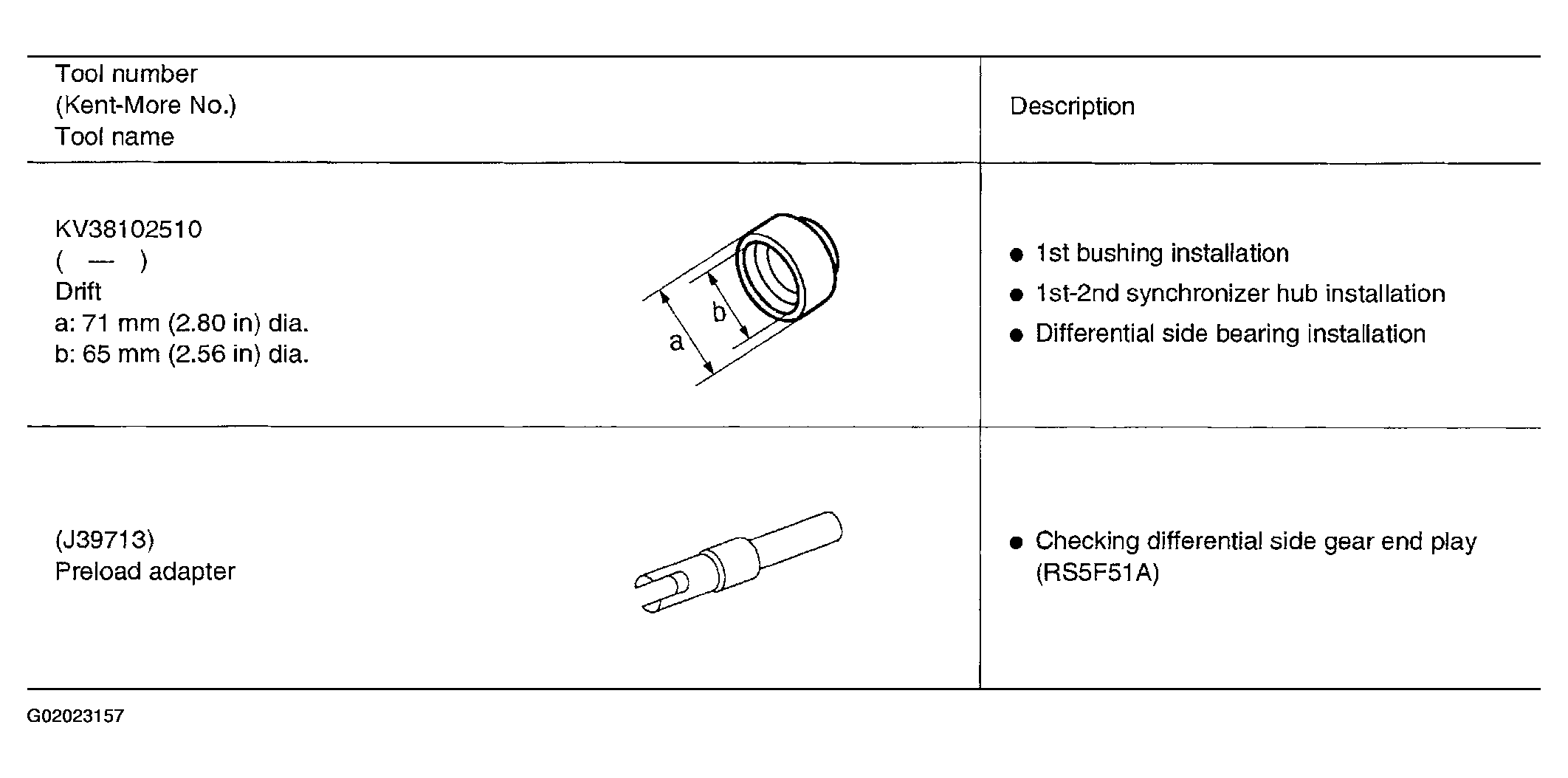

Fig 3: Identifying Special Service Tools (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
