Symptom 2:

WARNING: This page is about a different variant/trim than selected.

Ignition key cannot be removed when selector lever is set to P position. It can be removed when selector lever is set to any position except P   .

  1. CHECK KEY INTERLOCK CABLE

    Check key interlock cable for damage.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Repair key interlock cable. Refer to COMPONENTS .

  2. CHECK SELECTOR LEVER POSITION

    Check selector lever position for damage.

    OK or NG

    1. OK: GO TO 3.
    2. NG: Check selector lever. Refer to CONTROL CABLE ADJUSTMENT .

  3. CHECK POWER SOURCE
    1. Turn ignition switch to ON position. (Do not start engine.)
    2. Check voltage between stop lamp switch harness connector M26 terminal + (R/Y) and ground.
      Fig 1: Checking Power Source
      G02015969Courtesy of NISSAN MOTOR CO., U.S.A.

      Voltage: Battery voltage

    OK or NG

    1. OK: GO TO 4.
    2. NG: Check the following items:
      1. Harness for short or open between battery and stop lamp switch harness terminal +
      2. 10A fuse No. 2 [located in the fuse block (J/B)]
      3. Ignition switch. Refer to POWER DISTRIBUTION .

  4. CHECK INPUT SIGNAL (A/T DEVICE)

    Turn ignition switch to ON position. (Do not start engine.)

    • Check voltage between A/T device harness terminal 7 and ground.

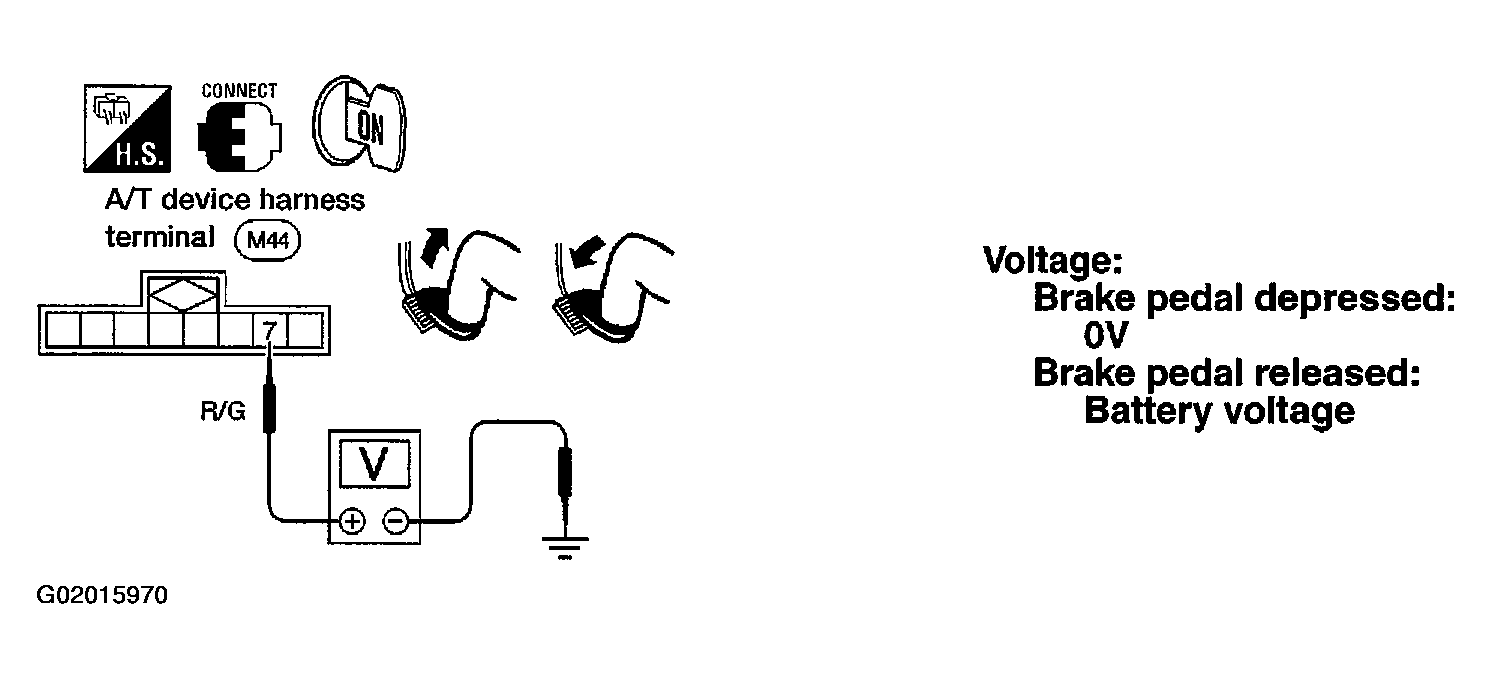

      Fig 2: Checking Input Signal (A/T Device)
      G02015970Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 5.
    2. NG: Check the following items:
      1. Harness for short and open between battery and stop lamp switch harness connector 1
      2. Harness for short or open between stop lamp switch harness connector 2 and A/T device harness connector 7
      3. Fuse
      4. Stop lamp switch. Refer to STOP LAMP SWITCH

  5. CHECK GROUND CIRCUIT
    1. Turn ignition switch to OFF position.
    2. Disconnect A/T device harness connector.
    3. Check continuity between A/T device harness terminal 6 and ground. If OK, check harness for short to ground and short to power.
      Fig 3: Checking Ground Circuit
      G02015971Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 6.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.

  6. CHECK RELAY CIRCUIT
    1. Turn ignition switch to ON.

      Check voltage between terminal 7 - 6 and 5 - 6.

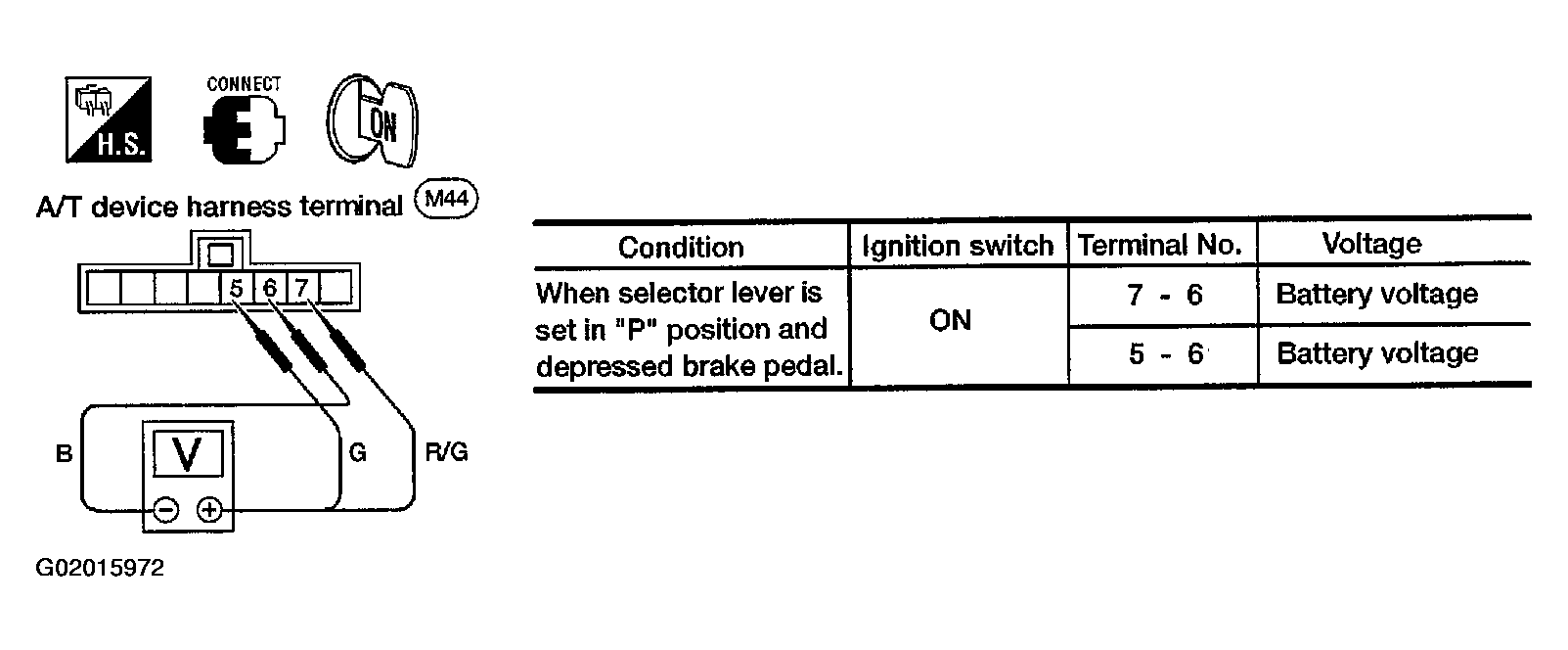

      Fig 4: Checking Relay Circuit
      G02015972Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 7.
    2. NG: Replace A/T device.

  7. CHECK PARK POSITION SWITCH

    Refer to A/T DEVICE CHECK .

    OK or NG

    1. OK: GO TO 8.
    2. NG: Replace A/T device.

  8. CHECK SHIFT LOCK SOLENOID

    Refer to A/T DEVICE CHECK

    OK or NG

    1. OK: GO TO 9.
    2. NG: Replace A/T device.

  9. SHIFT LOCK OPERATION
    1. Reconnect shift lock harness connector.
    2. Turn ignition switch from OFF to ON position. (Do not start engine.)
    3. Recheck shift lock operation.

    OK or NG

    1. OK: INSPECTION END.
    2. NG:
      1. Perform A/T device input/output signal inspection test.
      2. If NG, recheck harness connector connection.
