Band Servo Piston Assembly: Components

WARNING: This page is about a different variant/trim than selected.

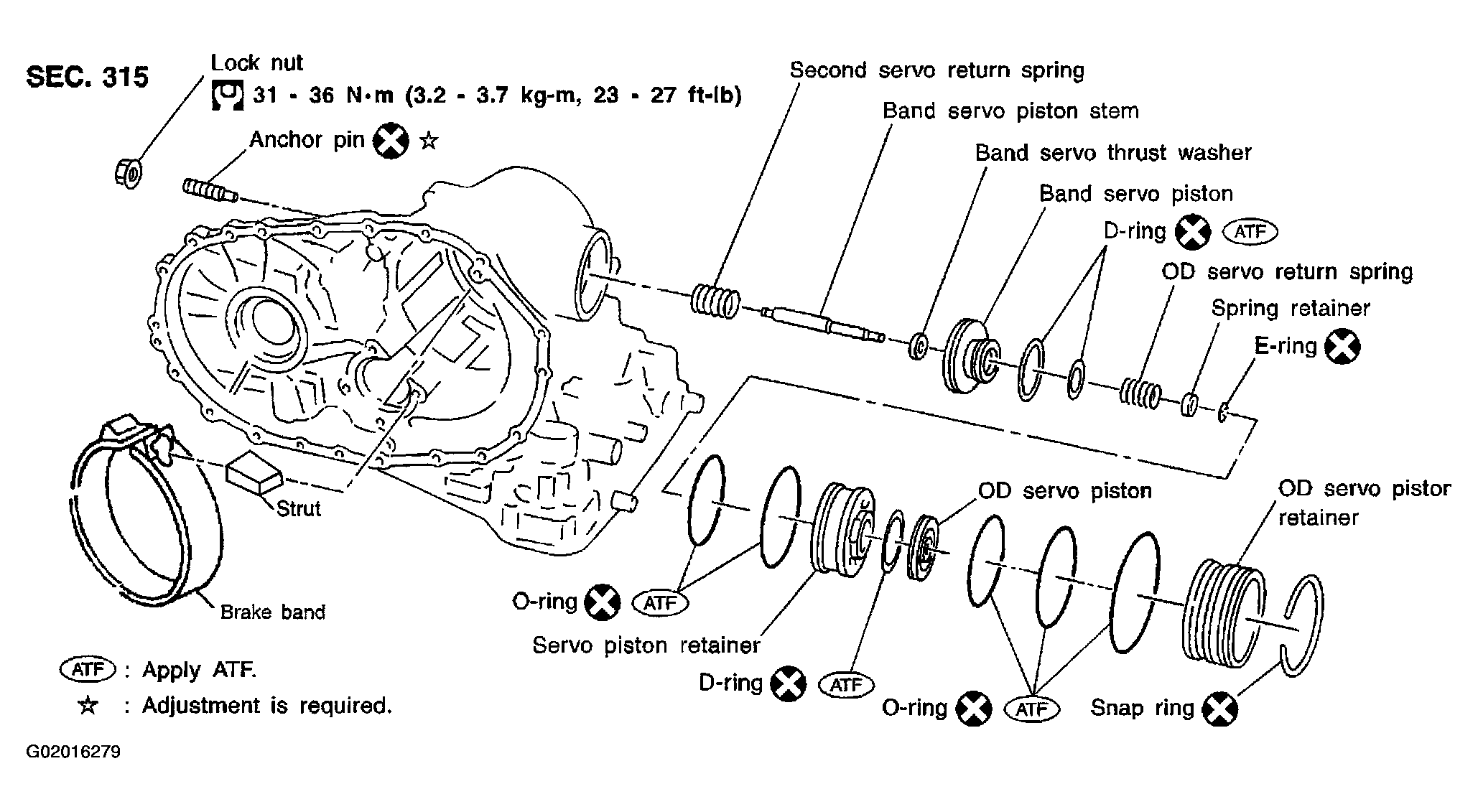

Fig 1: Exploded View Of Band Servo Piston Assembly Components & Torque Specifications
G02016279Courtesy of NISSAN MOTOR CO., U.S.A.
