Retainer Plate (For Control Valve Lower Body)

WARNING: This page is about a different variant/trim than selected.

Refer to CONTROL VALVE LOWER BODY .

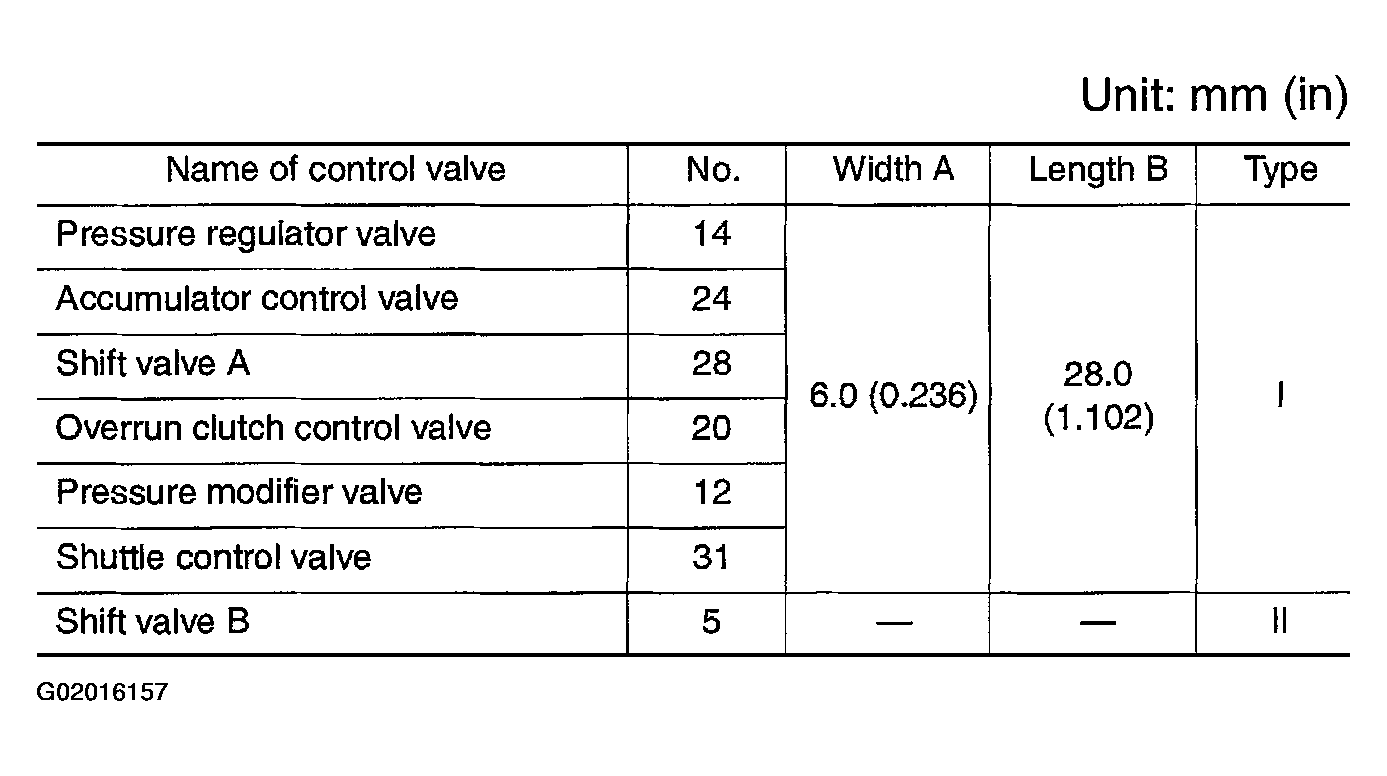

Fig 1: Lower Body Retainer Plate Control Valve Specifications
G02016157Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Lower Body Retainer Plate Control Valve Width & Length
G02016158Courtesy of NISSAN MOTOR CO., U.S.A.
