Control Valve Upper Body: Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

Lay control valve body down when installing valves. Do not stand the control valve body upright .

Fig 1: Placing Control Valve Body Down When Installing Control Valves
Courtesy of NISSAN MOTOR CO., U.S.A.

Lubricate the control valve body and all valves with ATF. Install control valves by sliding them carefully into their bores.

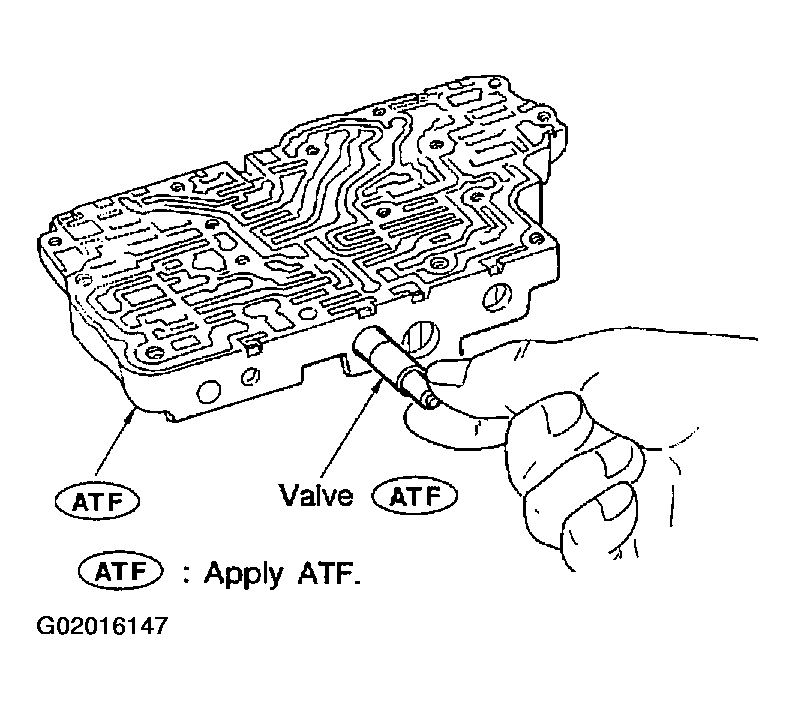

Fig 2: Installing Control Valves
Courtesy of NISSAN MOTOR CO., U.S.A.
- Be careful not to scratch or damage valve body .
- Wrap a small screwdriver with vinyl tape and use it to insert the valves into their proper positions.

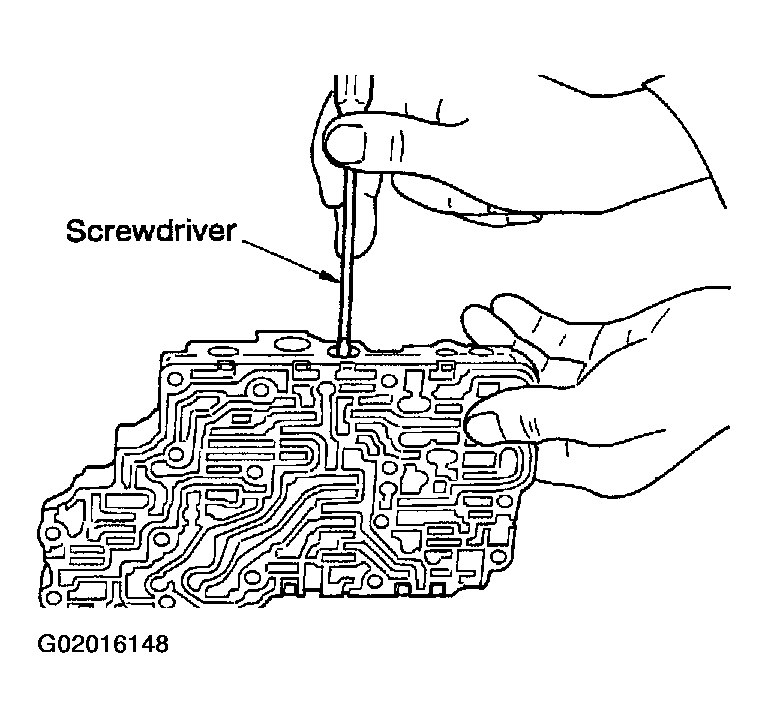

  Fig 3: Inserting Valves Into Proper Positions
  Courtesy of NISSAN MOTOR CO., U.S.A.
