Retainer Plate (For Control Valve Upper Body)

WARNING: This page is about a different variant/trim than selected.

Refer to CONTROL VALVE UPPER BODY .

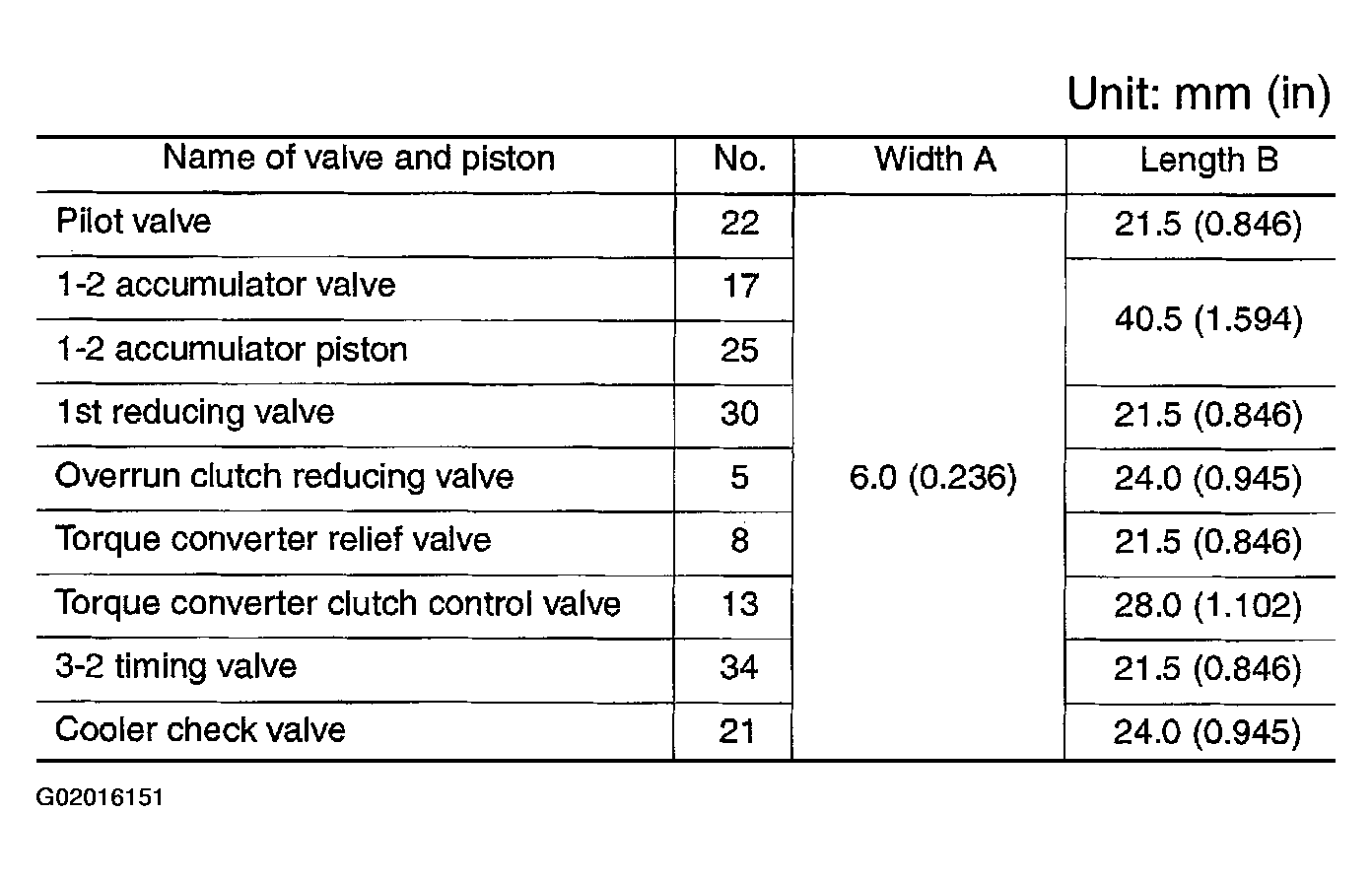

Fig 1: Upper Body Retainer Plate Control Valve Specifications
G02016151Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Upper Body Retainer Plate Control Valve Width & Length
G02016152Courtesy of NISSAN MOTOR CO., U.S.A.
