Manual Shaft: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove detent spring from transmission case.

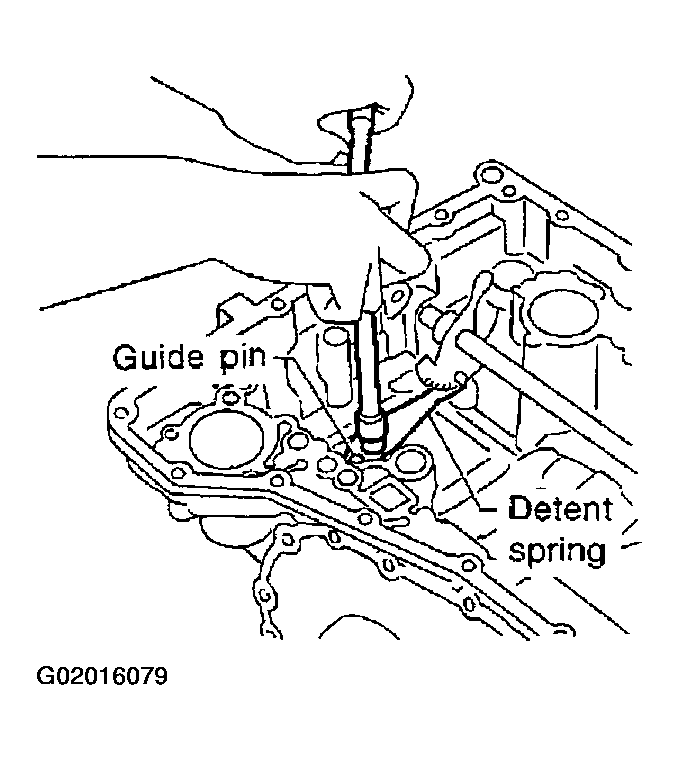

    Fig 1: Removing Detent Spring From Transmission Case
    G02016079Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Drive out manual plate retaining pin using Tool.
    Fig 2: Removing Manual Plate Retaining Pin
    G02016080Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive and pull out parking rod plate retaining pin using Tool.

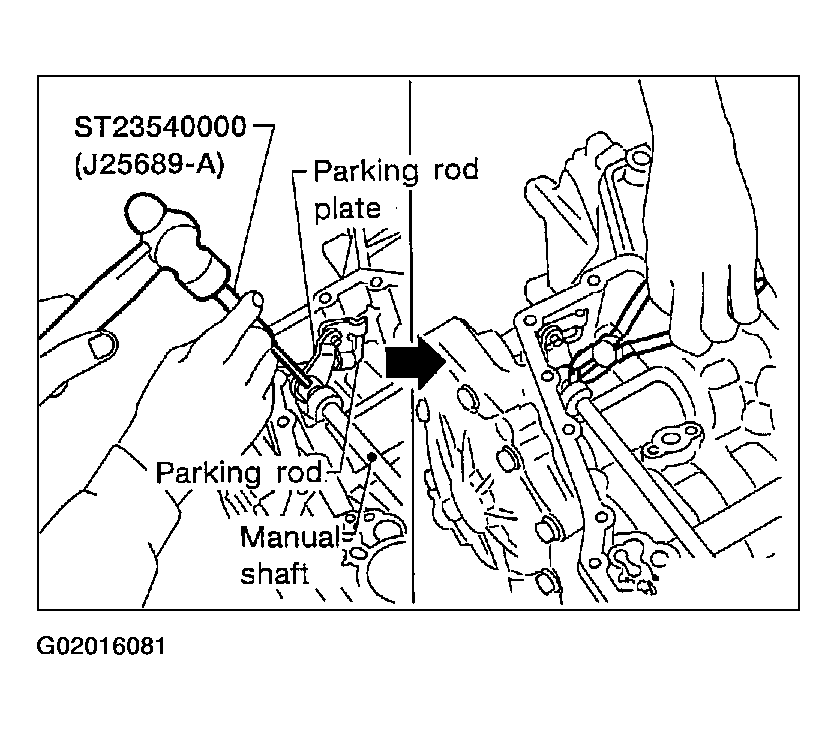

    Fig 3: Removing Parking Plate & Parking Rod
    G02016081Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove parking rod plate from manual shaft.
  5. Draw out parking rod from transmission case.
  6. Pull out manual shaft retaining pin.

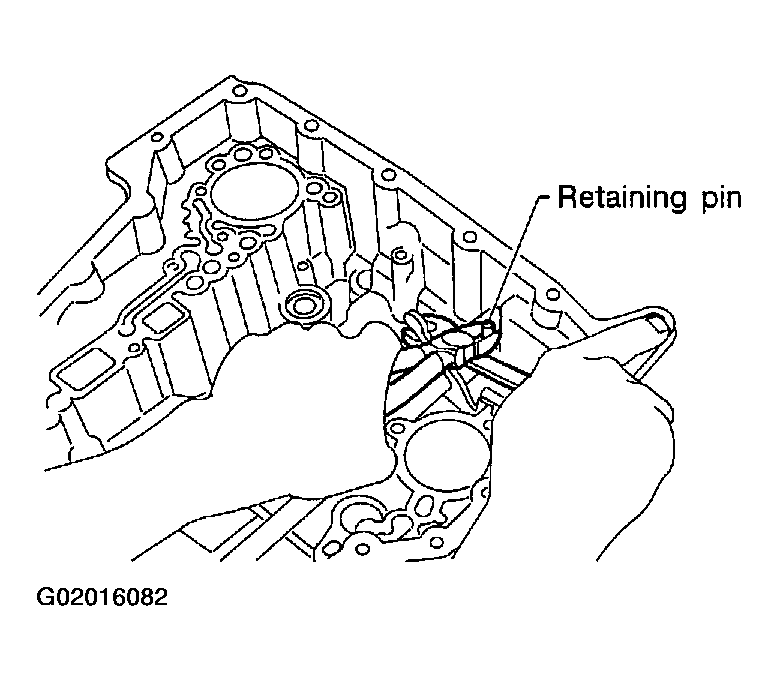

    Fig 4: Removing Manual Shaft Retaining Pin
    G02016082Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove manual shaft and manual plate from transmission case.
  8. Remove manual shaft oil seal.

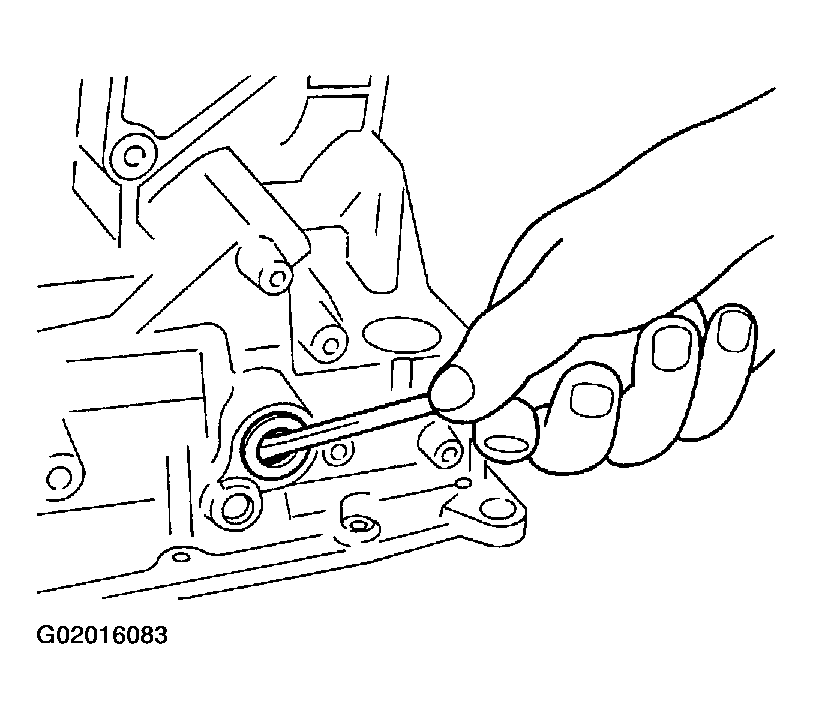

    Fig 5: Removing Manual Shaft Oil Seal
    G02016083Courtesy of NISSAN MOTOR CO., U.S.A.
