Section 11 (Automatic Transaxle Re4F03B)
›
Overall System
›
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

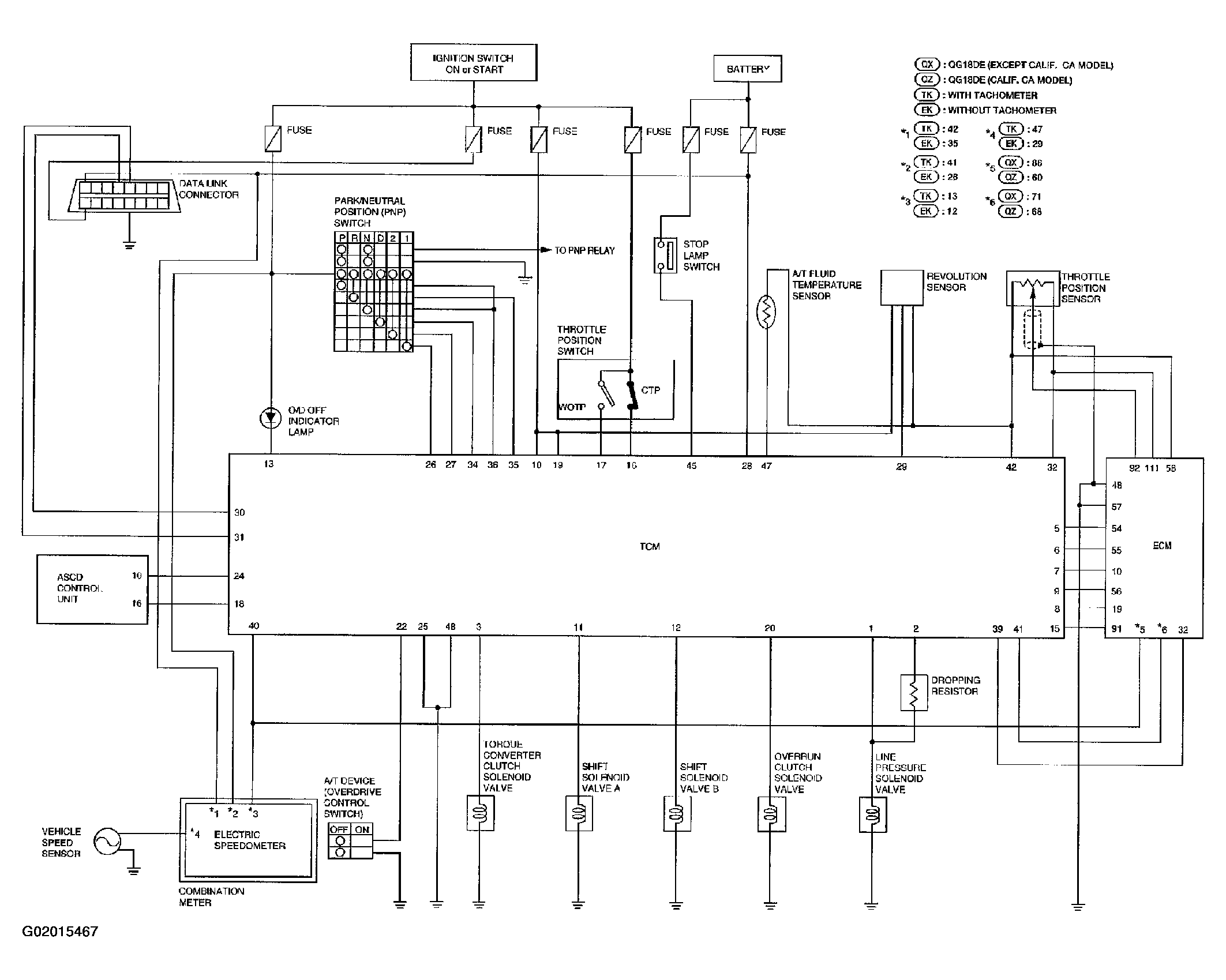

Fig 1: Automatic Transaxle RE4F03B Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
