Section 11 (Automatic Transaxle Re4F03B)
›
Overall System
›
Control Valve
›
Function Of Control Valves
Function Of Control Valves
WARNING:
This page is about a different variant/trim than selected.

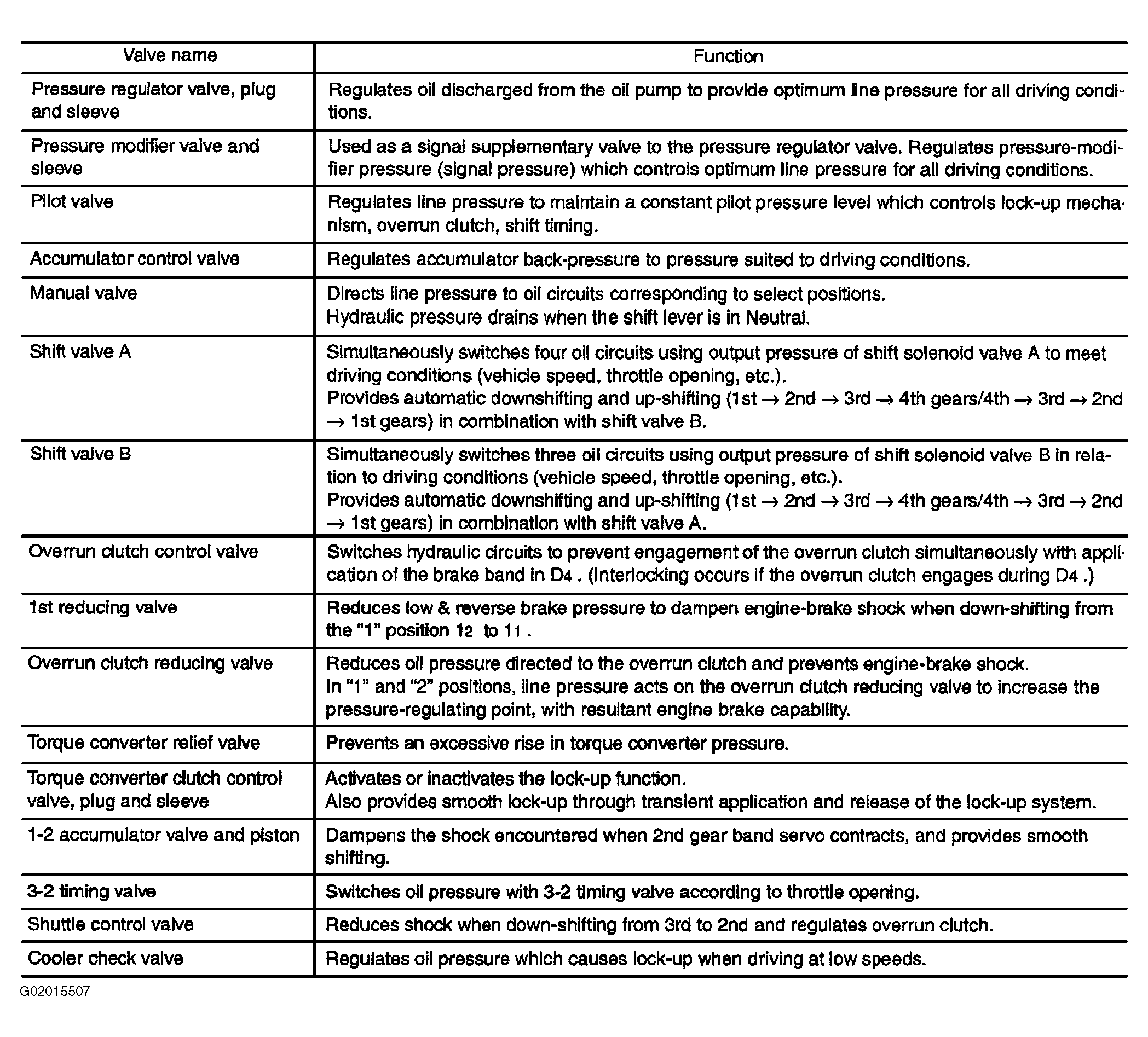

Fig 1: Identifying Control Valves & Functions
Courtesy of NISSAN MOTOR CO., U.S.A.
