Shift Mechanism: Construction

WARNING: This page is about a different variant/trim than selected.

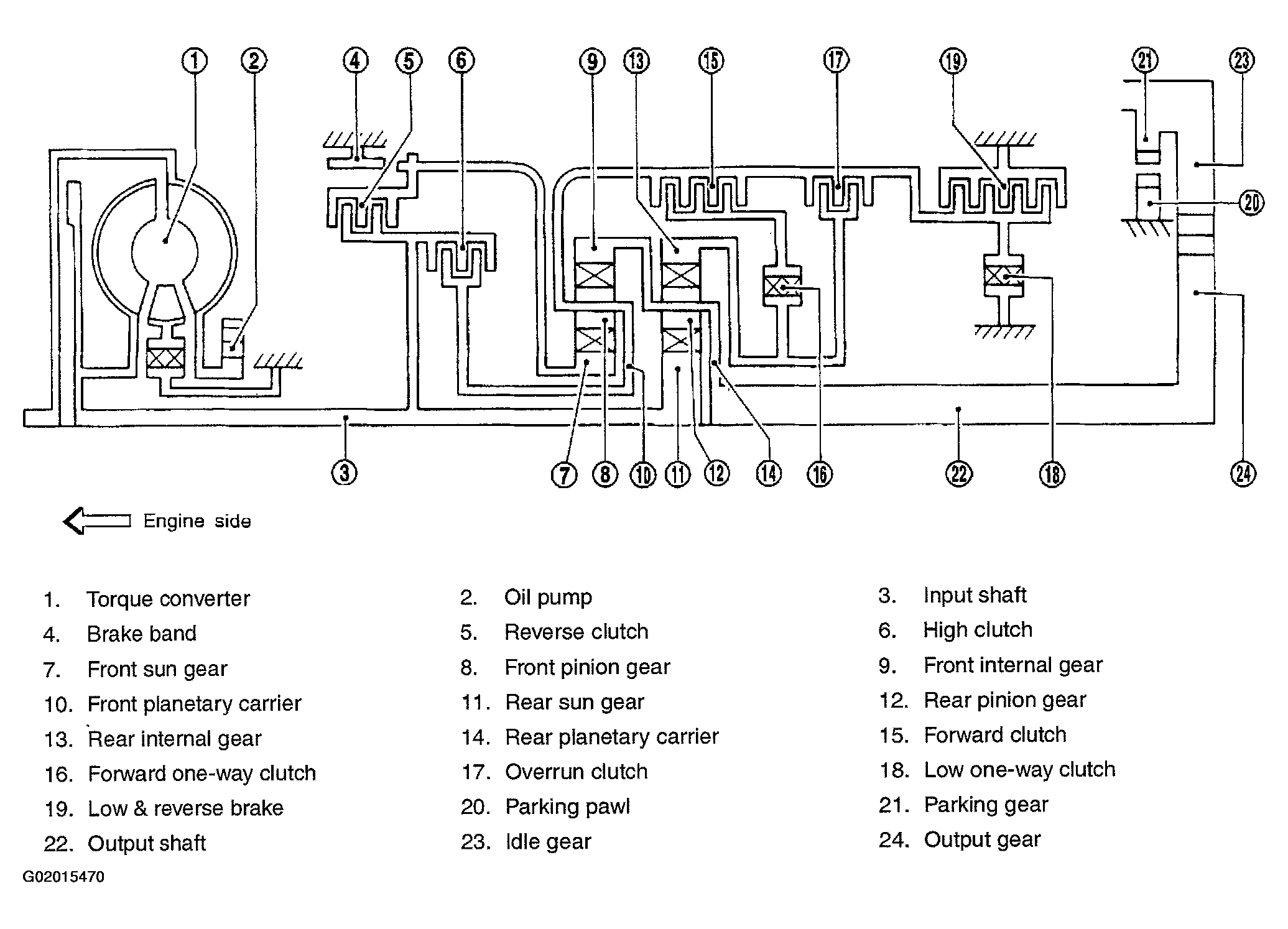

Fig 1: Identifying Automatic Transaxle Shift Mechanism Components

Courtesy of NISSAN MOTOR CO., U.S.A.
