Section 11 (Automatic Transaxle Re4F03B)
›
Service Data And Specifications (SDS)
›
Oil Pump
Oil Pump
WARNING:
This page is about a different variant/trim than selected.

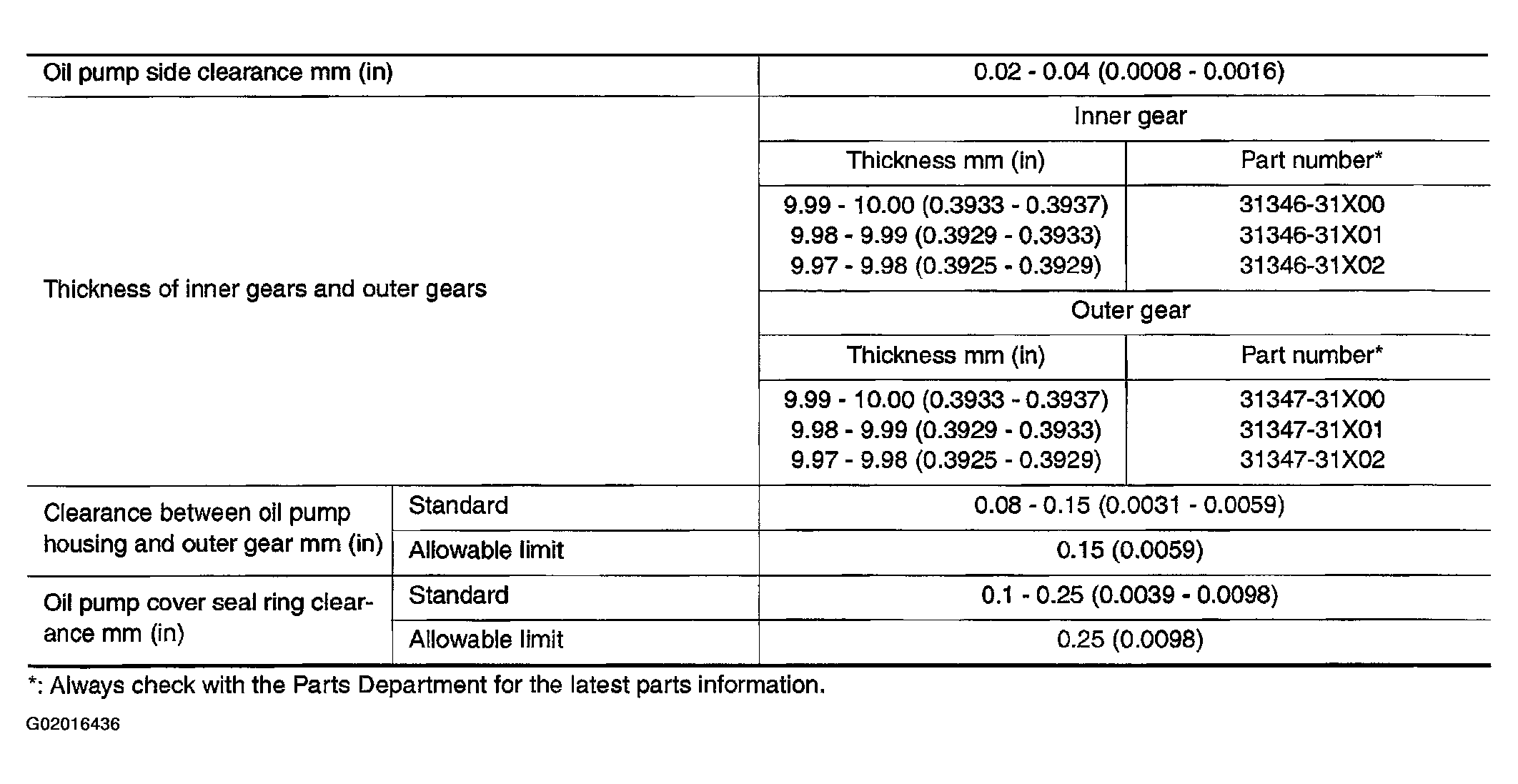

Fig 1: Oil Pump Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
