Section 12 (Automatic Transaxle Re4F04B)
›
On Board Diagnostic System Description
›
Consult-II
›
DTC Work Support Mode
DTC Work Support Mode
WARNING:
This page is about a different variant/trim than selected.

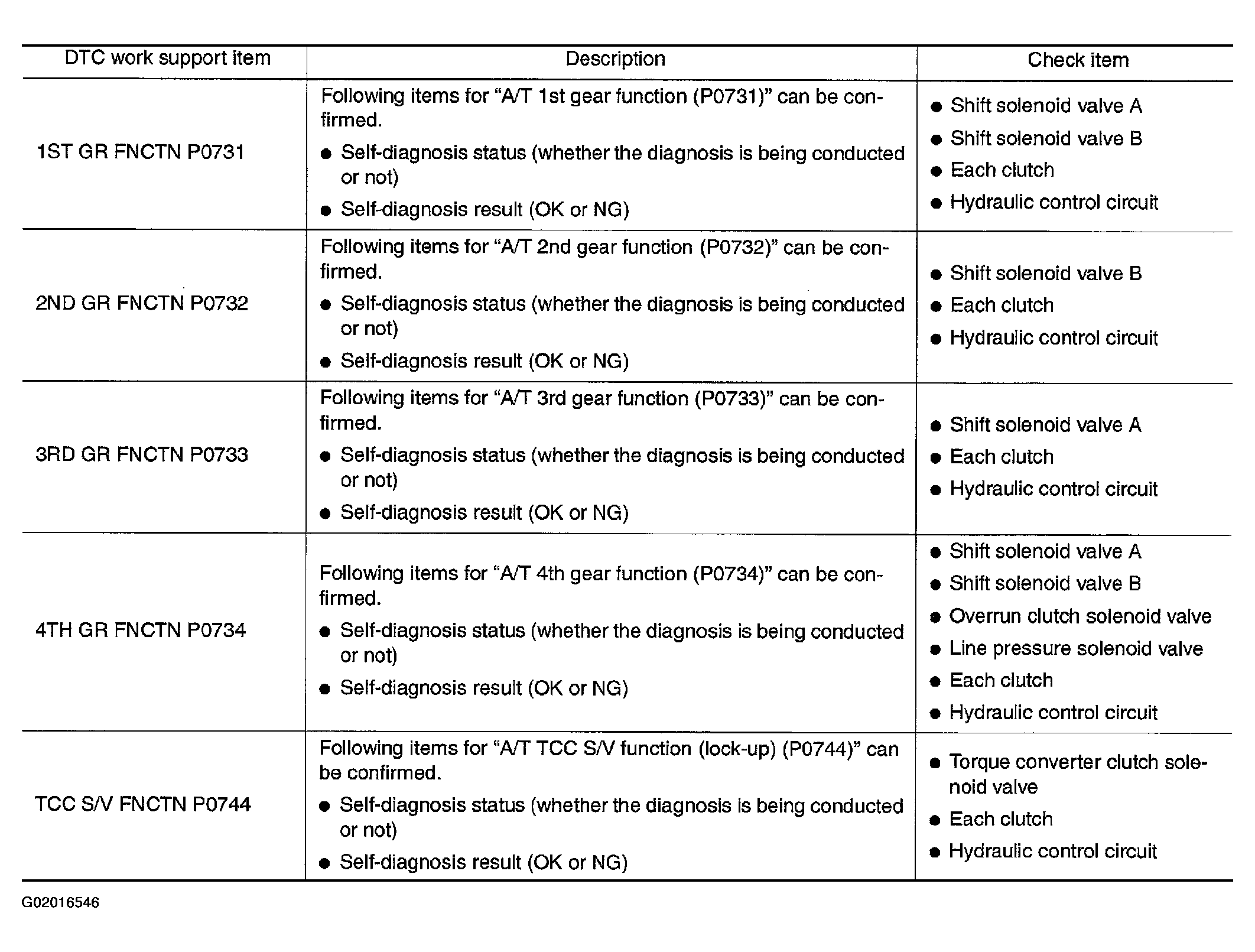

Fig 1: DTC Work Support Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
