Low & Reverse Brake: Components

WARNING: This page is about a different variant/trim than selected.

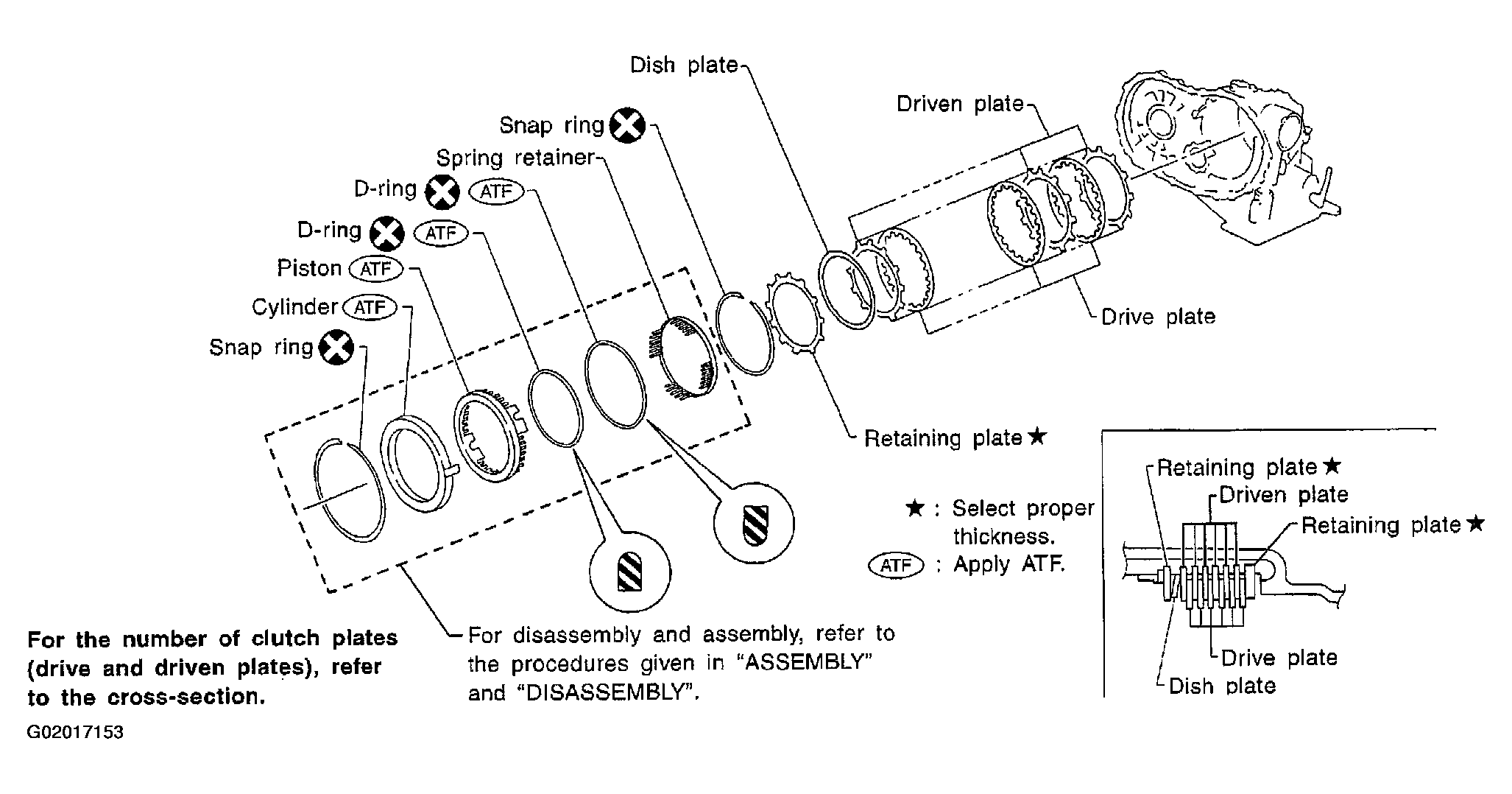

Fig 1: Exploded View Of Low And Reverse Brake Components
G02017153Courtesy of NISSAN MOTOR CO., U.S.A.
