Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove tank with Tool.

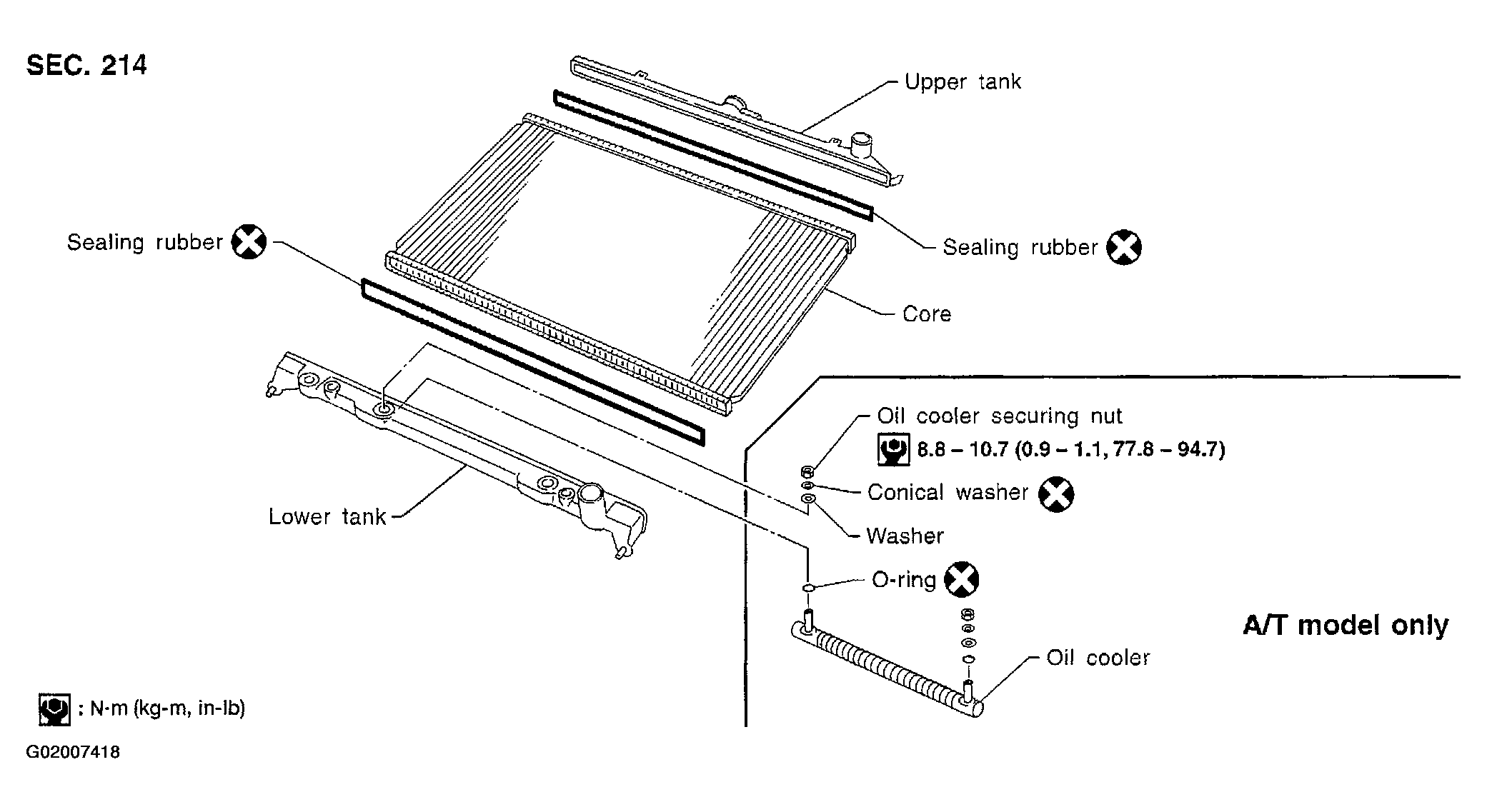

Fig 1: Identifying Radiator Components
Courtesy of NISSAN MOTOR CO., U.S.A.

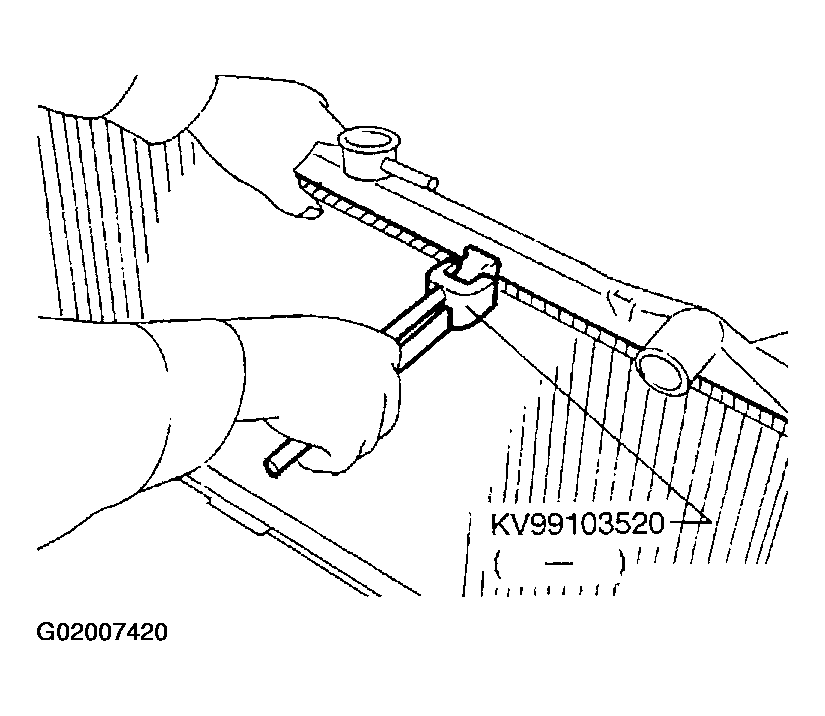

Fig 2: Separating Tank With Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Be careful not to damage tank.
- Grip the crimped edge and bend it upwards so that Tool slips off.
  Do not bend excessively.

  Fig 3: Gripping Crimped Edge To Bend It
  Courtesy of NISSAN MOTOR CO., U.S.A.

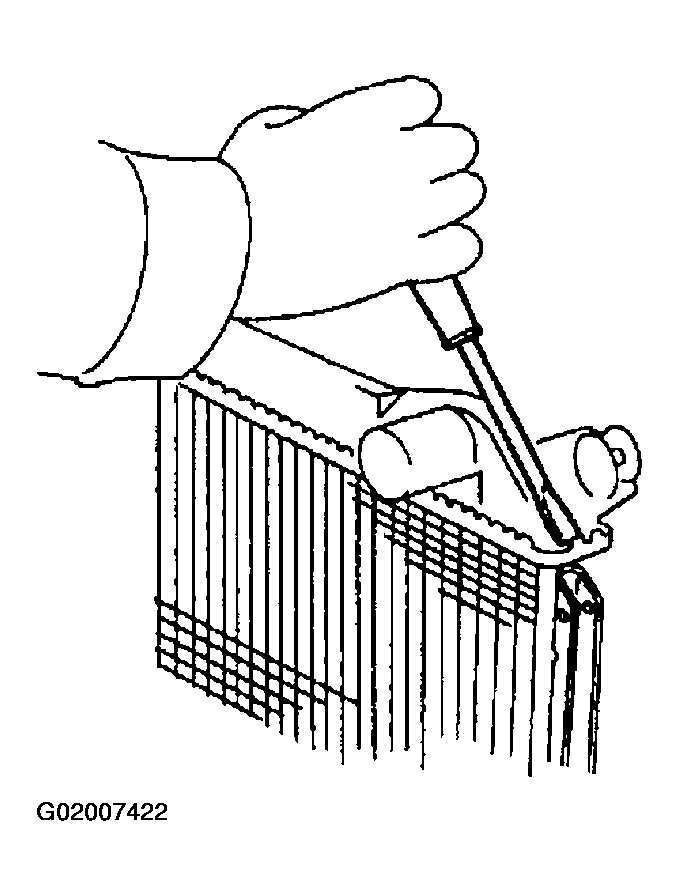

- In areas where Tool cannot be used, use a screwdriver to bend the edge up.

  Fig 4: Using Screwdriver To Bend Edge Up
  Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure the edge stands straight up.

Fig 5: Straightening Edges
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil cooler from tank (A/T model only).
