ESSENTIAL TOOL: OBD-II CONNECTOR KIT, J42992-2000UPD

TECHNICAL SERVICE BULLETIN

Reference Number(s): NTB02-032, Date of Issue: March 20, 2002

NISSAN:	2000-2002 Nissan Vehicles
CLASSIFICATION:	TE02-006
SECTION:	Tool and Equipment
APPLIED VEHICLE(S):	2000-2002 Nissan Vehicles - All

SERVICE INFORMATION

Special tool #J-42992-2000UPD ("OBD-II Connector Kit" - see Fig 1 ) is now available as an update kit to J-42992-98KIT. It should be used along with previously released kits (J-42992-98KIT and J-38751-95NI) when wiring harnesses, connectors, and terminals require repair. It contains new Tray #9 as well as two tools to be added to Tray #7 and Tray #8.

NOTE: Please print this Technical Service Bulletin and keep it with the Harness Repair Kits.

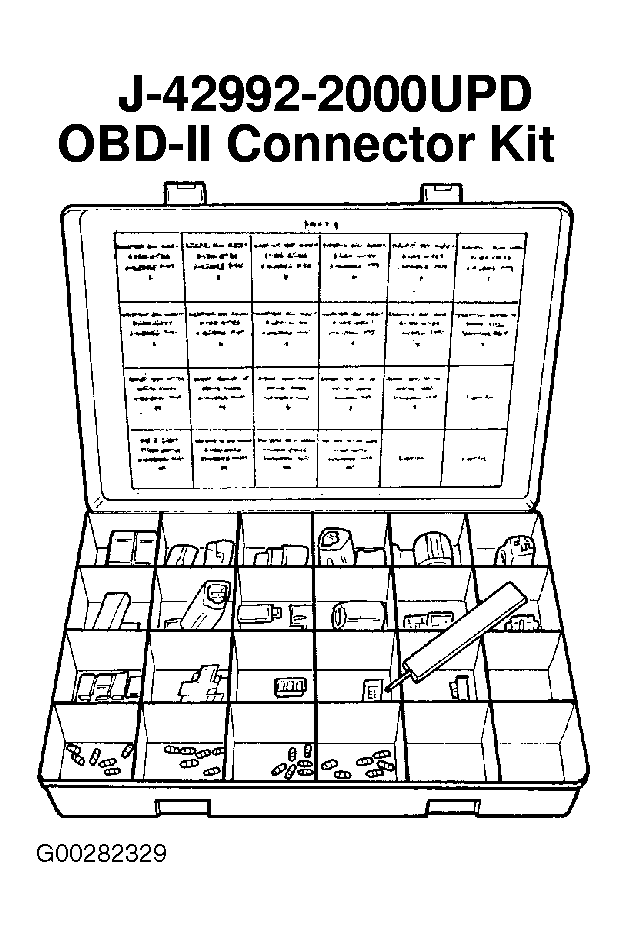

Fig 1: J-42992-2000UPD OBD-II Connector Kit

Refer to the Claims Information section of this bulletin for the method of billing connector parts on warranty repairs.
Refer to the "Essential Tool Shipment" (Fig 2 ) flyer for additional information.
An Instruction Sheet was shipped with the kit. It shows where to store updated kit components. Refer to "Instruction Sheet for J-42992-2000UPD" (Fig 3 ) for additional information.
This special tool is "Essential" and has been automatically sent to all Nissan dealers. The non-vehicle account will be billed.
Additional update kits or refill quantities of components can be ordered from Tech-Mate.
Refer to the Tool Catalog Price List in ASIST under "INFO," "Toolbox," "Tool & Equipment," for refill quantity prices.

For information on which connectors to use and how to perform repairs, refer to:

The revised application guide included with the J-42992-2000UPD Kit.
The appropriate Electronic Service Manual (ESM).
The "OBD-II Connector And Terminal Pin Replacement And Check Procedure Manual."

NOTE: This manual was originally published in 1998. A new version will be released in a future edition of ASIST.

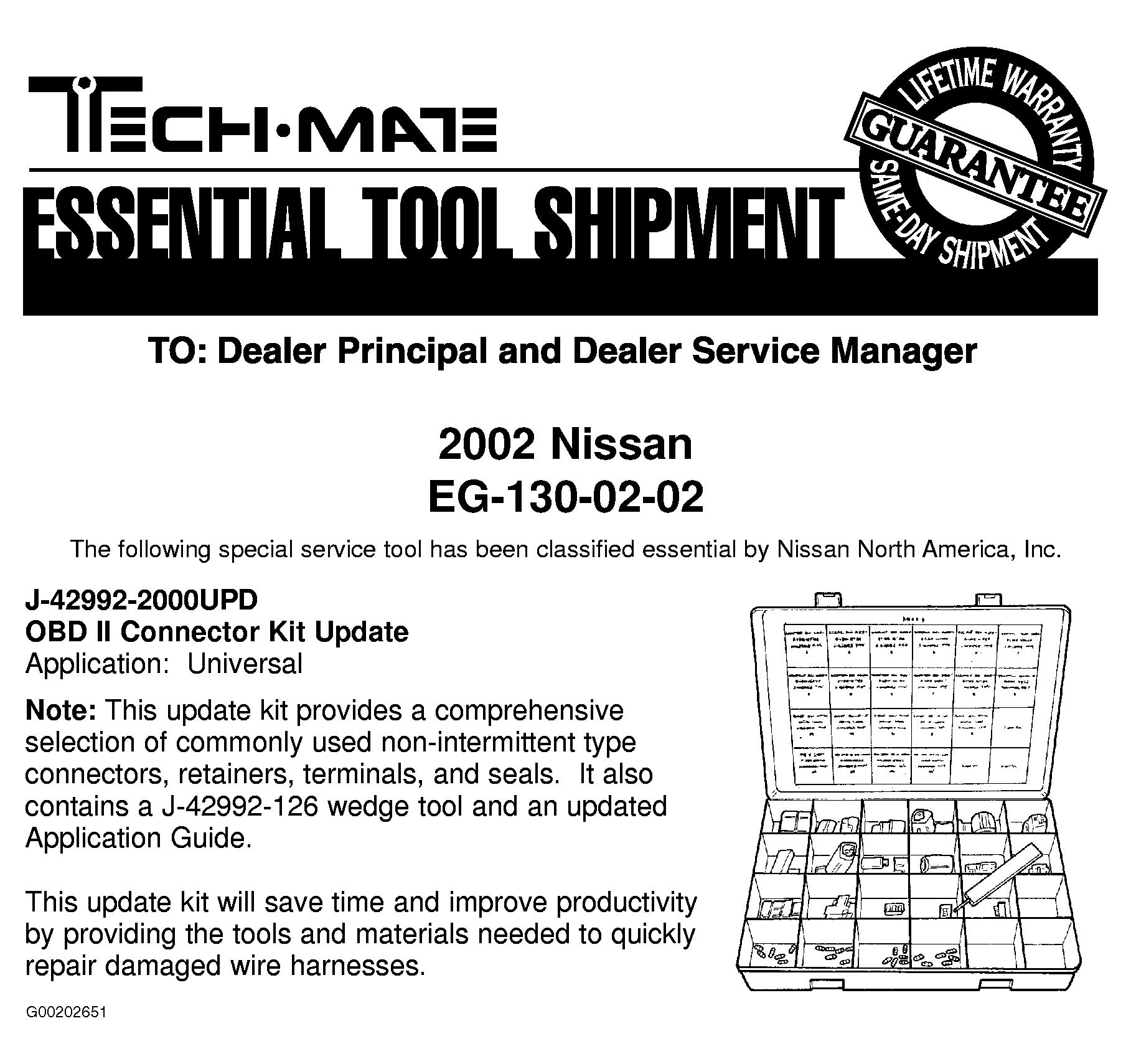

Fig 2: Essential Tool Shipment Flyer

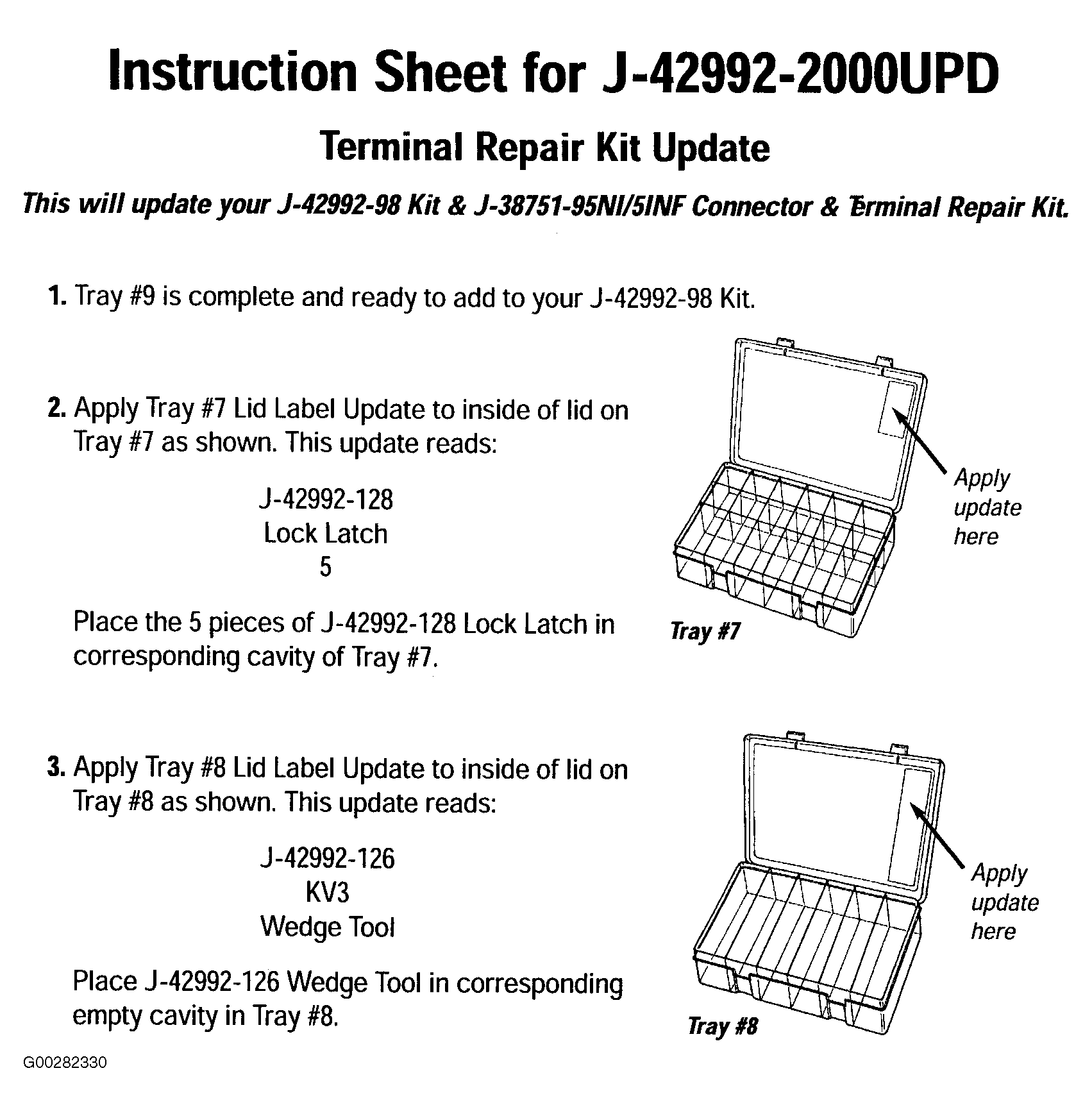

Fig 3: Instruction Sheet for J-42992-2000UPD

CLAIMS INFORMATION

Reference the Tool Catalog Price List in ASIST as outlined. Pro-rate the individual connectors, terminals, retainers and/or seals used per this list, then multiply that pro-rated amount by 40% (dealer mark-up) to arrive at the claimable amount for the repair component(s) actually used. On your warranty claim, use either Part Category 720 ("Engine Electrical") or 791 ("Body Electrical") depending on where the connector(s) repaired were located.
