Gear Components

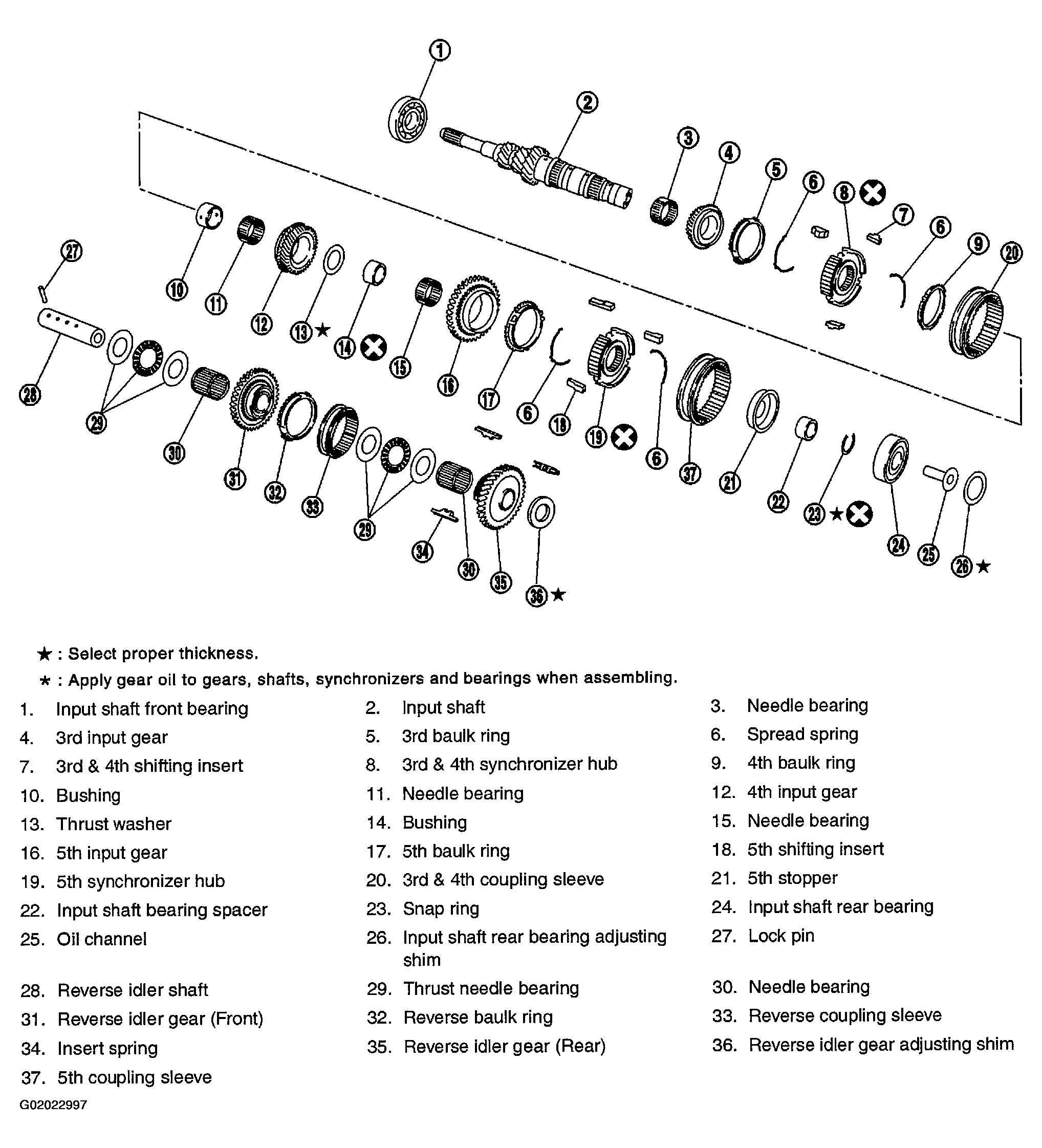

Fig 1: Identifying Transaxle RS5F51A Input Shaft Gear Components
Courtesy of NISSAN MOTOR CO., U.S.A.

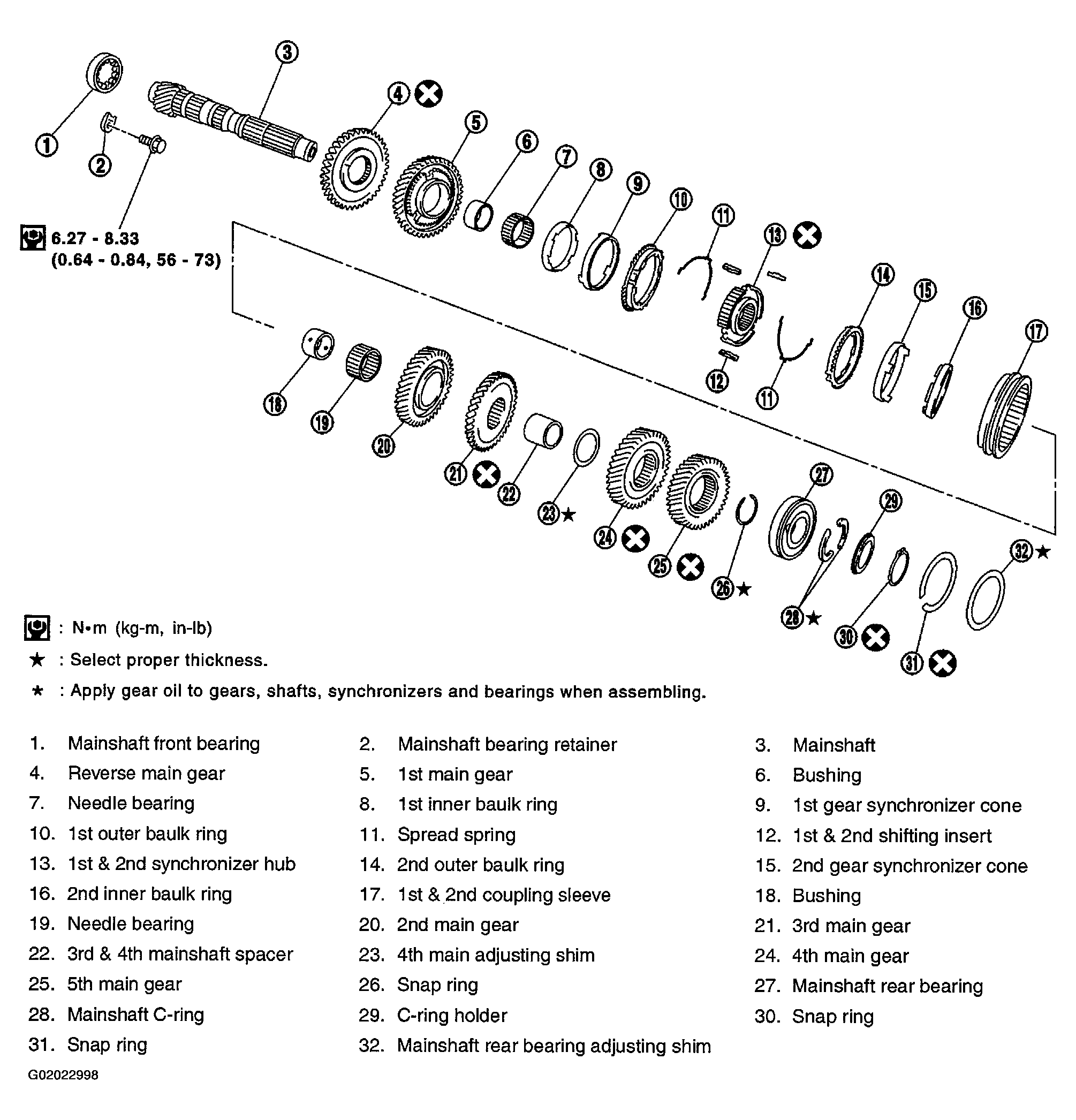

Fig 2: Identifying Transaxle RS5F51A Main Shaft Gear Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
