Automatic Transaxle Re4F03B
›
High Clutch
›
Components
High Clutch: Components

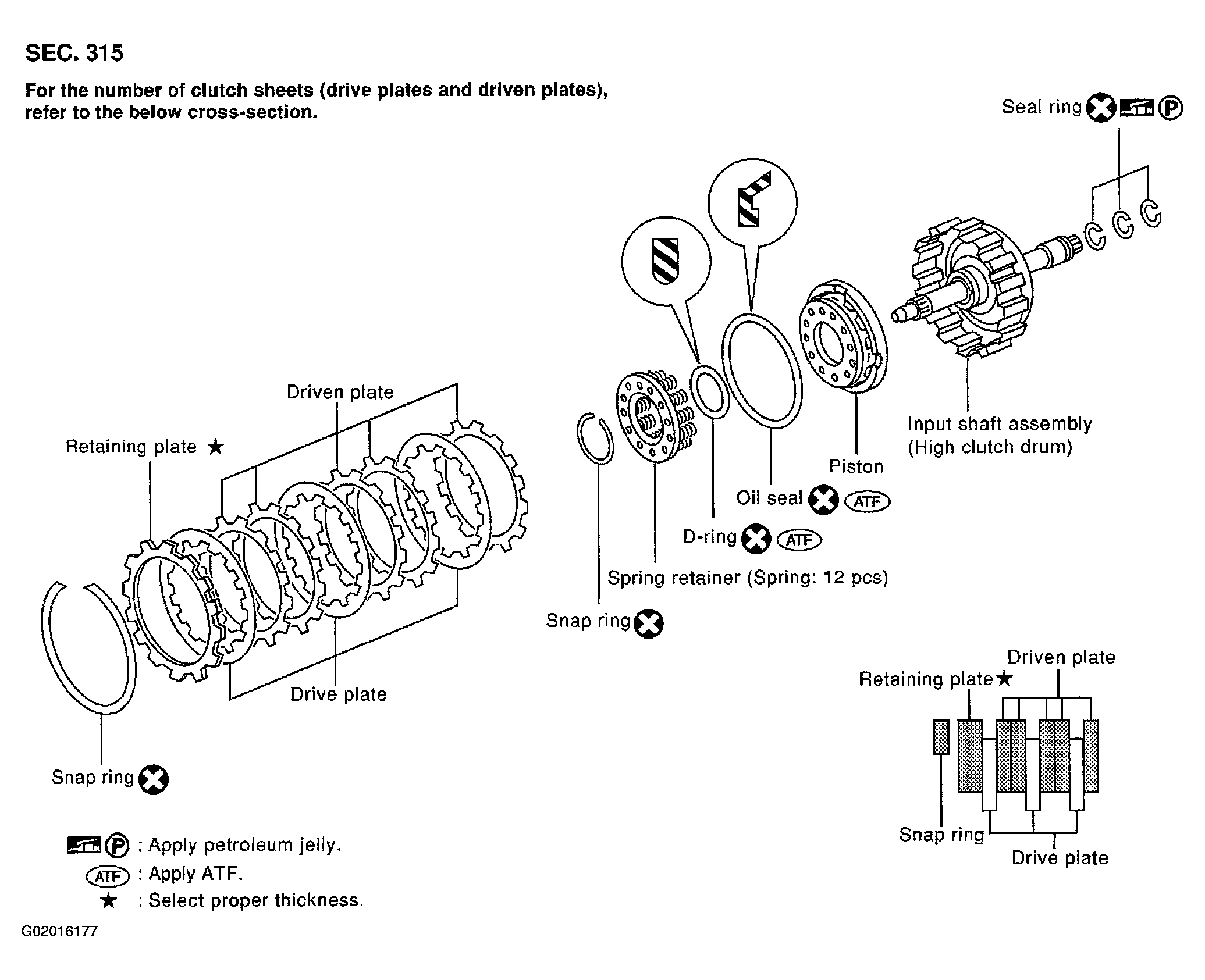

Fig 1: Exploded View Of High Clutch Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
