Automatic Transaxle Re4F03B
›
Manual Shaft
›
Components
Manual Shaft: Components

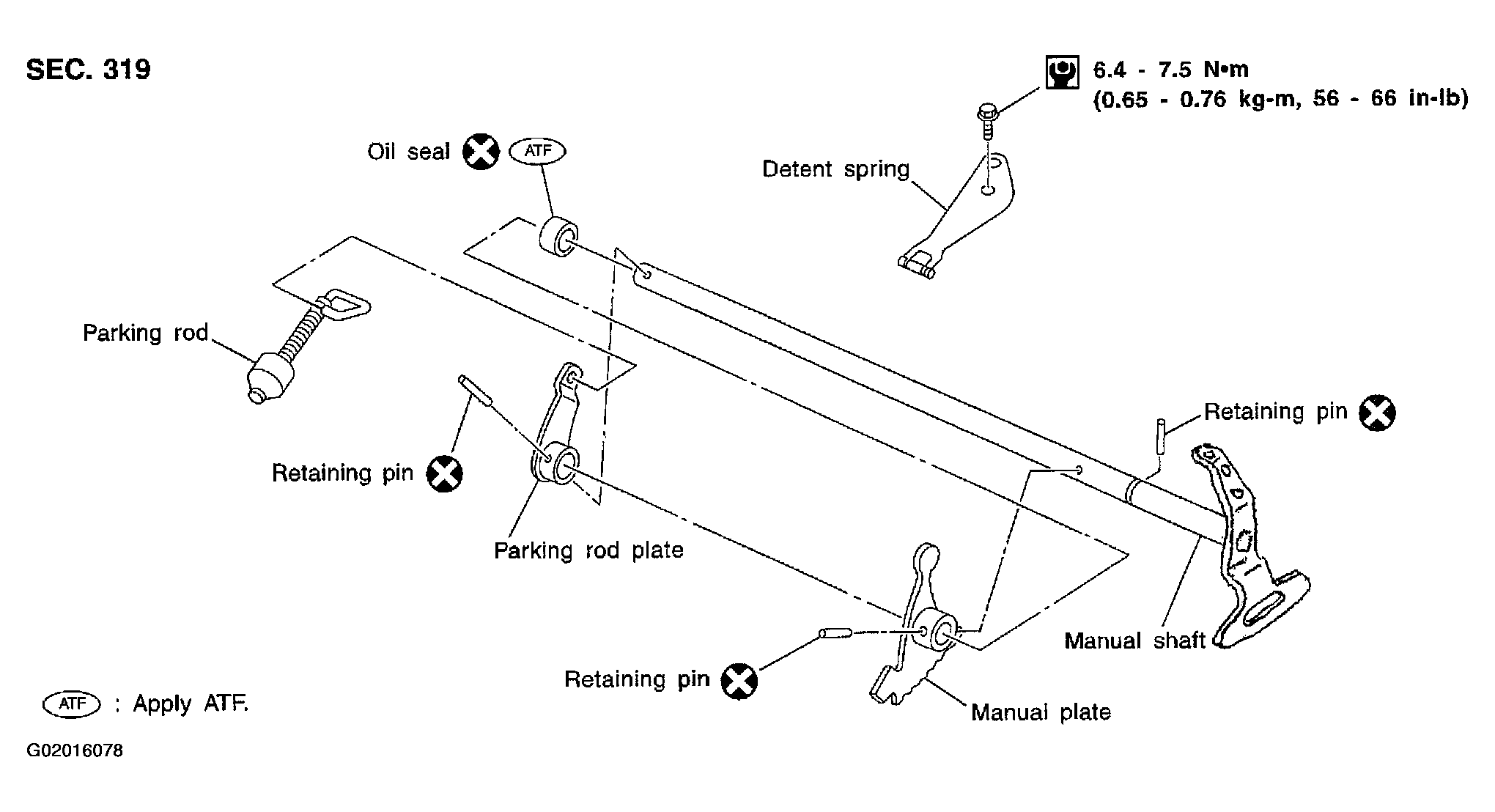

Fig 1: Manual Shaft Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
