Revolution Sensor Replacement

  1. Disconnect revolution sensor harness connector.

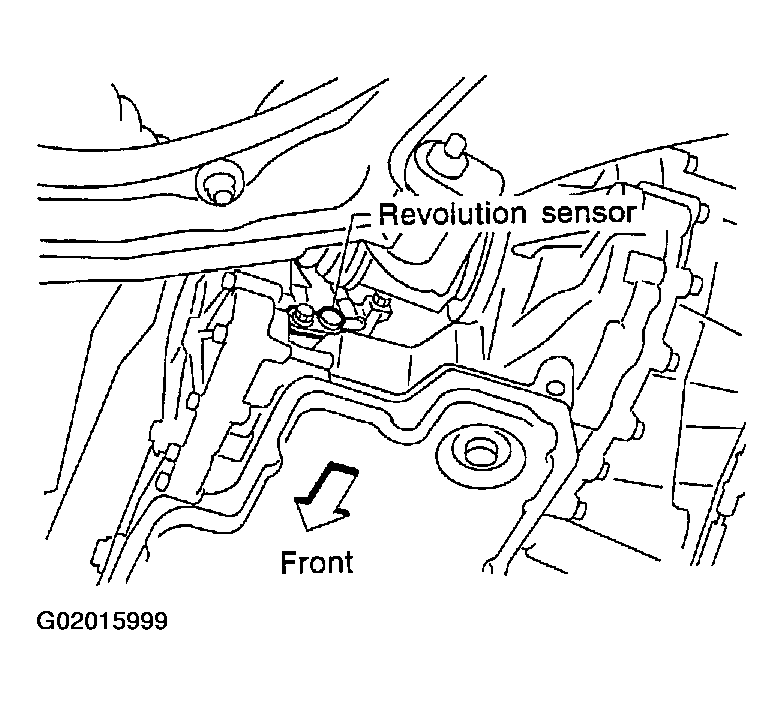

    Fig 1: Disconnecting Revolution Sensor Harness Connector
    G02015999Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove harness bracket from A/T.
  3. Remove revolution sensor from A/T.
  4. Reinstall any part removed.

    Always use new sealing parts  .
