BCM (Body Control Module)
›
Schematic
›
Items Of Each Part
Items Of Each Part

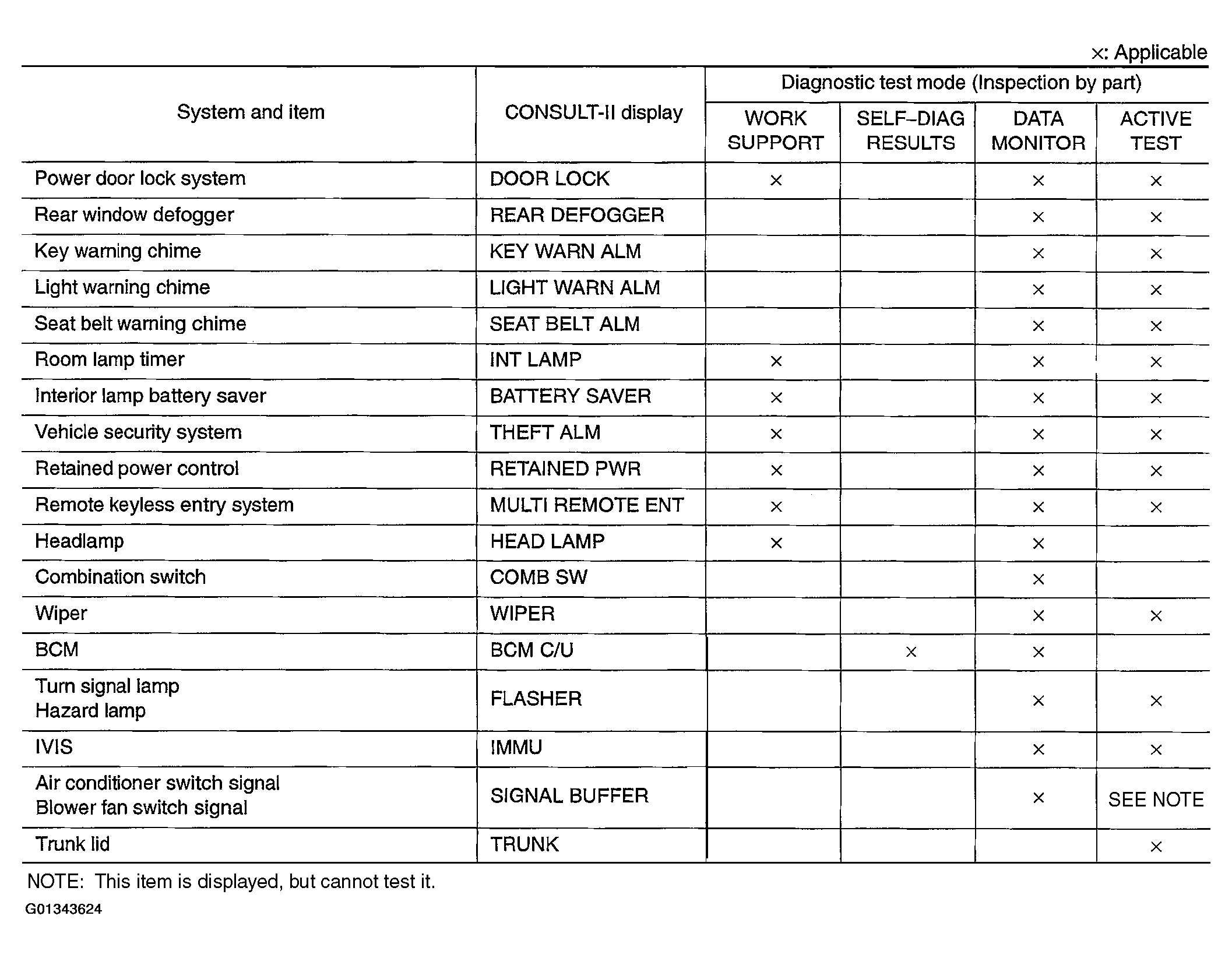

Fig 1: Identifying Diagnostic Test Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
