CAN Communication Unit: Notes

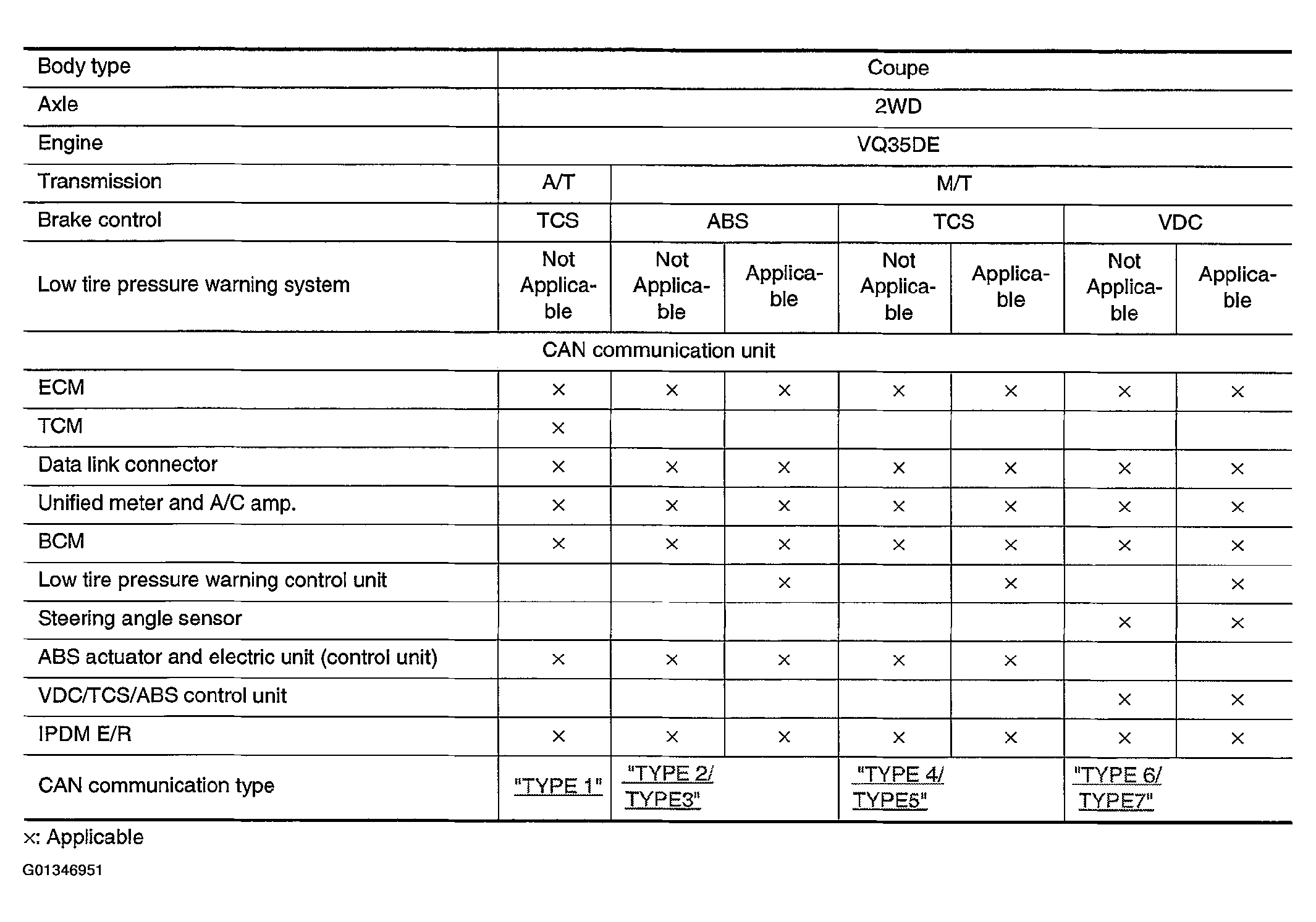

Fig 1: Can Communication Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
