Repair and Diagnosis
›
Brakes
›
Traction Control
›
Abs
›
Trouble Diagnosis
›
CONSULT-II Function
›
Data Monitor Mode
Data Monitor Mode

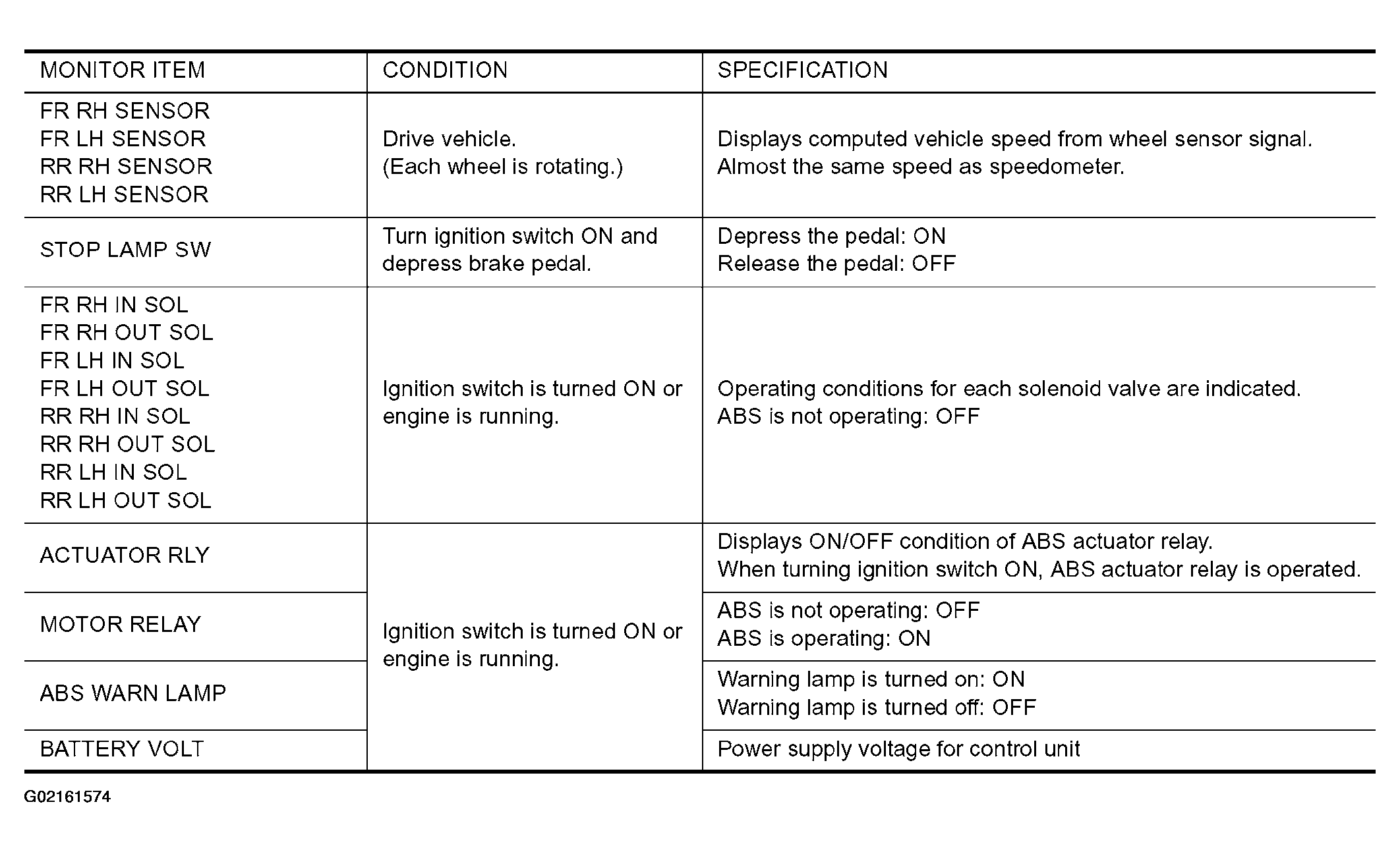

Fig 1: Data Monitor Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
