DTC P0101: Mass Air Flow Sensor
›
CONSULT-II Reference Value In Data Monitor Mode
CONSULT-II Reference Value In Data Monitor Mode
For CONSULT-II reference value in data monitor mode, see
Fig 1
or
Fig 2
.

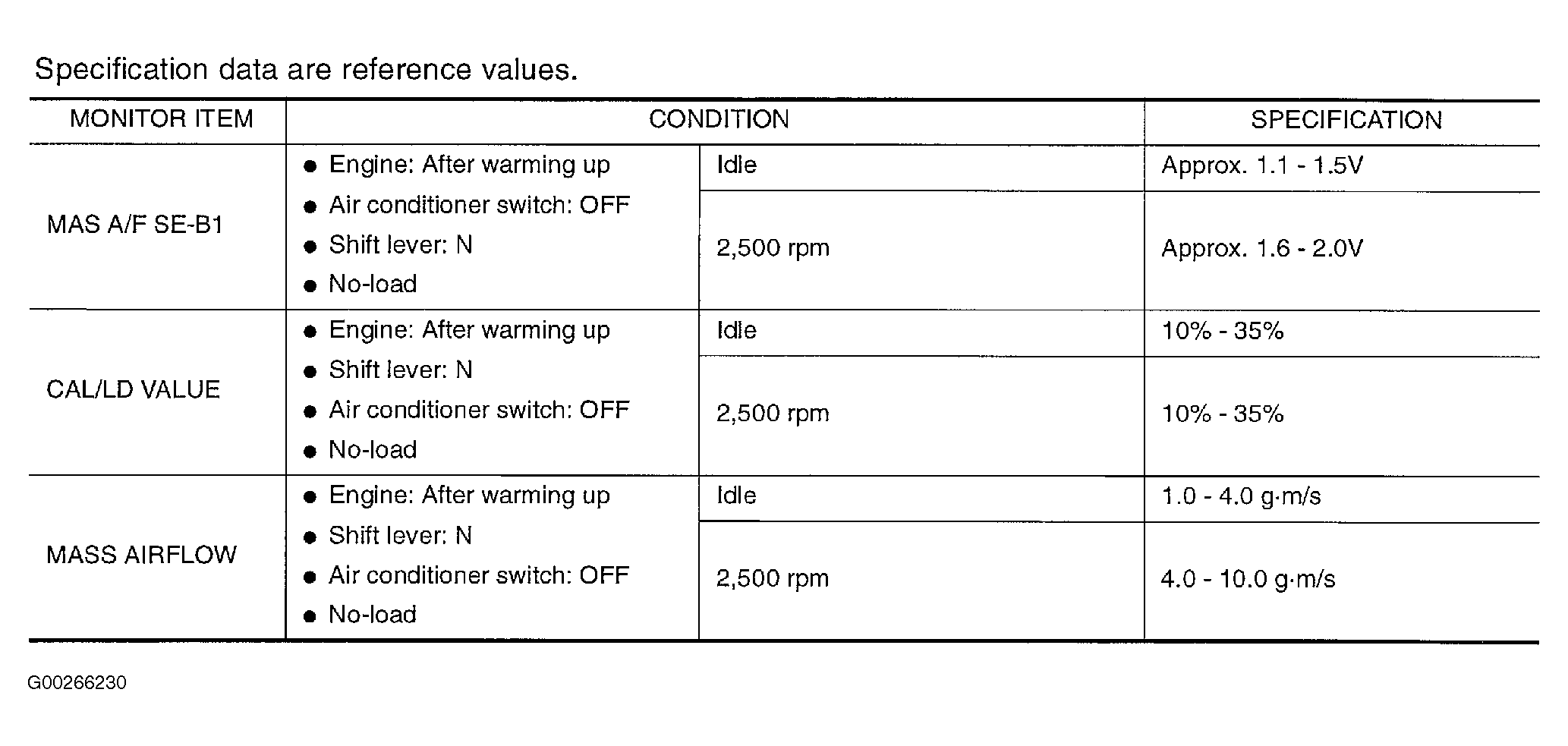

Fig 1: CONSULT-II Reference Value In Data Monitor Mode For MAF Sensor (2.5L)
Courtesy of NISSAN MOTOR CO., U.S.A.

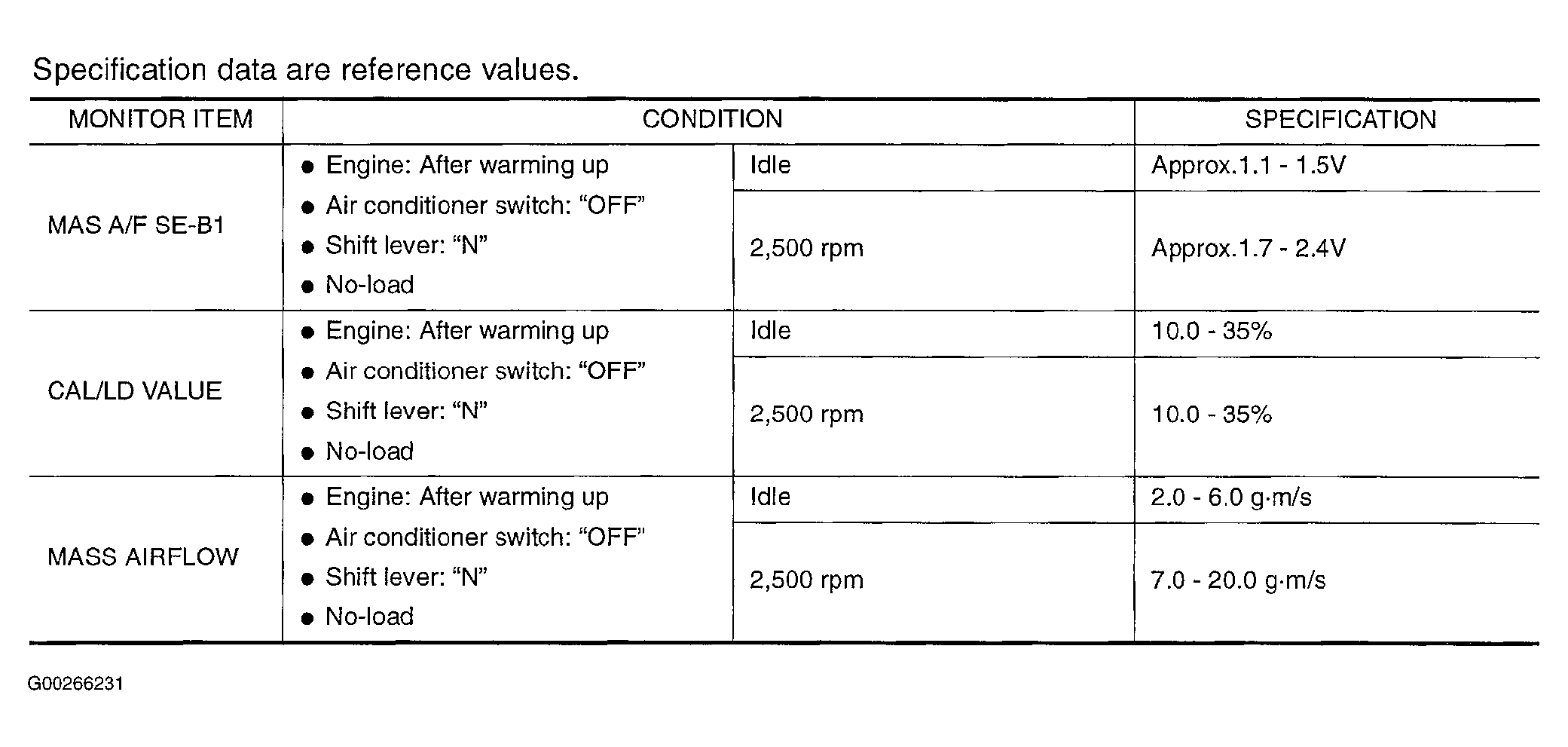

Fig 2: CONSULT-II Reference Value In Data Monitor Mode For MAF Sensor (3.5L)
Courtesy of NISSAN MOTOR CO., U.S.A.
